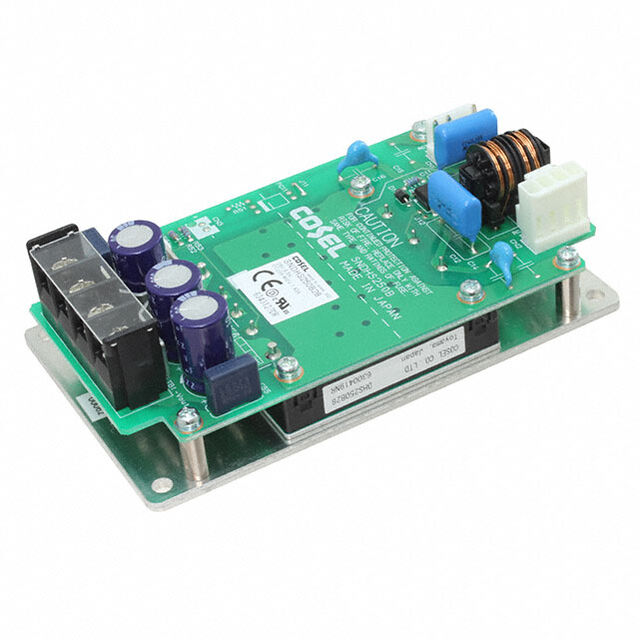

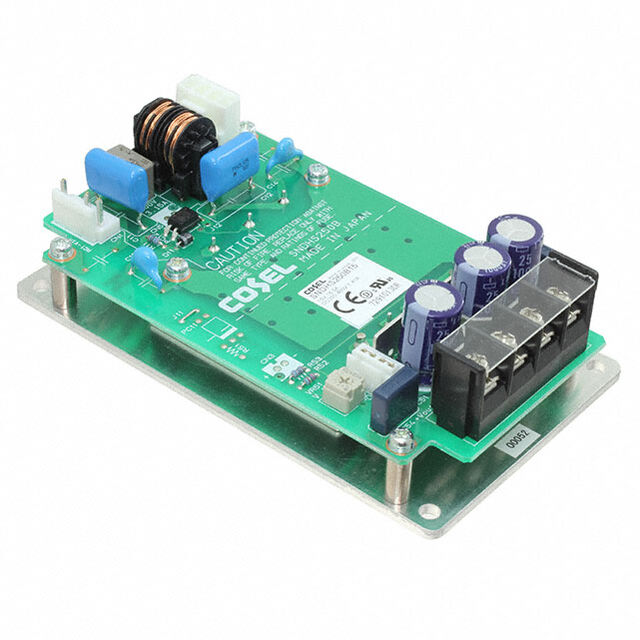

SNDHS250 Series

Catalog

DC/DC CONVERTER 7.5V 248W

Part	Power (Watts)	Voltage - Output 1	Current - Output (Max) [Max]	Number of Outputs	Voltage - Input (Min) [Min]	Mounting Type	Efficiency	Voltage - Input (Max) [Max]	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency

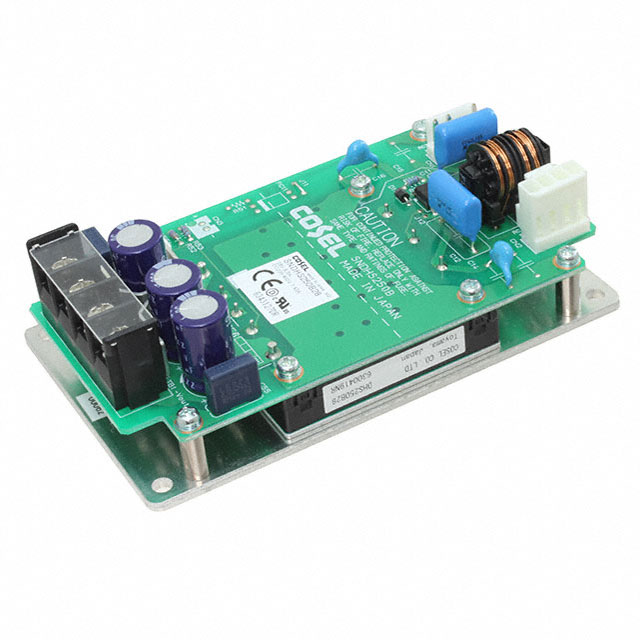

Cosel USA, Inc. SNDHS250B07	248 W	7.5 V	33 A	1	200 V	Chassis Mount	86 %	400 VDC	ITE (Commercial)	2.42 in 61.5 mm	1.75 in 44.5 mm	127 mm	Open Frame	-20 °C	95 °C	CE cURus
Cosel USA, Inc. SNDHS250B12	252 W	12 V	21 A	1	200 V	Chassis Mount	86 %	400 VDC	ITE (Commercial)	2.42 in 61.5 mm	1.75 in 44.5 mm	127 mm	Open Frame	-20 °C	95 °C	CE cURus
Cosel USA, Inc. SNDHS250B03	165 W	3.3 V	50 A	1	200 V	Chassis Mount	86 %	400 VDC	ITE (Commercial)	2.42 in 61.5 mm	1.75 in 44.5 mm	127 mm	Open Frame	-20 °C	95 °C	CE cURus
Cosel USA, Inc. SNDHS250B05	250 W	5 V	50 A	1	200 V	Chassis Mount	88 %	400 VDC	ITE (Commercial)	2.42 in 61.5 mm	1.75 in 44.5 mm	127 mm	Open Frame	-20 °C	95 °C	CE cURus
Cosel USA, Inc. SNDHS250B24	252 W	24 V	10.5 A	1	200 V	Chassis Mount	86 %	400 VDC	ITE (Commercial)	2.42 in 61.5 mm	1.75 in 44.5 mm	127 mm	Open Frame	-20 °C	95 °C	CE cURus
Cosel USA, Inc. SNDHS250B15	248 W	15 V	16.5 A	1	200 V	Chassis Mount	86 %	400 VDC	ITE (Commercial)	2.42 in 61.5 mm	1.75 in 44.5 mm	127 mm	Open Frame	-20 °C	95 °C	CE cURus
Cosel USA, Inc. SNDHS250B48	250 W	48 V	5.2 A	1	200 V	Chassis Mount	87 %	400 VDC	ITE (Commercial)	2.42 in 61.5 mm	1.75 in 44.5 mm	127 mm	Open Frame	-20 °C	95 °C	CE cURus
