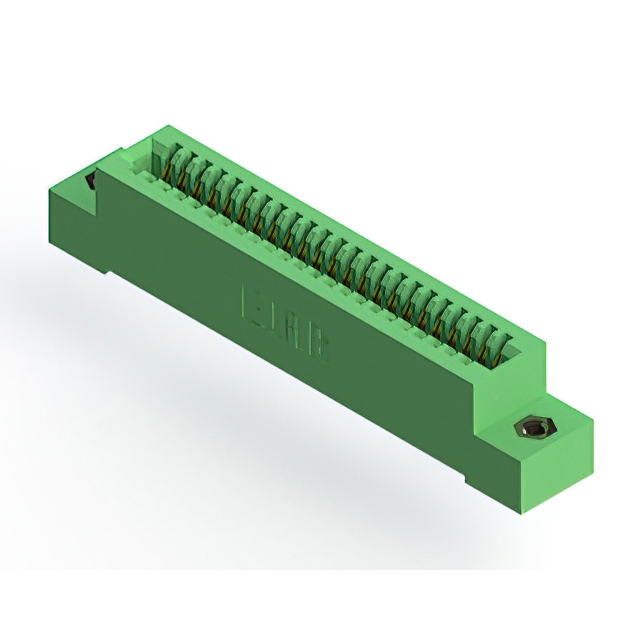

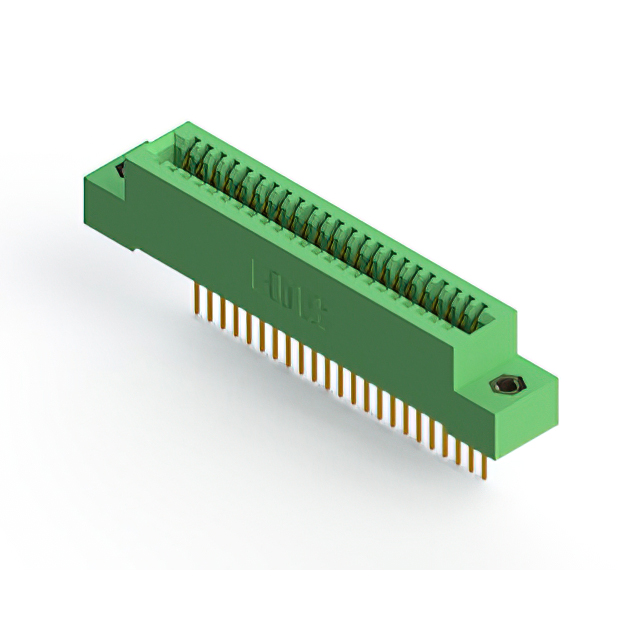

325-023 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 23POS 0.100
| Part | Termination Rows | Material - Insulation | Card Type | Termination | Pitch | Pitch | Number of Positions | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Gender | Color | Number of Positions/Bay/Row | Card Thickness | Card Thickness | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Contact Material | Read Out | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Wire Wrap | 0.1 " | 2.54 mm | 23 | 1 | -65 ░C | 125 °C | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | Female | Green | 23 | 3.18 mm | 0.125 in | Through Hole | 0.25 Ám | 10 Áin | Cantilever | Copper Alloy | Single | Gold |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Solder | 0.1 " | 2.54 mm | 23 | 1 | -65 ░C | 125 °C | 4-40 Flush Mount Threaded Insert Top Opening | Female | Green | 23 | 3.18 mm | 0.125 in | Through Hole | 0.25 Ám | 10 Áin | Cantilever | Copper Alloy | Single | Gold | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Wire Wrap | 0.1 " | 2.54 mm | 23 | 1 | -65 ░C | 125 °C | Flush Mount M3 Threaded Insert Top Opening | Female | Green | 23 | 3.18 mm | 0.125 in | Through Hole | 0.25 Ám | 10 Áin | Cantilever | Copper Alloy | Single | Gold | ||
EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Solder | 0.1 " | 2.54 mm | 23 | 1 | -65 ░C | 125 °C | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | Female | Green | 23 | 3.18 mm | 0.125 in | Through Hole | 0.25 Ám | 10 Áin | Cantilever | Copper Alloy | Single | Gold |
