GBC31D Series

Catalog

CONN HEADER SMD 62POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Connector Type	Insulation Height	Insulation Height	Contact Material	Termination	Number of Positions Loaded	Insulation Color	Contact Length - Mating	Contact Length - Mating	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Contact Finish - Post	Material Flammability Rating	Mounting Type	Contact Type	Contact Shape	Fastening Type	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Shrouding	Number of Rows [custom]

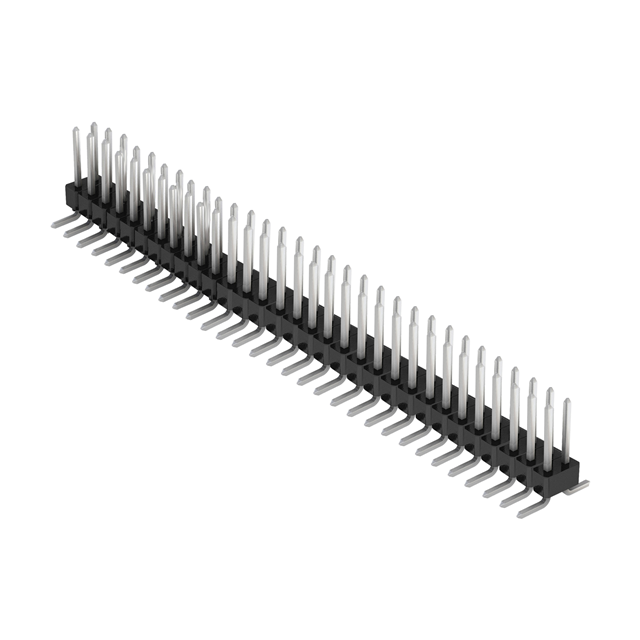

Sullins Connector Solutions GBC31DABN-M30	2.54 µm	100 µin	62	Header Breakaway	0.1 in	2.54 mm	Phosphor Bronze	Solder	All	Black	0.23 in	5.84 mm	Board to Board Cable	0.1 in	2.54 mm	Nylon 9T Polyamide (PA9T)	Tin	UL94 V-0	Surface Mount	Male Pin	Square	Push-Pull	Gold	150 °C	-65 ░C	0.25 µm	10 µin	0.1 "	2.54 mm	3 A	Unshrouded	2
