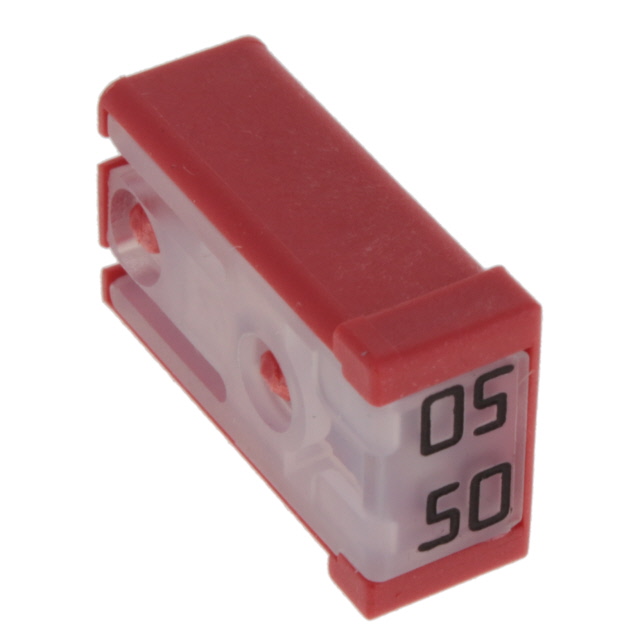

0695050.PXPS Series
Fuse - MCase+ 32VDC Slotted 50A
Manufacturer: Littelfuse/Commercial Vehicle Products
Catalog
Fuse - MCase+ 32VDC Slotted 50A
Beta
⌘K
Fuse - MCase+ 32VDC Slotted 50A
Fuse - MCase+ 32VDC Slotted 50A
Fuse - MCase+ 32VDC Slotted 50A
| Part | Color | Operating Temperature [Max] | Operating Temperature [Min] | Fuse Type | Current Rating (Amps) | Breaking Capacity @ Rated Voltage | Package / Case | Response Time | Approval Agency | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Voltage Rating - DC | Mounting Type | Melting I²t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | Red | 125 °C | -40 °C | Cartridge | 50 A | 1 kA | Module | Slow Blow | ISO8820-4 SAE 2741 | 0.59 in | 15 mm | 0.24 " | 10.7 mm | 6.2 mm | 0.42 in | 32 V | Surface Mount | 3829 |
