MP2491 Series

Catalog

EVALUATION BOARD, DC/DC BUCK CONVERTER ROHS COMPLIANT: YES

Part	Supplied Contents	Board Type	Outputs and Type	Outputs and Type	Contents	Utilized IC / Part	Voltage - Output	Main Purpose	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Frequency - Switching	Current - Output	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Min/Fixed) [Min]	Voltage - Output (Max) [Max]	Output Configuration	Voltage - Input (Max) [Max]	Output Type	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Number of Outputs	Voltage - Input (Min) [Min]	Function	Topology	Package / Case

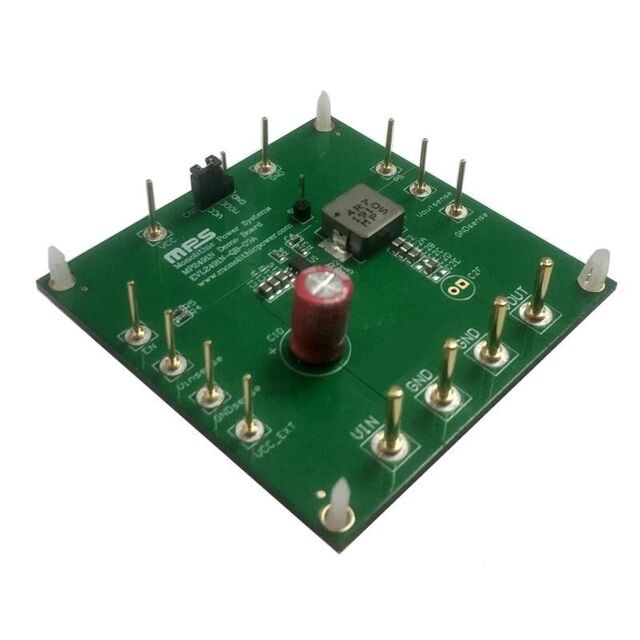

Monolithic Power Systems Inc. EVL2491N-QB-00A	Board(s)	Fully Populated	1	1 Non-Isolated Output Non-Isolated	Board(s)	MP2491N	5 V	DC/DC Step Down	Buck	32 VDC	16 V	540 kHz	6 A
Monolithic Power Systems Inc. MP2491NGQB-P												540 kHz	6 A	Surface Mount	-40 C	125 °C	0.5 V	30 V	Positive	32 V	Adjustable	13-QFN	2.5	3	1	4 V	Step-Down	Buck	13-PowerVFQFN
Monolithic Power Systems Inc. MP2491NGQB-Z												540 kHz	6 A	Surface Mount	-40 C	125 °C	0.5 V	30 V	Positive	32 V	Adjustable	13-QFN	2.5	3	1	4 V	Step-Down	Buck	13-PowerVFQFN
Monolithic Power Systems Inc. MP2491CGQB-P												490 kHz	6 A	Surface Mount	-40 C	125 °C	0.5 V	30 V	Positive	32 V	Adjustable	13-QFN	2.5	3	1	4 V	Step-Down	Buck	13-PowerVQFN
