G-ESIS-M50 Series

Catalog

CABLE GLAND 23-35MM M50 POLYAMID

Part	Material	Type	Thread Size	Ingress Protection	Color	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]

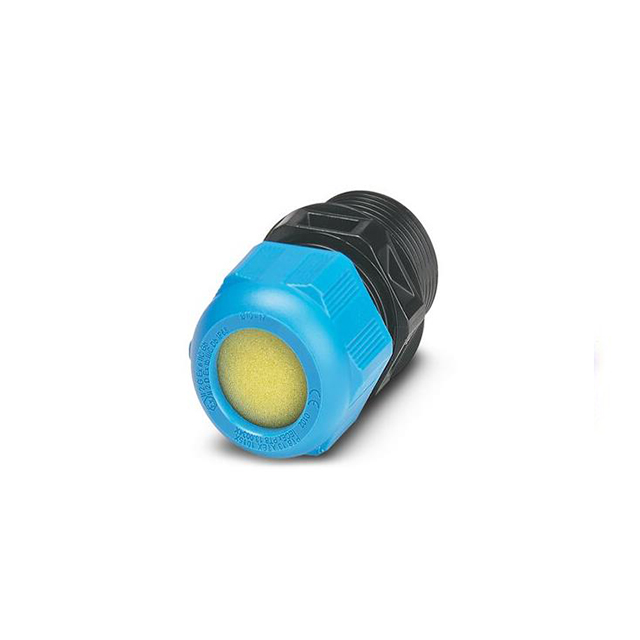

Phoenix Contact 1415121	Polyamide (PA) Nylon	Cable Gland	M50	IP66 IP68	Black Blue	-40 C	75 ░C	Seal	0.709 in	18.01 mm	0.906 "	23 mm	35 mm	1.378 in

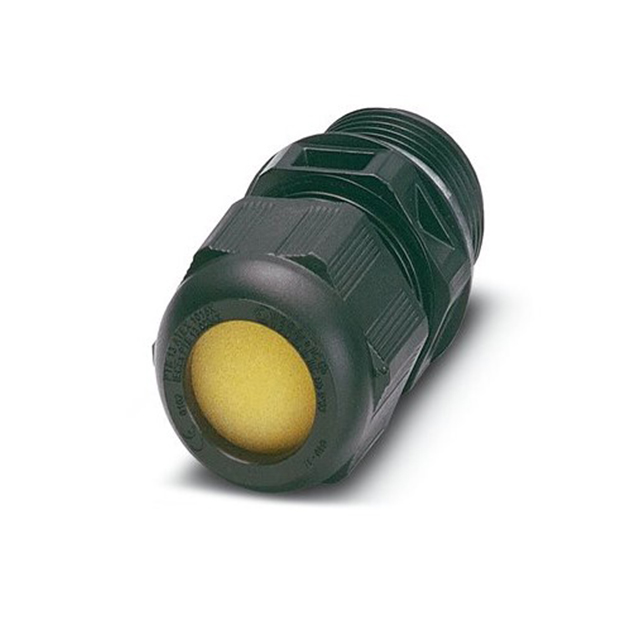

Phoenix Contact 1415112	Polyamide (PA) Nylon	Cable Gland	M50	IP66 IP68	Black	-40 C	75 ░C	Seal	0.709 in	18.01 mm	0.906 "	23 mm	35 mm	1.378 in

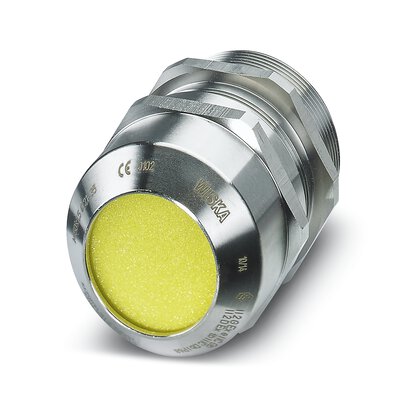

Phoenix Contact 1415146	Brass Nickel Plated	Cable Gland	M50	IP66 IP68	Silver	-40 C	75 ░C	O-Ring Seal	0.591 in	15 mm	0.827 in	21 mm	35 mm	1.378 in
