9G1224 Series

Catalog

DC AXIAL FAN, 137CU.FT/MIN, BALL, 120MM ROHS COMPLIANT: YES

Part	Lifetime @ Temp.	Material - Frame	Material - Blade	Current Rating (Amps)	Approval Agency	Static Pressure	Static Pressure	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Noise	Air Flow	Air Flow	Power (Watts)	Weight [custom]	Weight [custom]	Width [y]	Bearing Type	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Fan Type	Voltage - Rated	Features	Voltage Range [Max]	Voltage Range [Min]	Weight	Weight	Static Pressure

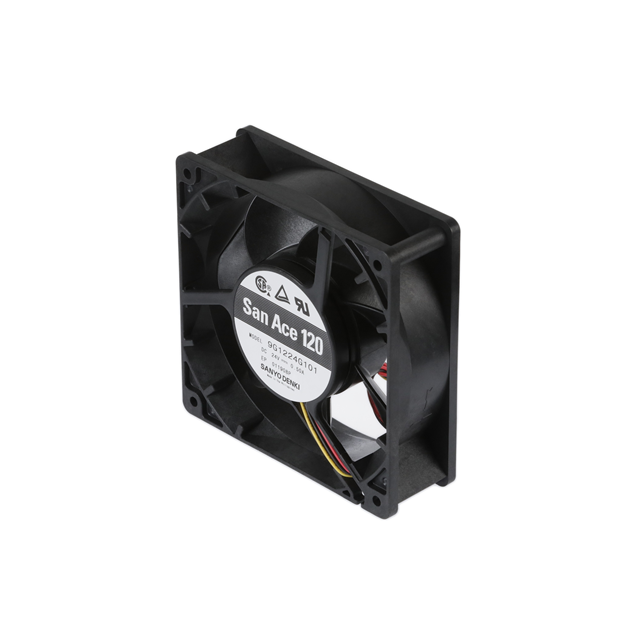

Sanyo Denki America Inc. 9G1224G101	40000 Hrs	Plastic	Plastic	0.5 A	CSA TUV UL	0.542 in H2O	135 Pa	Square	119 mm	119 mm	49 dB	3.84 m³/min	137 CFM	12 W	0.728 lb	330.22 g	38 mm	Ball	3600 RPM	-20 ░C	70 °C	3 Wire Leads	Tubeaxial	24 VDC	Speed Sensor (Tach)

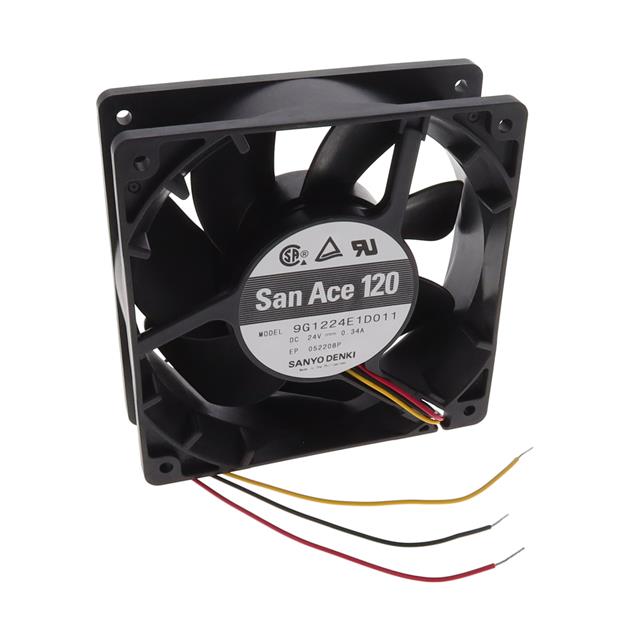

Sanyo Denki America Inc. 9G1224E1D011	40000 Hrs	Plastic	Plastic	0.34 A	CSA TUV UL	0.401 in H2O	100 Pa	Square	119 mm	119 mm	46 dB(A)	3.3 m³/min	118 CFM	8.16 W	0.728 lb	330.22 g	38 mm	Ball	3100 RPM	-20 ░C	70 °C	3 Wire Leads	Tubeaxial	24 VDC	Locked Rotor Sensor
Sanyo Denki America Inc. 9G1224H102	40000 Hrs	Plastic	Plastic	0.22 A	CSA TUV UL	0.283 in H2O	70.5 Pa	Square	119 mm	119 mm	39 dB(A)	2.77 m³/min	99 CFM	5.28 W	0.728 lb	330.22 g	38 mm	Ball	2600 RPM	-20 ░C	70 °C	2 Wire Leads	Tubeaxial	24 VDC		27.6 VDC	14
Sanyo Denki America Inc. 9G1224F101	40000 Hrs	Plastic	Plastic		CSA TUV UL	0.283 in H2O	70.5 Pa	Square	119 mm	119 mm	36 dB	2.44 m³/min	87 CFM	3.84 W	0.728 lb	330.22 g	38 mm	Ball	2280 RPM	-20 ░C	70 °C	3 Wire Leads	Tubeaxial	24 VDC	Speed Sensor (Tach)	27.6 VDC	14
Sanyo Denki America Inc. 9G1224G102	40000 Hrs	Plastic	Plastic	0.5 A	CSA TUV UL	0.542 in H2O	135 Pa	Square	119 mm	119 mm	49 dB	3.84 m³/min	137 CFM	12 W	0.728 lb	330.22 g	38 mm	Ball	3600 RPM	-20 ░C	70 °C	2 Wire Leads	Tubeaxial	24 VDC

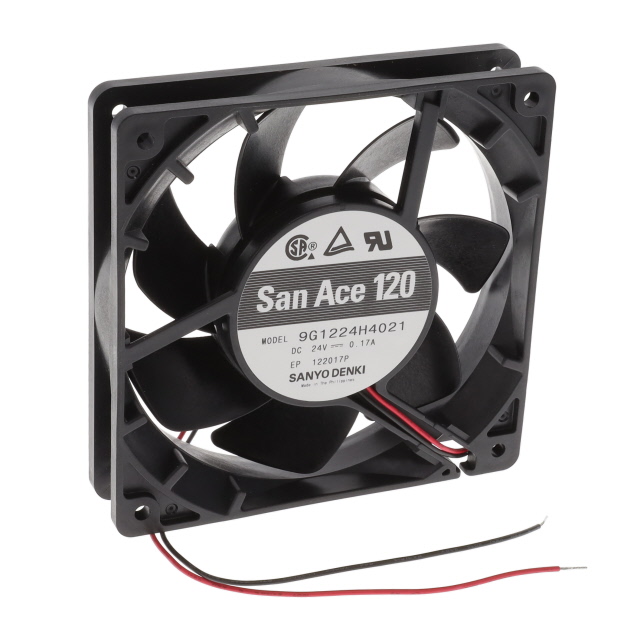

Sanyo Denki America Inc. 9G1224H4021	40000 Hrs	Plastic	Plastic	0.17 A	CSA TUV UL		0.257 in H2O	Square	119 mm	119 mm	40 dB(A)	2.46 mł/min	88 CFM				25 mm	Ball	2850 RPM	-20 ░C	70 °C	2 Wire Leads	Tubeaxial	24 VDC		27.6 VDC	12	239.95 g	0.529 lb	64 Pa
Sanyo Denki America Inc. 9G1224M101	40000 Hrs	Plastic	Plastic	110 mA	CSA TUV UL	0.159 in H2O	39.6 Pa	Square	119 mm	119 mm	32 dB	2.07 mł/min	74 CFM	2.64 W	0.728 lb	330.22 g	38 mm	Ball	1950 RPM	-20 ░C	70 °C	3 Wire Leads	Tubeaxial	24 VDC	Speed Sensor (Tach)	27.6 VDC	14
Sanyo Denki America Inc. 9G1224E4011	40000 Hrs	Plastic	Plastic	0.37 A	CSA TUV UL	0.394 in H2O	98.1 Pa	Square	119 mm	119 mm	48 dB	3.22 mł/min	115 CFM	8.88 W			25 mm	Ball	3650 RPM	-20 ░C	70 °C	3 Wire Leads	Tubeaxial	24 VDC	Speed Sensor (Tach)			239.95 g	0.529 lb
Sanyo Denki America Inc. 9G1224H101	40000 Hrs	Plastic	Plastic	0.22 A	CSA TUV UL	0.283 in H2O	70.5 Pa	Square	119 mm	119 mm	39 dB(A)	2.77 m³/min	99 CFM	5.28 W	0.728 lb	330.22 g	38 mm	Ball	2600 RPM	-20 ░C	70 °C	3 Wire Leads	Tubeaxial	24 VDC	Speed Sensor (Tach)	27.6 VDC	14
Sanyo Denki America Inc. 9G1224M401	40000 Hrs	Plastic	Plastic		CSA TUV UL	0.124 in H2O	30.9 Pa	Square	119 mm	119 mm	29 dB(A)	1.65 mł/min	59 CFM	1.92 W			25 mm	Ball	1950 RPM	-20 ░C	70 °C	3 Wire Leads	Tubeaxial	24 VDC	Speed Sensor (Tach)			239.95 g	0.529 lb
