MMC5983 Series
Manufacturer: Memsic Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
DEV BOARD FOR MMC5983MA
| Part | Supplied Contents | Sensing Range (Max) | Sensing Range (Min) | Contents | Interface | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Utilized IC / Part | Sensor Type | Grade | Resolution | Bandwidth | Axis | Technology | Output Type | Package Width | Package Name | Package Length | Qualification | Package / Case | Current - Supply (Max) | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

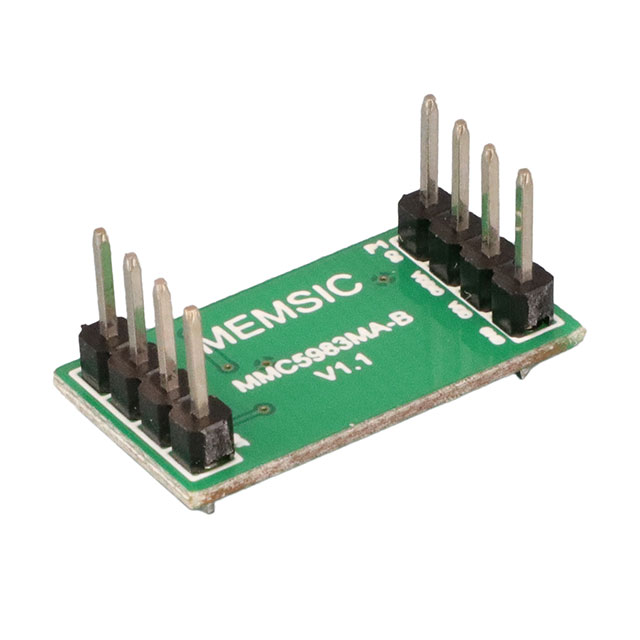

 Memsic Inc. | Board(s) | 8 G | -8 G | Board | I2C Serial SPI | 2.8 V | 3.6 V | MMC5983 | Magnetic Magnetometer | |||||||||||||||

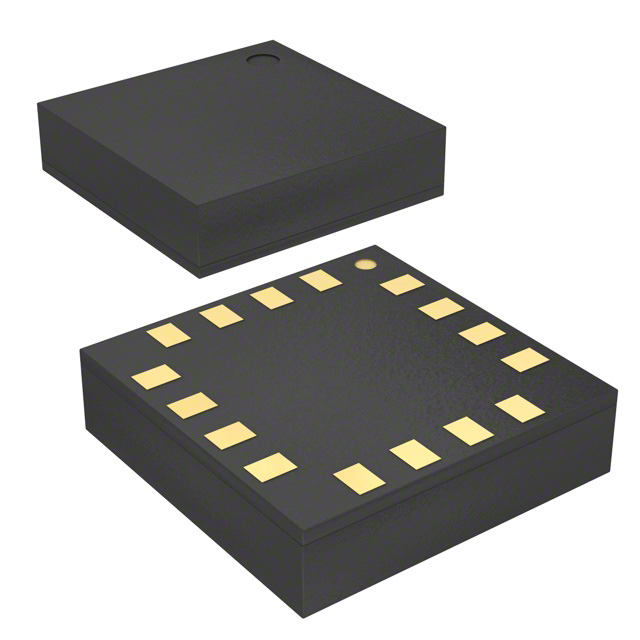

 Memsic Inc. | 0.8 mT | -0.8 mT | 2.8 V | 3.5 V | Automotive | 18 b | 1 kHz | X Y Z | Magnetoresistive | I2C SPI | 3 mm | 16-LGA | 3 mm | AEC-Q100 | 16-VFLGA | 450 µA | Surface Mount | -40 °C | 105 °C |
