SSF-LXH25780 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
LED LGT BAR 7X2.5MM RA GRN
| Part | Lens Style | Mounting Type | Lens Type | Millicandela Rating | Current | Voltage Rating | Wavelength - Peak | Color | Viewing Angle | Configuration | Lens Size [x] | Lens Size [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | Rectangle with Flat Top | Right Angle Through Hole | Diffused Tinted | 50 mcd | 20 mA | 1.7 V | 660 nm | Red | 110 ° | Bar - Single SIP | 7 mm | 2.5 mm |

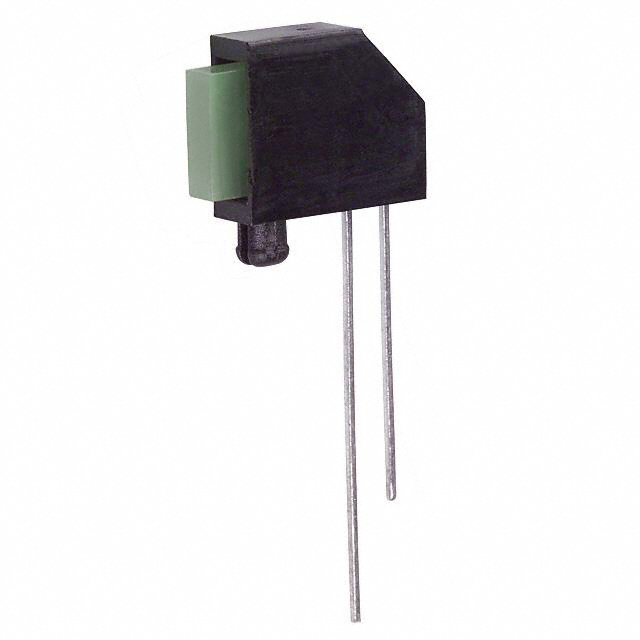

 Lumex Opto/Components Inc. | Rectangle with Flat Top | Right Angle Through Hole | Diffused Tinted | 9 mcd | 20 mA | 565 nm | Green | 110 ° | Bar - Single SIP | 7 mm | 2.5 mm | |

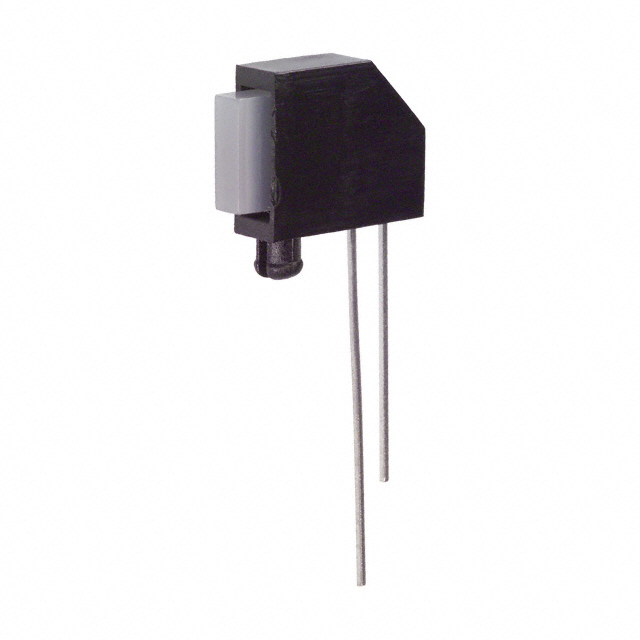

 Lumex Opto/Components Inc. | Rectangle with Flat Top | Right Angle Through Hole | Diffused White | 20 mA | 2 V 2.2 V | Green Red | 110 ° | Bar - Single SIP | 7 mm | 2.5 mm | ||
 Lumex Opto/Components Inc. | Rectangle with Flat Top | Right Angle Through Hole | Diffused White | 25 mA 30 mA | 2 V 2.2 V | 565 nm 635 nm | Green Red | 110 ° | Bar - Single SIP | 7 mm | 2.5 mm | |

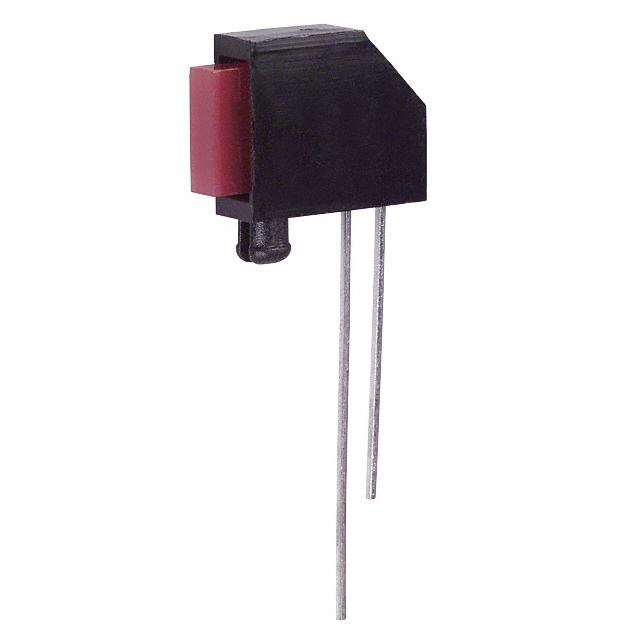

Lumex Opto/Components Inc. | Rectangle with Flat Top | Right Angle Through Hole | Diffused Tinted | 15 mcd | 20 mA | 2 V | 635 nm | Red | 110 ° | Bar - Single SIP | 7 mm | 2.5 mm |
