DSP568 Series

Catalog

DIGITAL SIGNAL PROCESSOR, 16-BIT

Part	Program Memory Type	Package / Case	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Core Size (Bit Width)	Oscillator Type	Number of I/O	RAM Size Width	RAM Size Depth	Mounting Type	Speed	Peripherals	Connectivity	Package Length	Package Name	Package Width	Core Processor	Program Memory Width	Program Memory Size	Program Memory Depth	Operating Temperature (Max)	Operating Temperature (Min)
NXP USA Inc. DSP56854FGE	SRAM	128-LQFP	1.62 V	1.98 V	16 Bit	External	41	16 bit	16 K	Surface Mount	120 MHz	DMA POR WDT	EBI EMI SCI SPI SSI	14 mm	128-LQFP	20 mm	56800E	16	32 KB	16 K	85 °C	-40 °C

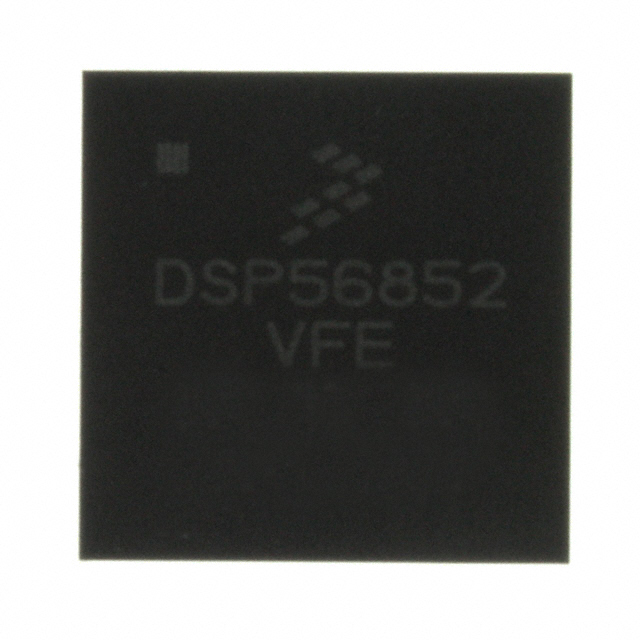

NXP USA Inc. DSP56852VFE	SRAM	81-LFBGA	1.8 V	3.3 V	16 Bit	Internal	11	16 bit	4 K	Surface Mount	120 MHz	POR WDT	EBI EMI SCI SPI SSI	8 mm	81-MAPBGA	8 mm	56800E	16	12 KB	6 K	85 °C	-40 °C
NXP USA Inc. DSP56854FGE	SRAM	128-LQFP	1.62 V	1.98 V	16 Bit	External	41	16 bit	16 K	Surface Mount	120 MHz	DMA POR WDT	EBI EMI SCI SPI SSI	14 mm	128-LQFP	20 mm	56800E	16	32 KB	16 K	85 °C	-40 °C
NXP USA Inc. DSP56852VFE	SRAM	81-LFBGA	1.8 V	3.3 V	16 Bit	Internal	11	16 bit	4 K	Surface Mount	120 MHz	POR WDT	EBI EMI SCI SPI SSI	8 mm	81-MAPBGA	8 mm	56800E	16	12 KB	6 K	85 °C	-40 °C
