395-104 Series
Manufacturer: EDAC Inc.
Beta
⌘K
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
| Part | Termination Rows [custom] | Material - Insulation | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Card Type | Flange Feature | Contact Material | Gender | Number of Rows [custom] | Contact Finish | Pitch | Pitch | Color | Termination | Number of Positions/Bay/Row | Number of Positions | Mounting Type | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

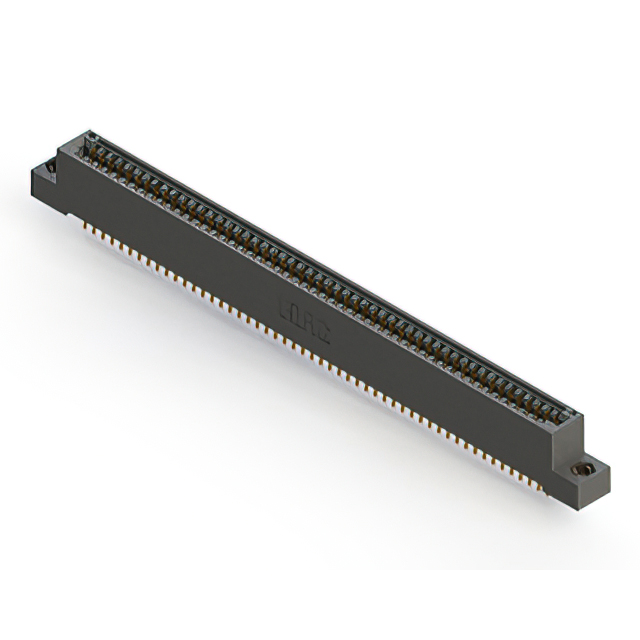

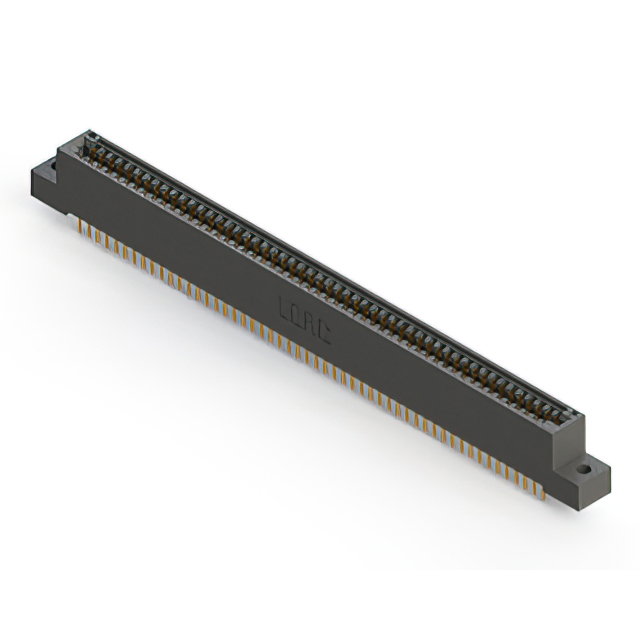

 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Dual | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Female | 2 | Gold | 0.1 " | 2.54 mm | Black | Solder | 52 | 104 | Through Hole | |||

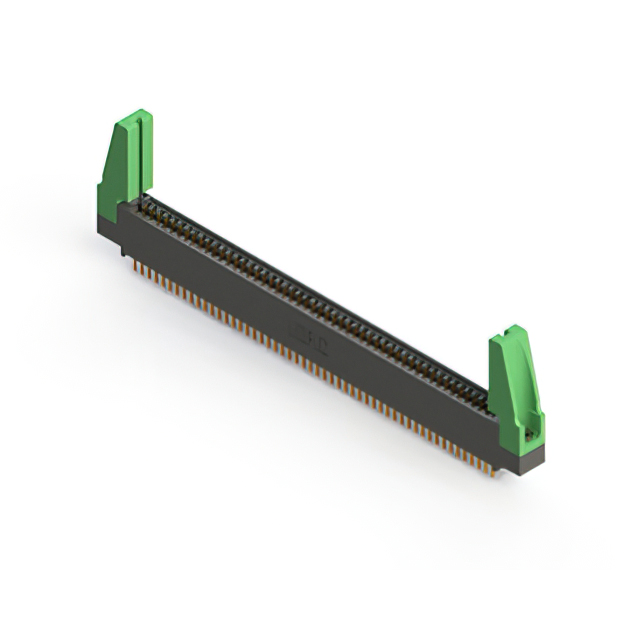

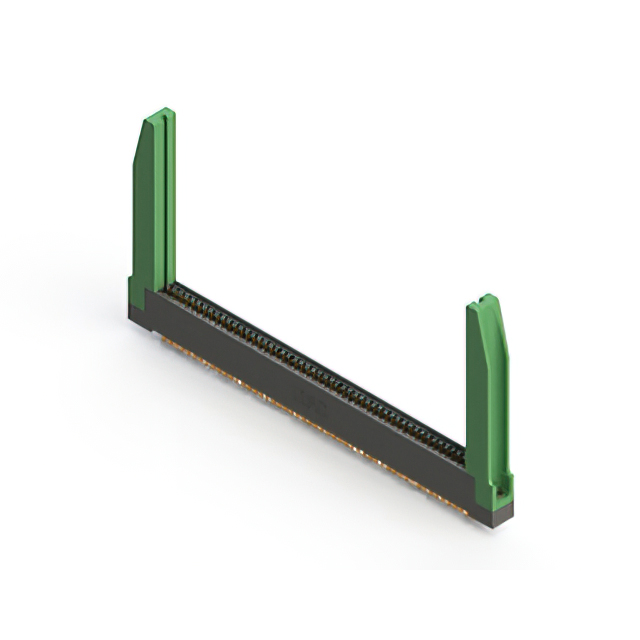

 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Dual | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Female | 2 | Gold | 0.1 " | 2.54 mm | Black | Solder Eyelet(s) | 52 | 104 | Board Edge Straddle Mount | Card Extender Card Guides | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Dual | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | M3 Threaded Insert Top Mount Opening | Copper Alloy | Female | 2 | Gold | 0.1 " | 2.54 mm | Black | Solder | 52 | 104 | Through Hole | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Dual | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Copper Alloy | Female | 2 | Gold | 0.1 " | 2.54 mm | Black | Solder Eyelet(s) | 52 | 104 | Board Edge Straddle Mount | Card Extender | 3.25 mm | 0.128 " | |
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Dual | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | Copper Alloy | Female | 2 | Gold | 0.1 " | 2.54 mm | Black | Solder | 52 | 104 | Right Angle Through Hole | 3.96 mm | 0.156 " | |
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Dual | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Female | 2 | Gold | 0.1 " | 2.54 mm | Black | Solder | 52 | 104 | Through Hole | Card Guides | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Dual | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Copper Alloy | Female | 2 | Gold | 0.1 " | 2.54 mm | Black | Solder | 52 | 104 | Through Hole | 3.25 mm | 0.128 " | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Dual | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | Copper Alloy | Female | 2 | Gold | 0.1 " | 2.54 mm | Black | Solder | 52 | 104 | Through Hole | 3.25 mm | 0.128 " | |
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Dual | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Female | 2 | Gold | 0.1 " | 2.54 mm | Black | Solder | 52 | 104 | Board Edge Straddle Mount | Card Extender | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Dual | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Female | 2 | Gold | 0.1 " | 2.54 mm | Black | Wire Wrap | 52 | 104 | Through Hole | Card Guides |
