NCL30001 Series

LED Driver, High Efficiency, Single Stage, Power Factor Corrected

Catalog

LED Driver, High Efficiency, Single Stage, Power Factor Corrected

Part	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Number of Outputs	Frequency [Min]	Frequency [Max]	Type	Mounting Type	Package / Case	Package / Case [x]	Package / Case [y]	Internal Switch(s)	Topology
ON Semiconductor NCL30001DR2G	16-SOIC	-40 °C	125 ¯C	Lighting	1	20 kHz	250 kHz	AC DC Offline Switcher	Surface Mount	16-SOIC	0.154 in	3.9 mm		Flyback Step-Down (Buck)

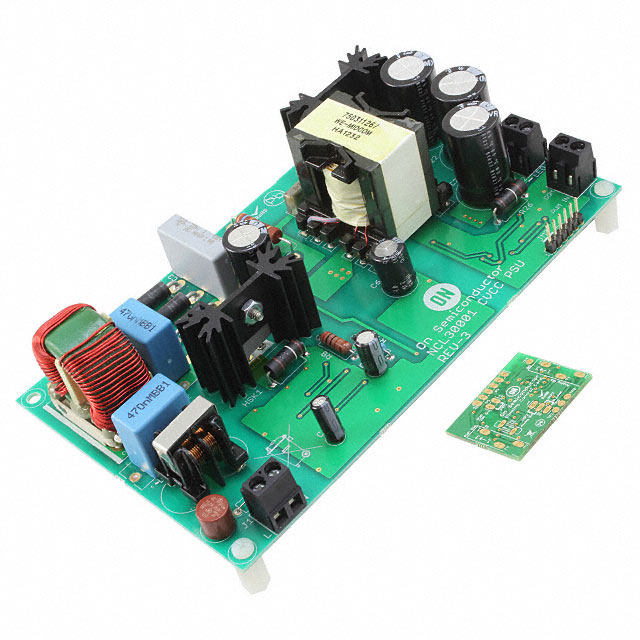

ON Semiconductor NCL30001LEDGEVB

Catalog

LED Driver, High Efficiency, Single Stage, Power Factor Corrected

Key Features

• Adjustable Operating Frequency from 20-250 kHz

• Frequency Jittering

• Brown Out Detector

• Internal 160 msec Fault Timer

• High Accuracy Multiplier

• Voltage Feedforward

• Fixed Frequency Average Current Mode Control

• Independent Latch-off input

Description

The NCL30001 is a switch mode power supply controller intended for medium to high power single stage power factor (PF) corrected isolated flyback LED Drivers. It employs a Continuous Conduction Mode (CCM) control technique to ensure near unity power factor across a wide range of input voltages and output power.
