NRPN012 Series

Catalog

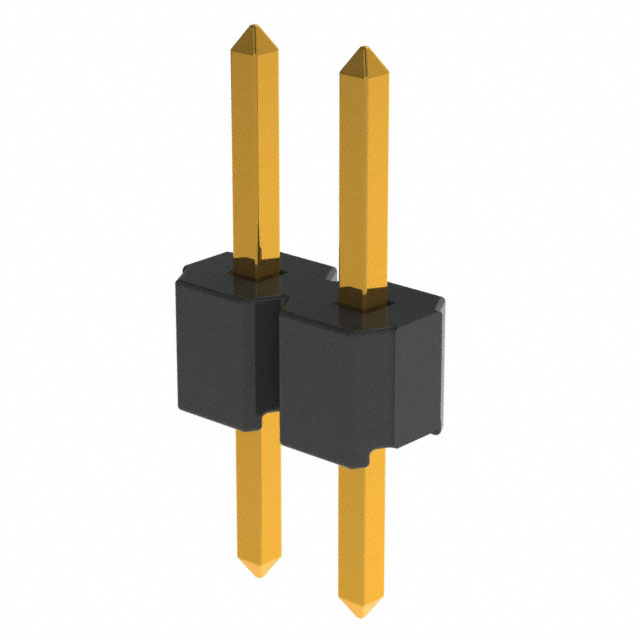

CONN HEADER VERT 2POS

Part	Contact Finish Thickness - Post	Number of Positions	Contact Finish - Mating	Connector Type	Contact Length - Post [custom]	Contact Length - Post	Material Flammability Rating	Fastening Type	Contact Shape	Contact Finish Thickness - Mating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Contact Material	Insulation Material	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length	Contact Type	Voltage Rating	Shrouding	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Termination	Contact Length - Mating	Contact Length - Mating	Insulation Color	Number of Positions Loaded
Sullins Connector Solutions NRPN012PAEN-RC	Flash	2	Gold	Header	0.11 in	2.79 mm	UL94 V-0	Push-Pull	Square	Flash	Gold	-40 C	105 ░C	2	Brass	Nylon 6T Polyamide (PA6T)	2 mm	0.079 in	0.33 in	8.38 mm	Male Pin	150 VDC	Unshrouded	Through Hole	2 mm	0.079 in	Solder	0.141 in	3.6 mm	Black	All
