30HV12N Series

Manufacturer: KEMET

Catalog

CAP CER 1000PF 3KV NP0 RADIAL

Part	Applications	Lead Spacing	Lead Spacing	Lead Style	Voltage - Rated	Voltage - Rated	Tolerance	Features	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type

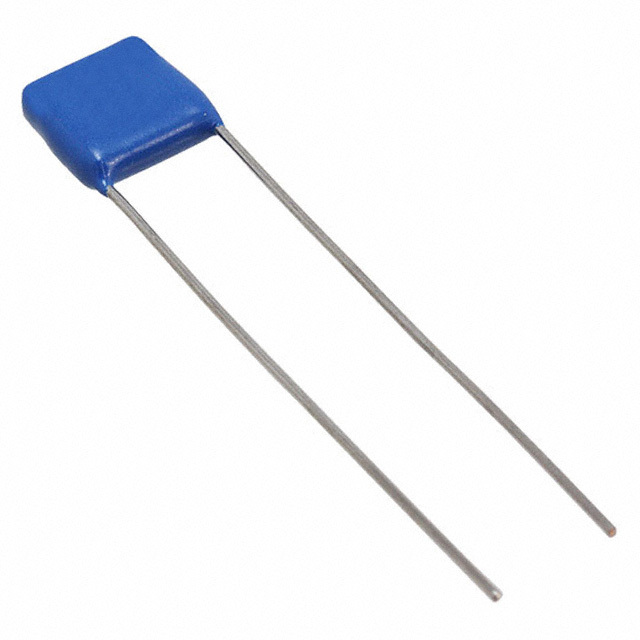

KEMET 30HV12N102KC	Downhole	7.62 mm	0.3 in	Straight	3000 V	3 kV	10 %	High Temperature High Voltage	Radial	200 °C	-55 C	0.001 µF	C0G NP0	6.35 mm	0.42 in	10.67 mm	0.25 in	0.4 in	10.16 mm	Through Hole
KEMET 30HV12N101KN	Downhole	7.62 mm	0.3 in	Straight	3000 V	3 kV	10 %	High Temperature High Voltage	Radial	200 °C	-55 C	100 pF	C0G NP0	6.35 mm	0.42 in	10.67 mm	0.25 in	0.4 in	10.16 mm	Through Hole
