2102247 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

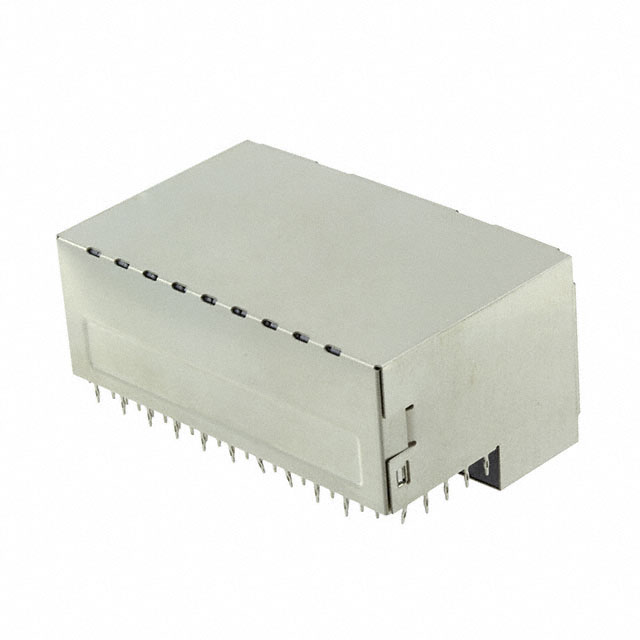

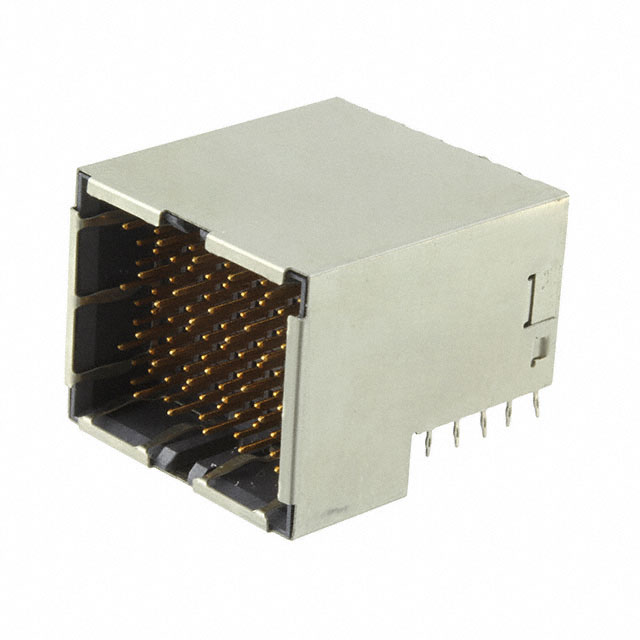

CONN HEADER 180POS EDGE MNT
| Part | Number of Positions Loaded | Number of Positions | Termination | Number of Columns [custom] | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Connector Usage | Color | Contact Finish | Features | Mounting Type | Number of Columns |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | All | 180 | Press-Fit | 20 | UL94 V-1 | 50 µin | 1.27 µm | 125 °C | -65 ░C | Header Male Pins | Daughtercard | Black | Gold | Shielded Spacer | Board Edge Right Angle Through Hole | |
 TE Connectivity Aerospace, Defense and Marine | All | 90 | Press-Fit | UL94 V-0 | 50 µin | 1.27 µm | 125 °C | -65 ░C | Header Male Pins | Daughtercard | Black | Gold | Shielded Spacer | Board Edge Right Angle Through Hole | 10 |
