SML-LX12012 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K

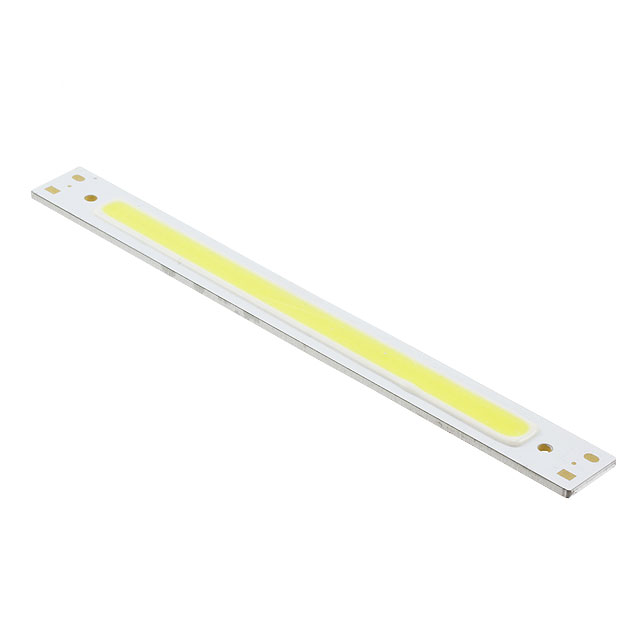

LED COB TITANBRITE WHT LNR STRP
| Part | Height [z] | Current - Max [Max] | Type | Configuration | Size / Dimension [y] | Size / Dimension [x] | Voltage - Forward (Vf) (Typ) | Viewing Angle | Lumens/Watt @ Current - Test | Luminous Flux @ Current/Temperature | Current - Test | Color | Temperature - Test | Lens Type | CCT (K) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | 2.8 mm | 700 mA | Chip On Board (COB) | Linear Light Strip | 12 mm | 120 mm | 12 V | 170 ° | 63 lm/W | 240 lm | 320 mA | Warm White | 25 °C | Flat | 3500 K |
Lumex Opto/Components Inc. | 2.8 mm | 700 mA | Chip On Board (COB) | Linear Light Strip | 12 mm | 120 mm | 12 V | 170 ° | 64 lm/W | 270 lm | 320 mA | Cool White | 25 °C | Flat | 6500 K |
