CMA3000 Series

Catalog

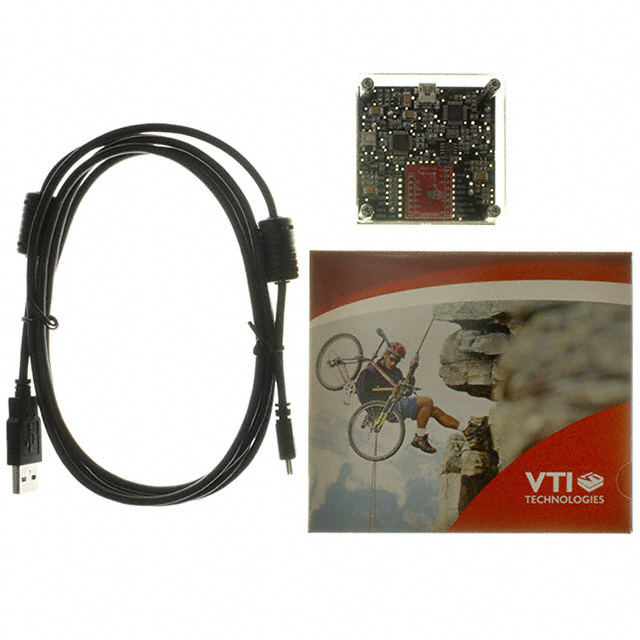

KIT DEMO ACCELEROMTR CMA3000-D01

Part	Supplied Contents	Sensing Range	Sensitivity	Sensor Type	Voltage - Supply	Voltage - Supply	Utilized IC / Part	Contents	Interface	Type	Axis [z]	Axis [y]	Axis [x]	Acceleration Range [Max]	Acceleration Range [Min]	Mounting Type	Output Type	Sensitivity (LSB/g)	Operating Temperature [Max]	Operating Temperature [Min]	Bandwidth [y]	Bandwidth [z]	Bandwidth [x]	Features	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Sensitivity (mV/g)
Murata Electronics CMA3000-D01 DEMOKIT	Board(s) Cable(s)	2 g 8 g	14 mV/mT 56 mV/A	Accelerometer 3 Axis	USB	5 VDC	CMA3000-D01	Board Cable	I2C Serial SPI

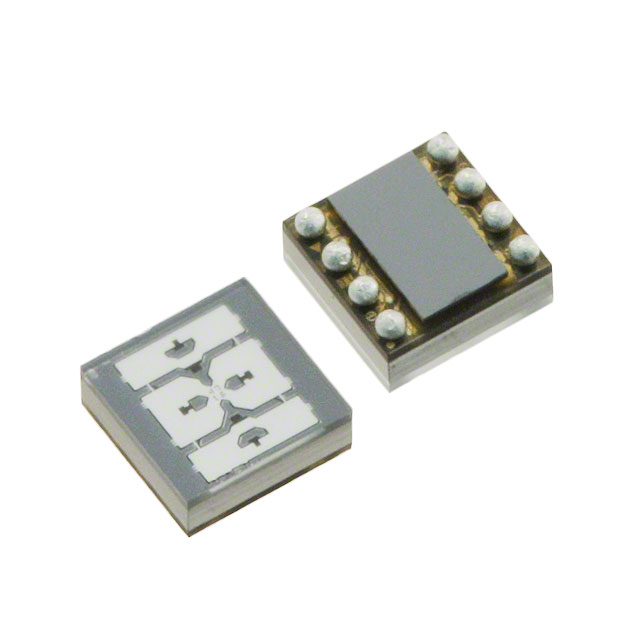

Murata Electronics CMA3000-D01-1										Digital	Z	Y	X	2 g 8 g	-2 g	Surface Mount	I2C SPI	14 LSB/g 56 LSB/g	85 °C	-40 C	60 Hz	90 Hz	60 Hz	Selectable Scale	1.7 V	3.6 V	8-VFBGA
Murata Electronics CMA3000-A01-1										Analog	Z	Y	X	2 g 8 g	-2 g	Surface Mount	Analog Voltage		85 °C	-40 C	110 Hz	160 Hz	110 Hz	Selectable Scale	1.7 V	3.6 V	Surface Mount - Coin Style	42 mV/g 167 mV/g
