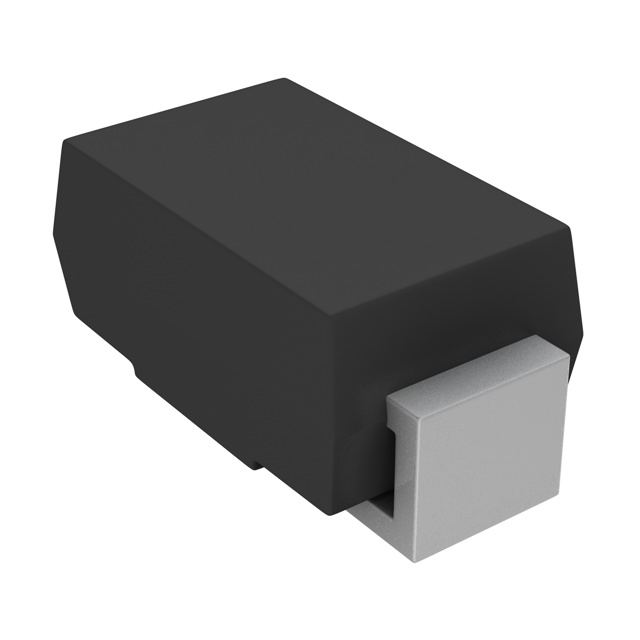

P4SMAJ17 Series

Catalog

SURFACE MOUNT TRANSIENT VOLTAGE

Part	Bidirectional Channels [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Power - Peak Pulse	Voltage - Reverse Standoff (Typ)	Mounting Type	Type	Voltage - Breakdown (Min) [Min]	Applications	Supplier Device Package	Voltage - Clamping (Max) @ Ipp [Max]	Package / Case	Unidirectional Channels [custom]	Current - Peak Pulse (10/1000µs)
Panjit International Inc. P4SMAJ17CA_R1_00001	1	150 °C	-55 °C	400 W	17 V	Surface Mount	Zener	18.9 V	General Purpose	DO-214AC (SMA)	27.6 V	DO-214AC SMA
Panjit International Inc. P4SMAJ17CAS_R1_00001	1	150 °C	-55 °C	400 W	17 V	Surface Mount	Zener	18.9 V	General Purpose	DO-214AC (SMA)	27.6 V	DO-214AC SMA
Panjit International Inc. P4SMAJ17AS_R1_00001		150 °C	-55 °C	400 W	17 V	Surface Mount	Zener	18.9 V	General Purpose	DO-214AC (SMA)	27.6 V	DO-214AC SMA	1
Panjit International Inc. P4SMAJ17C_R1_00001	1	150 °C	-55 °C	400 W	17 V	Surface Mount	Zener	18.9 V	General Purpose	DO-214AC (SMA)	30.5 V	DO-214AC SMA		13.1 A
