MAN64 Series

Catalog

LED 7-SEG SGL CC GRN RHDP .56"

Part	Display Type	Current - Test	Power Dissipation (Max) [Max]	Common Pin	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Package / Case	Package / Case	Number of Characters [custom]	Wavelength - Peak	Color	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Number of Characters

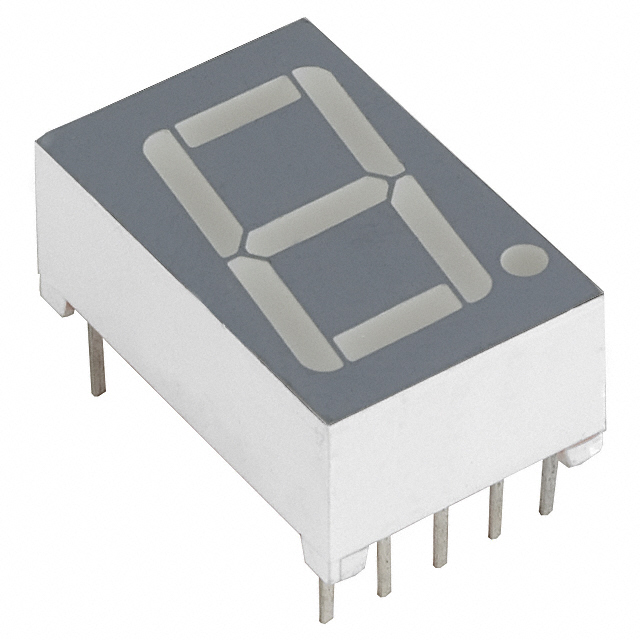

ON Semiconductor MAN6480	7-Segment	20 mA	600 mW	Common Cathode	2.2 mcd	2.1 V	0.56 in	14.22 mm	0.315 " 0.75 in 8 mm 19.05 mm	0.48 in 12.2 mm	0.6 in	15.24 mm	10-DIP	1	565 nm	Green
ON Semiconductor MAN6480E	7-Segment	20 mA	100 mW	Common Cathode	2.2 mcd	2.1 V	0.56 in	14.22 mm	0.315 "	0.488 in	0.6 in	15.24 mm	10-DIP	1	570 nm	Green	8 mm	12.4 mm	19.05 mm	0.75 in

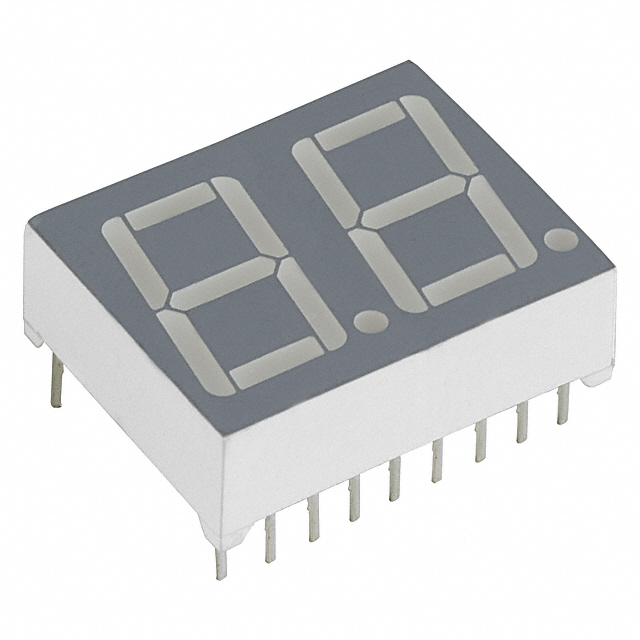

ON Semiconductor MAN6440	7-Segment	20 mA	600 mW	Common Cathode	2.2 mcd	2.1 V	0.56 in	14.22 mm	0.315 "	0.985 "		0.6 in	18-DIP		565 nm	Green	8 mm	25.02 mm	19.05 mm	0.75 in	15.24 mm	2
ON Semiconductor MAN6460	7-Segment	20 mA	600 mW	Common Anode	2.2 mcd	2.1 V	0.56 in	14.22 mm	0.315 " 0.75 in 8 mm 19.05 mm	0.48 in 12.2 mm	0.6 in	15.24 mm	10-DIP	1	565 nm	Green
ON Semiconductor MAN6410E	7-Segment	20 mA	100 mW	Common Anode	2 mcd	2.1 V	0.56 in	14.22 mm	0.315 "	0.984 in		0.6 in	18-DIP		570 nm	Green	8 mm	25 mm	19.05 mm	0.75 in	15.24 mm	2
ON Semiconductor MAN6460E	7-Segment	20 mA	100 mW	Common Anode	2.2 mcd	2.1 V	0.56 in	14.22 mm	0.315 "	0.488 in	0.6 in	15.24 mm	10-DIP	1	570 nm	Green	8 mm	12.4 mm	19.05 mm	0.75 in
ON Semiconductor MAN6411C	7-Segment	20 mA	70 mW	Common Anode	2.2 mcd	2.1 V	0.56 in	14.22 mm	0.748 " 19 mm	0.984 in 25 mm		0.6 in	18-DIP		570 nm	Green				0.315 " 8 mm	15.24 mm	2
ON Semiconductor MAN6440E	7-Segment	20 mA	100 mW	Common Cathode	2 mcd	2.1 V	0.56 in	14.22 mm	0.315 "	0.984 in		0.6 in	18-DIP		570 nm	Green	8 mm	25 mm	19.05 mm	0.75 in	15.24 mm	2
ON Semiconductor MAN6481C	7-Segment	20 mA	70 mW	Common Cathode	2.2 mcd	2.1 V	0.56 in	14.22 mm	0.315 "	0.5 in	0.6 in	15.24 mm	10-DIP	1	570 nm	Green	8 mm	12.7 mm	19 mm	0.748 in
ON Semiconductor MAN6460	7-Segment	20 mA	600 mW	Common Anode	2.2 mcd	2.1 V	0.56 in	14.22 mm	0.315 " 0.75 in 8 mm 19.05 mm	0.48 in 12.2 mm	0.6 in	15.24 mm	10-DIP	1	565 nm	Green
