BU26TA2WNVX Series

200mA 2.6V, Fixed Output, High PSRR, High-Accuracy CMOS LDO Regulator

Catalog

200mA 2.6V, Fixed Output, High PSRR, High-Accuracy CMOS LDO Regulator

Part	Current - Quiescent (Iq)	Current - Output	Control Features	Output Type	Number of Regulators	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Protection Features	Package / Case	Voltage Dropout (Max) [Max]	PSRR	Output Configuration	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]
Rohm Semiconductor BU26TA2WNVX-TR	95 µA	200 mA	Enable	1.81 mOhm	1	Surface Mount	5.5 V	2.6 V	Over Current Over Temperature	4-UDFN Exposed Pad	0.8 V	65 dB	Positive	SSON004X1216	85 °C	-40 °C

Catalog

200mA 2.6V, Fixed Output, High PSRR, High-Accuracy CMOS LDO Regulator

Description

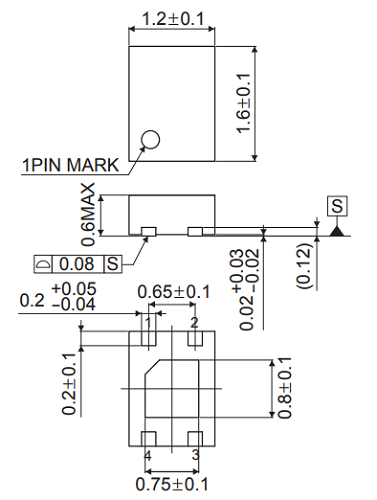

The BU**TA2WNVX /HFV series integrates a 200mA output high performance FULL CMOS regulator into an ultra-compact SSON004X1216 package (1.2mm×1.6mm×0.6mm)&HVSOF5(1.6mm×1.6mm×0.6mm). Additional features include a circuit current of only 40µA for low power consumption along with superior noise and load response characteristics, making them ideal for use in power supplies for a wide variety of applications, including logic ICs, RF circuits, and camera modules.
