10-482 Series
Manufacturer: Coax Connectors Ltd
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

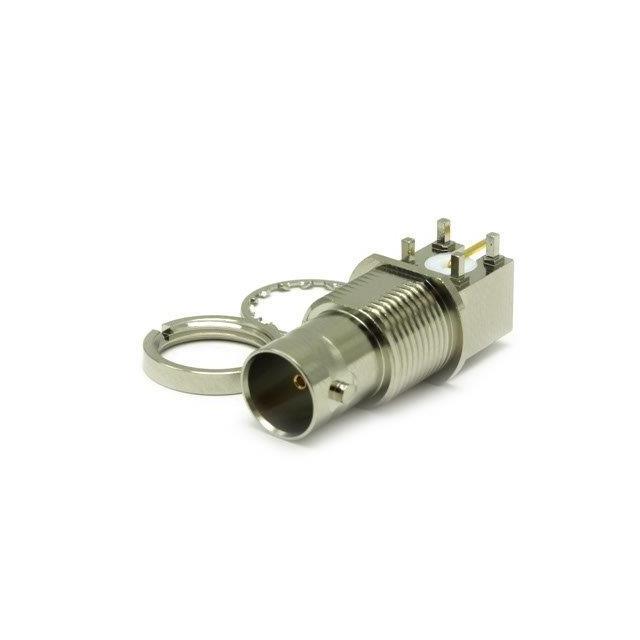

BNC RIGHT ANGLE BULKHEAD JACK PC
| Part | Mating Cycles | Dielectric Material | Operating Temperature (Max) | Operating Temperature (Min) | Body Material | Body Finish | Center Contact Plating | Connector Style | Mounting Type | Housing Color | Fastening Type | Contact Termination | Connector Type | Frequency - Max | Number of Ports | Impedance | Shield Termination | Center Contact Material | Ingress Protection Description | Ingress Protection IP Rating | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Coax Connectors Ltd | 500 cycles | Polytetrafluoroethylene (PTFE) | 155 °C | -55 °C | Brass | Nickel | Gold | BNC | Panel Mount Surface Mount Through Hole | Silver | Bayonet Lock | Solder | Female Socket Jack | 4.5 GHz | 1 | 75 Ohm | Solder | Phosphor Bronze | Dust Tight Water Resistant | IP64 | Bulkhead Front Side Nut |
