67998 Series

Catalog

BERGSTIK II .100CC DR-STRAIGHT

...

Part	Connector Type	Voltage Rating	Contact Shape	Insulation Height	Insulation Height	Shrouding	Contact Length - Mating [x]	Contact Length - Mating [x]	Fastening Type	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Number of Positions	Material Flammability Rating	Contact Type	Number of Rows	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Mounting Type	Current Rating (Amps)	Contact Material	Number of Positions	Contact Finish - Post

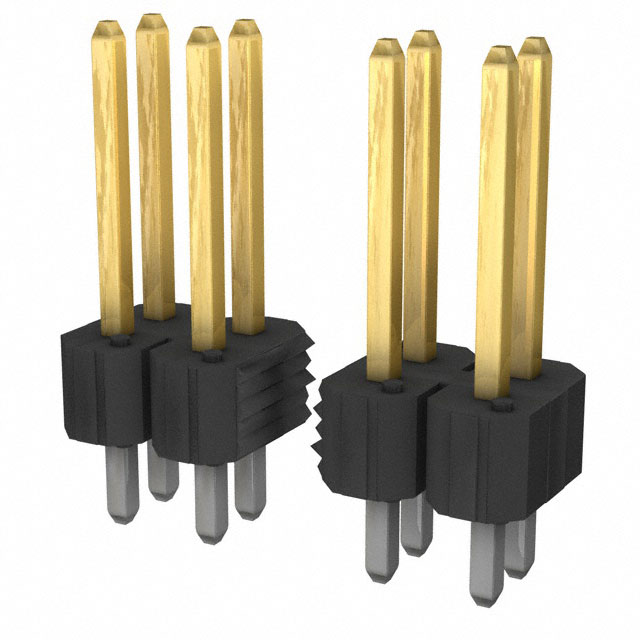

Amphenol ICC (FCI) 67998-222HLF	Header	110 VDC	Square	0.1 in	2.54 mm	Unshrouded	0.318 "	8.08 mm	Push-Pull	Solder	2.54 mm	0.1 in	0.525 in	13.34 mm	Black	0.1 in	2.54 mm	All	22 positions	UL94 V-0	Male Pin	2	Gold or Gold GXT™	15 µin	0.38 µm	0.107 "	2.71 mm	Through Hole	5 A	Phosphor Bronze
Amphenol ICC (FCI) 67998-272	Header		Square	0.1 in	2.54 mm	Unshrouded	0.318 "	8.08 mm	Push-Pull	Solder	2.54 mm	0.1 in	0.525 in	13.34 mm	Black	0.1 in	2.54 mm	All	72	UL94 V-0	Male Pin	2	Gold or Gold GXT™	15 µin	0.38 µm	0.107 "	2.71 mm	Through Hole		Phosphor Bronze
Amphenol ICC (FCI) 67998-158HLF	Header	110 VDC	Square	0.1 in	2.54 mm	Unshrouded	0.318 "	8.08 mm	Push-Pull	Solder	2.54 mm	0.1 in	0.525 in	13.34 mm	Black	0.1 in	2.54 mm	All	58	UL94 V-0	Male Pin	2	Gold or Gold GXT™	30 Áin	0.76 Ám	0.107 "	2.71 mm	Through Hole	5 A	Phosphor Bronze
Amphenol ICC (FCI) 67998-116HLF	Header	110 VDC	Square	0.1 in	2.54 mm	Unshrouded	0.318 "	8.08 mm	Push-Pull	Solder	2.54 mm	0.1 in	0.525 in	13.34 mm	Black	0.1 in	2.54 mm	All		UL94 V-0	Male Pin	2	Gold or Gold GXT™	30 Áin	0.76 Ám	0.107 "	2.71 mm	Through Hole	5 A	Phosphor Bronze	16
Amphenol ICC (FCI) 67998-338HLF	Header	110 VDC	Square	0.1 in	2.54 mm	Unshrouded	0.318 "	8.08 mm	Push-Pull	Solder	2.54 mm	0.1 in	0.525 in	13.34 mm	Black	0.1 in	2.54 mm	All	38	UL94 V-0	Male Pin	2	Gold or Gold GXT™	50 µin	1.27 µm	0.107 "	2.71 mm	Through Hole	5 A	Phosphor Bronze
Amphenol ICC (FCI) 67998-136HLF	Header	110 VDC	Square	0.1 in	2.54 mm	Unshrouded	0.318 "	8.08 mm	Push-Pull	Solder	2.54 mm	0.1 in	0.525 in	13.34 mm	Black	0.1 in	2.54 mm	All	36	UL94 V-0	Male Pin	2	Gold or Gold GXT™	30 Áin	0.76 Ám	0.107 "	2.71 mm	Through Hole	5 A	Phosphor Bronze

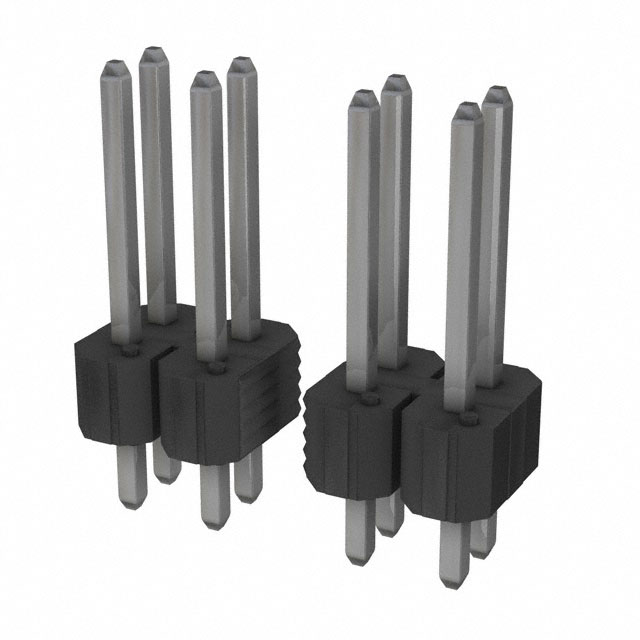

Amphenol ICC (FCI) 67998-434HLF	Header	110 VDC	Square	0.1 in	2.54 mm	Unshrouded	0.318 "	8.08 mm	Push-Pull	Solder	2.54 mm	0.1 in	0.525 in	13.34 mm	Black	0.1 in	2.54 mm	All	34	UL94 V-0	Male Pin	2		100 çin	2.54 çm	0.107 "	2.71 mm	Through Hole	5 A	Phosphor Bronze		Tin
Amphenol ICC (FCI) 67998-266HLF	Header	110 VDC	Square	0.1 in	2.54 mm	Unshrouded	0.318 "	8.08 mm	Push-Pull	Solder	2.54 mm	0.1 in	0.525 in	13.34 mm	Black	0.1 in	2.54 mm	All	66	UL94 V-0	Male Pin	2	Gold or Gold GXT™	15 µin	0.38 µm	0.107 "	2.71 mm	Through Hole	5 A	Phosphor Bronze
Amphenol ICC (FCI) 67998-246HLF	Header	110 VDC	Square	0.1 in	2.54 mm	Unshrouded	0.318 "	8.08 mm	Push-Pull	Solder	2.54 mm	0.1 in	0.525 in	13.34 mm	Black	0.1 in	2.54 mm	All	46	UL94 V-0	Male Pin	2	Gold or Gold GXT™	15 µin	0.38 µm	0.107 "	2.71 mm	Through Hole	5 A	Phosphor Bronze
Amphenol ICC (FCI) 67998-218HLF	Header	110 VDC	Square	0.1 in	2.54 mm	Unshrouded	0.318 "	8.08 mm	Push-Pull	Solder	2.54 mm	0.1 in	0.525 in	13.34 mm	Black	0.1 in	2.54 mm	All	18	UL94 V-0	Male Pin	2	Gold or Gold GXT™	15 µin	0.38 µm	0.107 "	2.71 mm	Through Hole	5 A	Phosphor Bronze
