40.52.8 Series

Catalog

RELAY GEN PURPOSE DPDT 8A 230V

Part	Coil Resistance	Contact Rating (Current)	Termination Style	Contact Form	Switching Voltage [Max]	Contact Material	Must Release Voltage	Operate Time	Coil Current	Must Operate Voltage	Relay Type	Load - Max Switching	Coil Type	Seal Rating	Approval Agency	Coil Voltage	Mounting Type	Release Time	Operating Temperature [Max]	Operating Temperature [Min]
Finder Relays, Inc. 40.52.8.230.5000	28 kOhms	8 A	Plug In	DPDT (2 Form C)	400 VAC	Silver Nickel (AgNi)	46 VAC	7 ms	5 mA	184 VAC	General Purpose	3200 VA	Non Latching	Sealed - Flux Protection	CCC CSA cURus EAC ENEC RINA VDE	230 VAC	Socketable	3 ms	85 °C	-40 C
Finder Relays, Inc. 40.52.8.060.0000	2.1 kOhms	8 A	Plug In	DPDT (2 Form C)	400 VAC	Silver Nickel (AgNi)	12 VAC	7 ms	16.8 mA	48 VAC/DC	General Purpose	3200 VA	Non Latching	Sealed - Flux Protection	CCC CSA cURus EAC ENEC RINA VDE	60 VAC	Socketable	3 ms	85 °C	-40 C
Finder Relays, Inc. 40.52.8.012.0000	80 Ohms	8 A	Plug In	DPDT (2 Form C)	400 VAC	Silver Nickel (AgNi)	2.4 VAC/DC	7 ms	90 mA	9.6 VAC/DC	General Purpose	3200 VA	Non Latching	Sealed - Flux Protection	CCC CSA cURus EAC ENEC RINA VDE	12 VAC	Socketable	3 ms	85 °C	-40 C
Finder Relays, Inc. 40.52.8.240.5000	31.5 kOhms	8 A	Plug In	DPDT (2 Form C)	400 VAC	Silver Nickel (AgNi)	48 VAC	7 ms	4.1 mA	192 VAC	General Purpose	3200 VA	Non Latching	Sealed - Flux Protection	CCC CSA cURus EAC ENEC RINA VDE	240 VAC/DC	Socketable	3 ms	85 °C	-40 C
Finder Relays, Inc. 40.52.8.048.0000	1.35 kOhms	8 A	Plug In	DPDT (2 Form C)	400 VAC	Silver Nickel (AgNi)	9.6 VAC	7 ms	21 mA	38.4 VAC	General Purpose	3200 VA	Non Latching	Sealed - Flux Protection	CCC CSA cURus EAC ENEC RINA VDE	48 VAC	Socketable	3 ms	85 °C	-40 C
Finder Relays, Inc. 40.52.8.240.0001	31.5 kOhms	8 A	Plug In	DPDT (2 Form C)	400 VAC	Silver Nickel (AgNi)	48 VAC	7 ms	4.1 mA	192 VAC	General Purpose	3200 VA	Non Latching		CCC CSA cURus EAC ENEC RINA VDE	240 VAC/DC	Socketable	3 ms	85 °C	-40 C
Finder Relays, Inc. 40.52.8.024.0001	320 Ohms	8 A	Plug In	DPDT (2 Form C)	400 VAC	Silver Nickel (AgNi)	4.8 VAC	7 ms	45 mA	19.2 VAC	General Purpose	3200 VA	Non Latching		CCC CSA cURus EAC ENEC RINA VDE	24 VAC	Socketable	3 ms	85 °C	-40 C
Finder Relays, Inc. 40.52.8.012.0001	80 Ohms	8 A	Plug In	DPDT (2 Form C)	400 VAC	Silver Nickel (AgNi)	2.4 VAC/DC	7 ms	90 mA	9.6 VAC/DC	General Purpose	3200 VA	Non Latching		CCC CSA cURus EAC ENEC RINA VDE	12 VAC	Socketable	3 ms	85 °C	-40 C
Finder Relays, Inc. 40.52.8.230.0300	28 kOhms	8 A	Plug In	DPST-NO (2 Form A)	400 VAC	Silver Nickel (AgNi)	46 VAC	7 ms	5 mA	184 VAC	General Purpose	3200 VA	Non Latching	Sealed - Flux Protection	CCC CSA cURus EAC ENEC RINA VDE	230 VAC	Socketable	3 ms	85 °C	-40 C

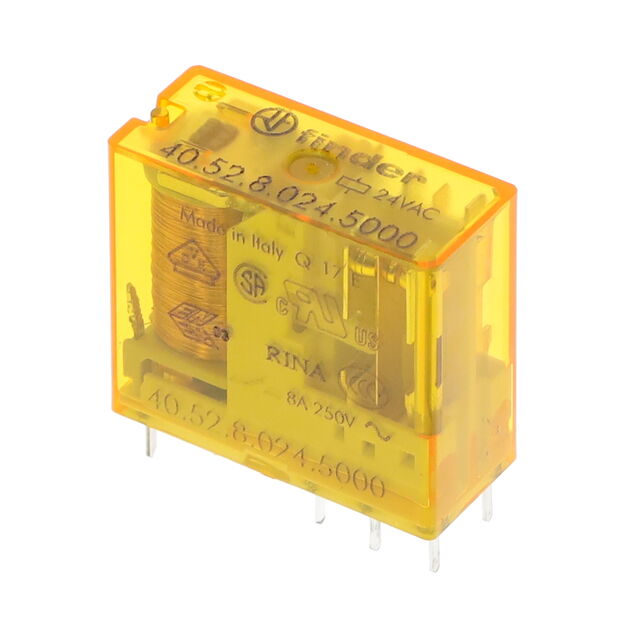

Finder Relays, Inc. 40.52.8.024.5000	320 Ohms	8 A	PC Pin	DPDT (2 Form C)	400 VAC	Silver Nickel (AgNi)	4.8 VAC	7 ms	45 mA	19.2 VAC	General Purpose	3200 VA	Non Latching	Sealed - Flux Protection	CCC CSA cURus EAC ENEC RINA VDE	24 VAC	Through Hole	3 ms	85 °C	-40 C
