MFS101D Series

Catalog

SLIDE SWITCH, SUB-MINIATURE, SPDT, ON-ON, PANEL MOUNT, MFS SERIES, 300 MA

Part	Operating Force	Switch Travel	Electrical Life	Circuit	Voltage Rating - DC	Actuator Length [x]	Mounting Type	Termination Style	Current Rating (Amps)	Switch Function	Contact Timing	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]

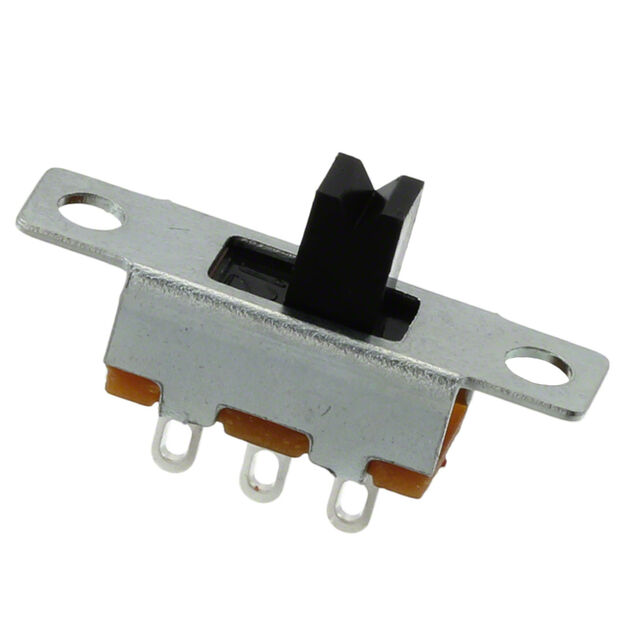

Nidec Components Corporation MFS101D-14-Z	0.2 kgf	3.5 mm	5000 Steps	SPDT	30 V	4 mm	Panel Mount	Solder Lug	300 mA	On-On	Non-Shorting (BBM)	Standard	70 °C	-10 °C

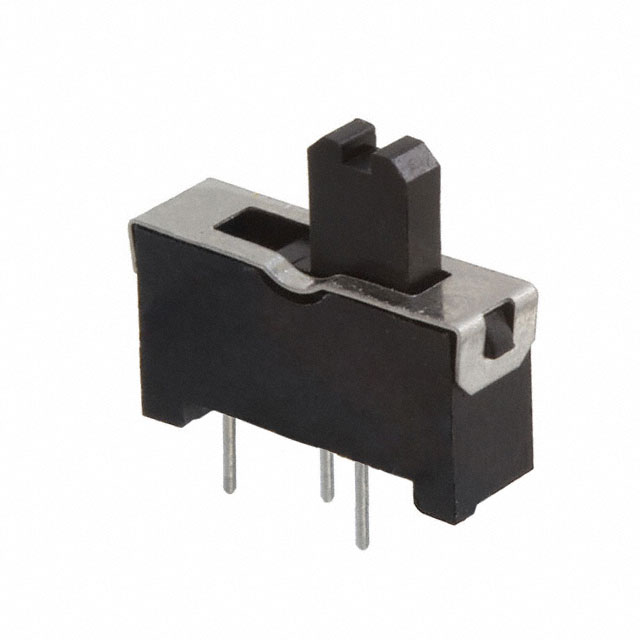

Nidec Components Corporation MFS101D-9-Z	100 gf	2.5 mm	5000 Steps	SPDT	12 V	3.3 mm	Through Hole	PC Pin	300 mA	On-On	Non-Shorting (BBM)	Standard	70 °C	-10 °C

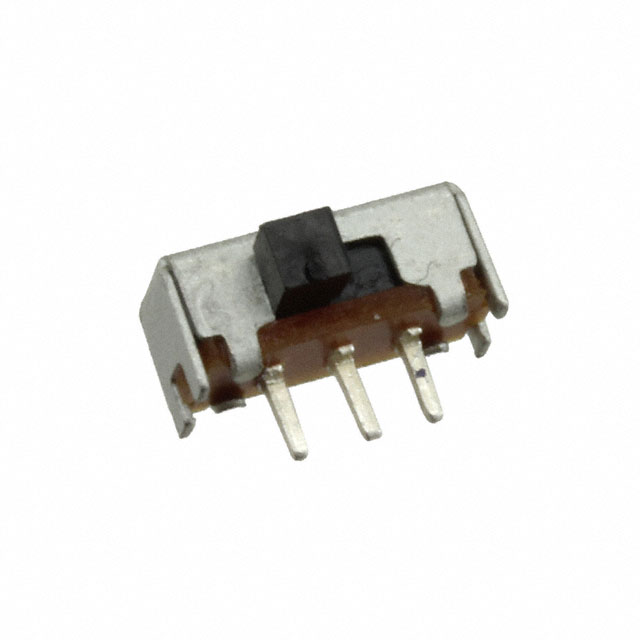

Nidec Components Corporation MFS101D-10-Z	300 gf	2 mm	5000 Steps	SPDT	30 V	2 mm	Right Angle Through Hole	PC Pin	300 mA	On-On	Non-Shorting (BBM)	Standard	70 °C	-10 °C
