QAWA-36 Series
Manufacturer: Qualtek
Beta
⌘K

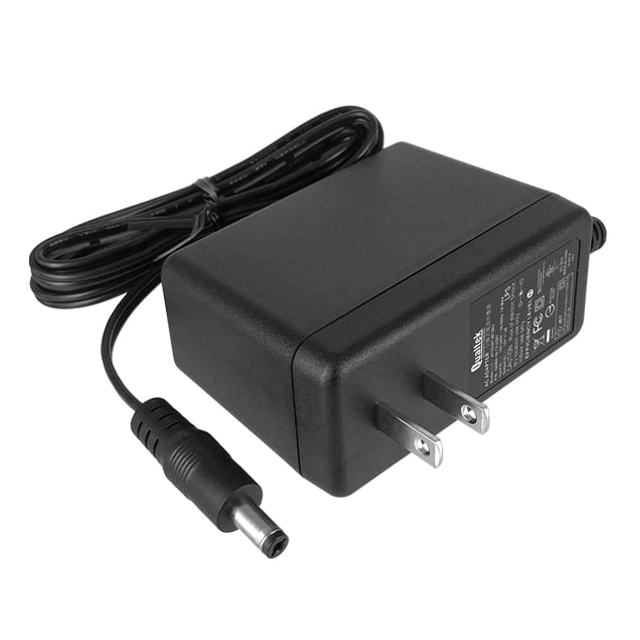

AC/DC WALL MOUNT ADAPTER 12V 36W
| Part | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Input Connector | Current - Output (Max) [Max] | Applications | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Form | Voltage - Output | Voltage - Input [Min] | Voltage - Input [Max] | Cord Length | Cord Length | Polarization | Input Type | No Load Power Consumption | Output Connector [x] | Output Connector [diameter] | Output Connector | Approval Agency | Power (Watts) | Region Utilized |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | Level VI | 40 °C | 0 °C | NEMA 1-15P | 3 A | ITE (Commercial) | 34 mm | 3.11 " | 1.34 in | 79 mm | 74 mm | 2.91 in | Wall Mount | 12 V | 100 VAC | 240 VAC | 1.5 m | 59 in | Positive Center | Fixed Blade | 100 mW | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | BSMI CB CCC CE cULus FCC GS PSE RCM | 36 W | North America |
