SSL-LX4673 Series

Catalog

LED YELLOW DIFF RECT 4MMX7MM T/H

Part	Mounting Type	Height (Max) [z]	Lens Style	Viewing Angle	Voltage - Forward (Vf) (Typ)	Lens Color	Color	Wavelength - Peak	Configuration	Current - Test	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Millicandela Rating	Lens Transparency	Supplier Device Package	Current - Test [custom]	Current - Test [custom]
Lumex Opto/Components Inc. SSL-LX4673SYD-LA20	Through Hole	6.8 mm	Rectangle with Flat Top	100 °	2 V	Yellow	Yellow	590 nm	Standard	20 mA	Radial	3.65 mm	6.15 mm	100 mcd	Diffused	Rectangular 4mmx7mm

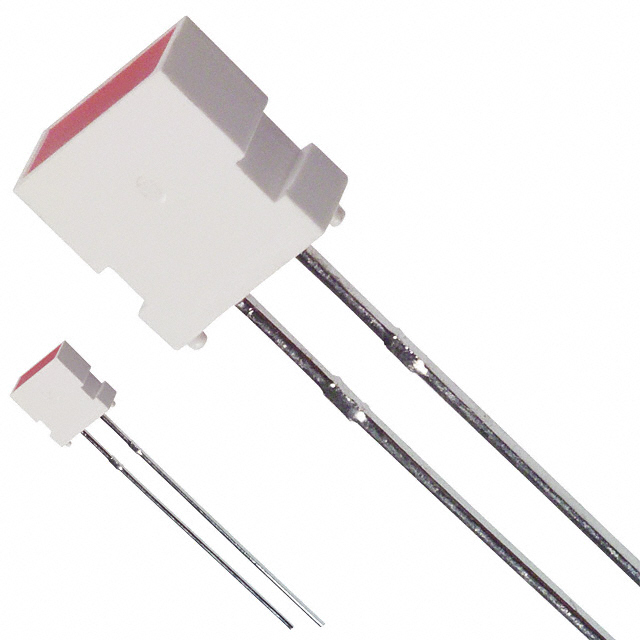

Lumex Opto/Components Inc. SSL-LX4673ID-LA20	Through Hole	6.8 mm	Rectangle with Flat Top	100 °	2 V	Red	Red	635 nm	Standard	20 mA	Radial	3.65 mm	6.15 mm	12 mcd	Diffused	Rectangular 4mmx7mm
Lumex Opto/Components Inc. SSL-LX4673IGW-LA20	Through Hole	6.8 mm	Rectangle with Flat Top	100 °	2 V 2.2 V	White	Green Red	565 nm 635 nm	Bidirectional		Radial	3.65 mm	6.15 mm	10 mcd 10 mcd	Diffused	Rectangular 4mmx7mm	20 mA	20 mA

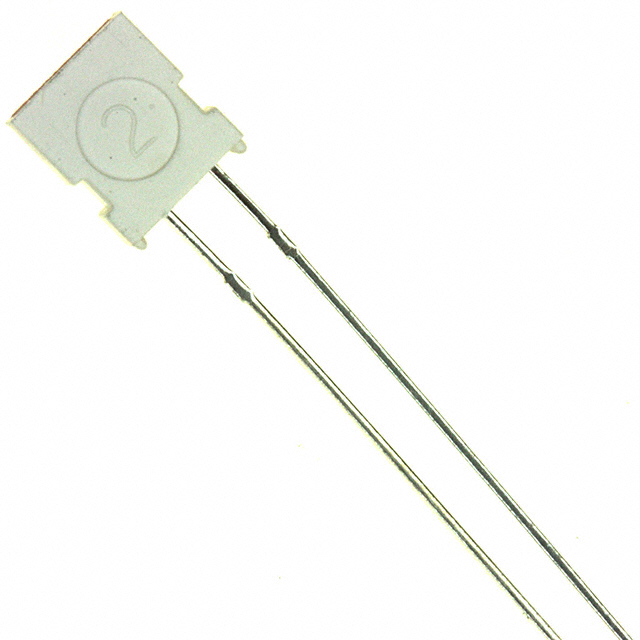

Lumex Opto/Components Inc. SSL-LX4673SRD-LA20	Through Hole	6.8 mm	Rectangle with Flat Top	100 °	1.7 V	Red	Red	660 nm	Standard	20 mA	Radial	3.65 mm	6.15 mm	60 mcd	Diffused	Rectangular 4mmx7mm
Lumex Opto/Components Inc. SSL-LX4673GD-LA20	Through Hole	6.8 mm	Rectangle with Flat Top	100 °	2.2 V	Green	Green	565 nm	Standard	20 mA	Radial	3.65 mm	6.15 mm	6 mcd	Diffused	Rectangular 4mmx7mm

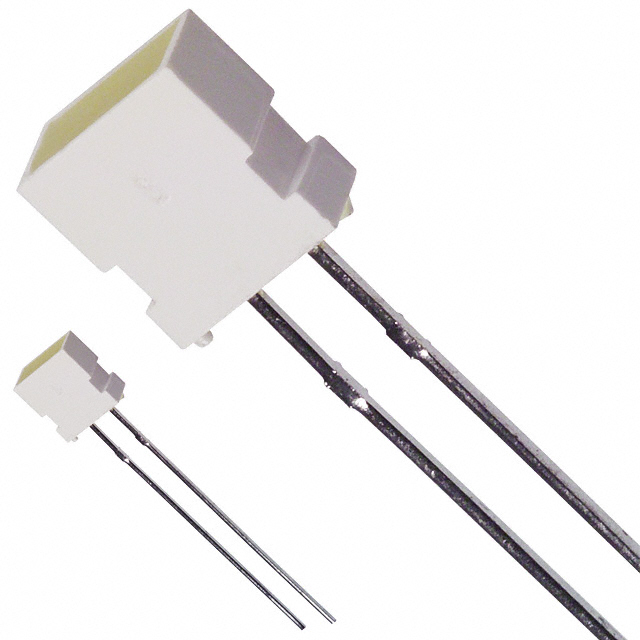

Lumex Opto/Components Inc. SSL-LX4673YD-LA20	Through Hole	6.8 mm	Rectangle with Flat Top	100 °	2.1 V	Yellow	Yellow	585 nm	Standard	20 mA	Radial	3.65 mm	6.15 mm	6 mcd	Diffused	Rectangular 4mmx7mm
