WR9MA1200 Series

Catalog

AC/DC WALL MOUNT ADAPTER 5V 6W

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Region Utilized	Output Connector	Cord Length	Cord Length	Form	Applications	Voltage - Output	No Load Power Consumption	Power (Watts)	Current - Output (Max) [Max]	Input Type	Approval Agency	Efficiency	Standard Number	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Input Connector	Polarization	Output Connector [diameter]	Output Connector [x]

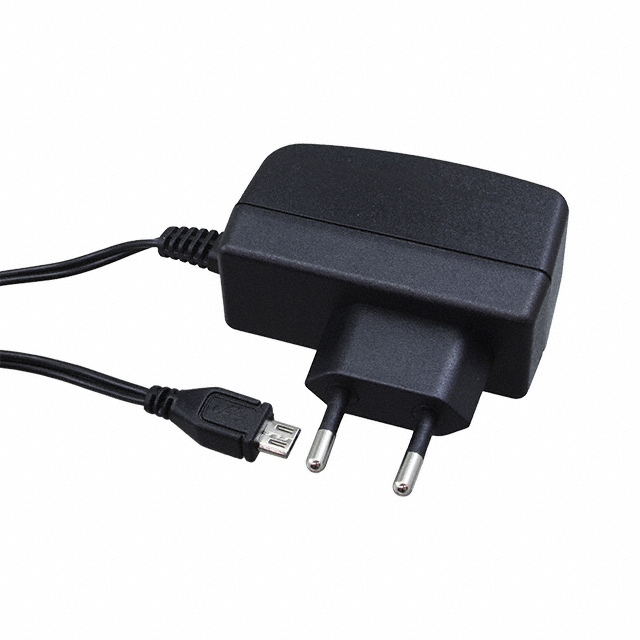

GlobTek, Inc. WR9MA1200MICB-F(R6B)	71.2 mm	0.98 in	66 mm	2.6 in	2.8 in	25 mm	Europe	USB Micro	1.5 m	59 in	Wall Mount	ITE (Commercial)	5 V	75 mW	6 W	1.2 A	Fixed Blade	CB CE EAC LPS UkrSEPRO	Level VI	60950-1	264 VAC	90 VAC	40 °C	0 °C	CEE 7/16

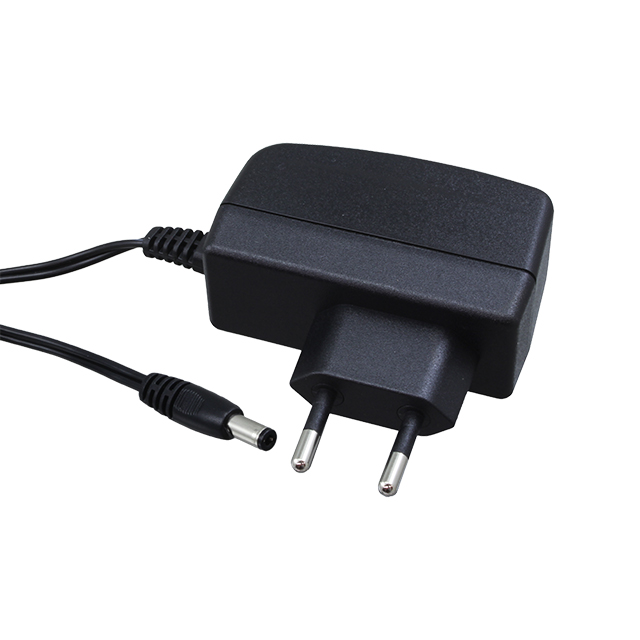

GlobTek, Inc. WR9MA1200LCP-F(R6B)	71.2 mm	0.98 in	66 mm	2.6 in	2.8 in	25 mm	Europe	Barrel Plug	1.5 m	59 in	Wall Mount	ITE (Commercial)	5 V	75 mW	6 W	1.2 A	Fixed Blade	CB CE EAC LPS UkrSEPRO	Level VI	60950-1	264 VAC	90 VAC	40 °C	0 °C	CEE 7/16	Positive Center	2.5 mm 5.5 mm	11 mm
