PHBC13 Series

Manufacturer: KEMET

Catalog

POWER INDUCTORS - LEADED 81UH 6A 20% DCR=24.7MOHMS

Part	Inductance @ Frequency	Height (Max) [z]	Height (Max) [z]	DC Resistance (DCR) (Max) [Max]	Current Rating (Max) [Max]	Number of Lines	Size / Dimension	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Package / Case	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	DC Resistance (DCR) [Max]

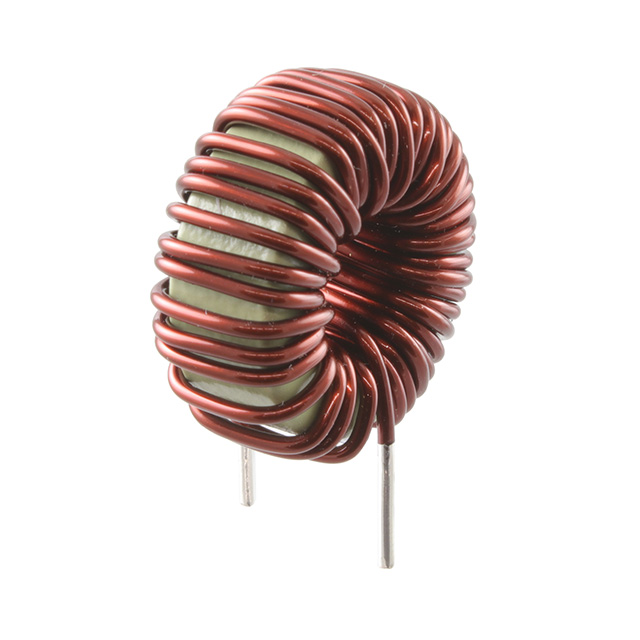

KEMET PHBC13-1R2A0081V	81 µH	1.181 in	30 mm	24.7 mOhm	6 A	2	30 mm	1.181 "	30 mm	1.181 "	No Base Vertical	2 Lead	6 A	125 °C	-40 C	Through Hole
KEMET PHBC13-1R2A0127V	127 µH	1.181 in	30 mm	31.7 mOhm	6 A	2	30 mm	1.181 "	30 mm	1.181 "	No Base Vertical	2 Lead	6 A	125 °C	-40 C	Through Hole	31.7 mOhm
