1SNK5 Series

Catalog

AUT SNK SCREW

Part	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Levels	Color	Voltage - UL [custom]	Type	Fuse Type	Disconnect Type	Number of Positions	Voltage - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Stripping Length	Terminal - Width [y]	Material Flammability Rating	Termination Style	Current - IEC	Current - UL	Features	Material - Insulation	Voltage - UL
TE Connectivity Raychem Cable Protection 1SNK508412R0000	10 AWG	24 AWG	1	Gray	300 V	Disconnect	5mm x 20mm 5mm x 25mm	Fuse Lever	2	630 V	0.2 mm²	4 mm²	11 mm	8 mm	UL94 V-0	Screw	6.3 A	10 A	LED Indicator	Nylon Polyamide (PA)

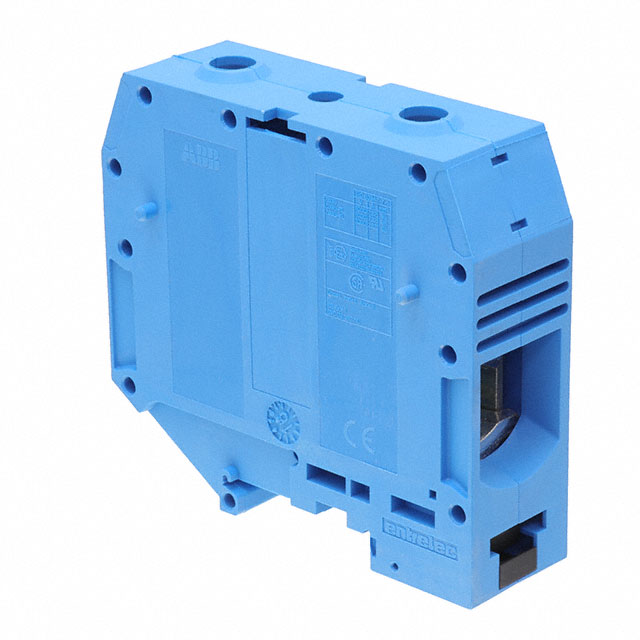

TE Connectivity Raychem Cable Protection 1SNK526020R0000	4 aught AWG	2 AWG	1	Blue		Feed Through			2	1 kV	35 mm²	120 mm²	26 mm	26 mm	UL94 V-0	Screw	232 A	230 A		Nylon Polyamide (PA)	1000 V

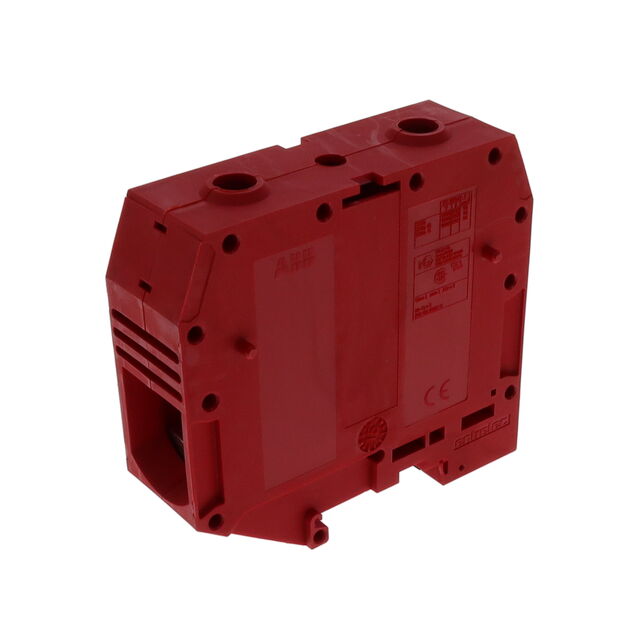

TE Connectivity Raychem Cable Protection 1SNK526062R0000	4 aught AWG	2 AWG	1	Red		Feed Through			2	1 kV	35 mm²	120 mm²	26 mm	26 mm	UL94 V-0	Screw	232 A	230 A		Nylon Polyamide (PA)	1000 V

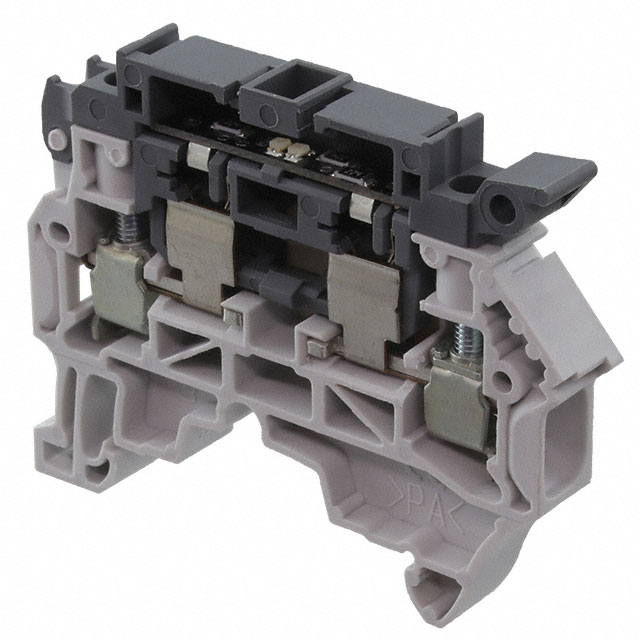

TE Connectivity Raychem Cable Protection 1SNK508414R0000	10 AWG	24 AWG	1	Gray	300 V	Disconnect	5mm x 20mm 5mm x 25mm	Fuse Lever	2	630 V	0.2 mm²	4 mm²	11 mm	8 mm	UL94 V-0	Screw	6.3 A	10 A	LED Indicator	Nylon Polyamide (PA)

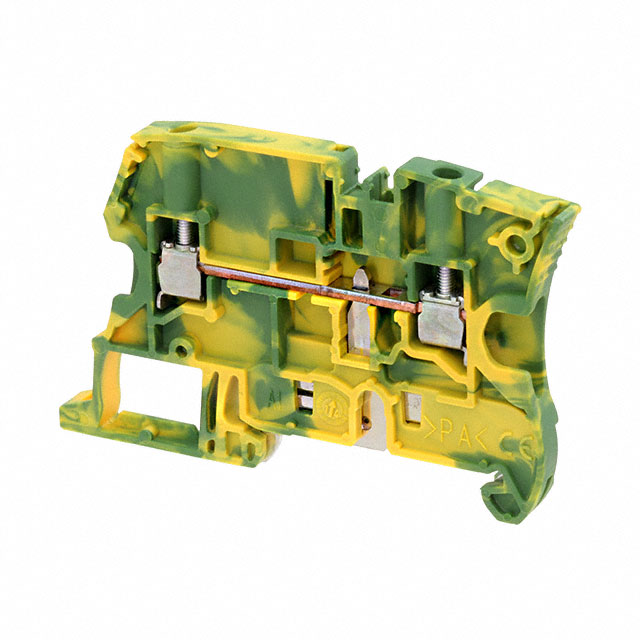

TE Connectivity Raychem Cable Protection 1SNK506153R0000	10 AWG	24 AWG	1	Green Yellow		Ground Earth			2		0.2 mm²	4 mm²	10.5 mm	6 mm	UL94 V-0	Screw				Nylon Polyamide (PA)
