EHG.1B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 7POS GOLD SOLDER

Part	Primary Material	Number of Positions	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current Rating (Amps)	Material Flammability Rating	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Shell Size - Insert [custom]	Shell Material	Mounting Feature	Contact Material	Termination	Insert Material	Shielding	Orientation [custom]	Color	Fastening Type	Shell Finish	Shell Size - Insert	Shell Size - Insert [custom]	Note	Housing Color
LEMO EHG.1B.307.CLV	Metal	7	IP50 - Dust Protected	-55 C	250 °C	Panel Mount Right Angle Through Hole	6 A	UL94 V-0	Receptacle Female Sockets	1.5 Ám	59 Áin	Gold	307	Brass	Bulkhead - Rear Side Nut	Bronze	Solder	Polyetheretherketone (PEEK)	Shielded	G	Silver	Push-Pull	Chrome

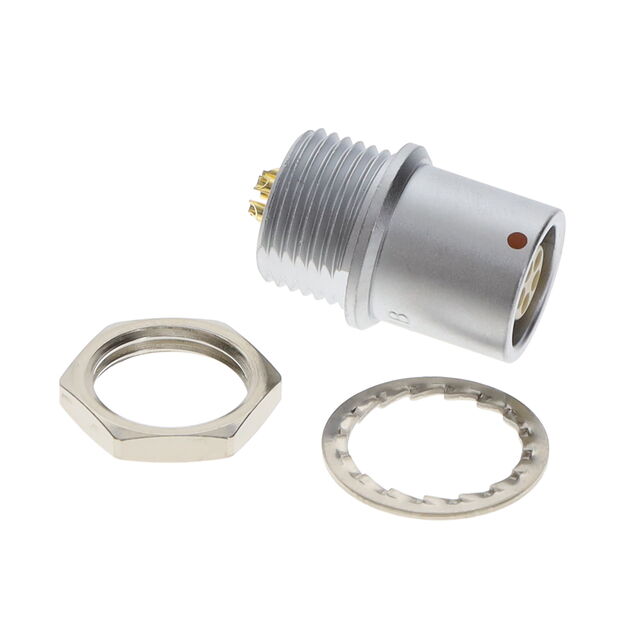

LEMO EHG.1B.305.CLL	Metal	5	IP50 - Dust Protected	-55 C	250 °C	Panel Mount	9 A	UL94 V-0	Receptacle Female Sockets	1.5 Ám	59 Áin	Gold		Brass	Bulkhead - Rear Side Nut	Bronze		Polyetheretherketone (PEEK)	Shielded	G	Silver	Push-Pull	Chrome	305
LEMO EHG.1B.803.CLL2	Metal	4	IP50 - Dust Protected	-55 C	250 °C	Panel Mount	10 A	UL94 V-0	Receptacle Female Sockets	1.5 Ám	59 Áin	Gold		Brass	Bulkhead - Rear Side Nut	Bronze		Polyetheretherketone (PEEK)	Shielded	G	Silver	Push-Pull	Chrome		803
LEMO EHG.1B.303.CLL	Metal		IP50 - Dust Protected	-55 C	250 °C	Panel Mount	12 Amps	UL94 V-0	Receptacle Female Sockets	1.5 Ám	59 Áin	Gold		Brass	Bulkhead - Rear Side Nut	Bronze		Polyetheretherketone (PEEK)	Shielded	G	Silver	Push-Pull	Chrome	303
LEMO EHG.1B.316.CLL	Metal	16	IP50 - Dust Protected	-55 C	250 °C	Panel Mount	1.5 A	UL94 V-0	Receptacle Female Sockets	1.5 Ám	59 Áin	Gold		Brass	Bulkhead - Rear Side Nut	Bronze		Polyetheretherketone (PEEK)	Shielded	G	Silver	Push-Pull	Chrome		316
LEMO EHG.1B.304.CLL	Metal	4	IP50 - Dust Protected	-55 C	250 °C	Panel Mount	10 A	UL94 V-0	Receptacle Female Sockets	1.5 Ám	59 Áin	Gold		Brass	Bulkhead - Rear Side Nut	Bronze		Polyetheretherketone (PEEK)	Shielded	G	Silver	Push-Pull	Chrome	304
LEMO EHG.1B.310.CLL	Metal	10	IP50 - Dust Protected	-55 C	250 °C	Panel Mount	2.5 A	UL94 V-0	Receptacle Female Sockets	1.5 Ám	59 Áin	Gold		Brass	Bulkhead - Rear Side Nut	Bronze		Polyetheretherketone (PEEK)	Shielded	G	Silver	Push-Pull	Chrome	310
LEMO EHG.1B.200.LC			IP50	-55 C	250 °C	Panel Mount			Insert Shell					Aluminum Alloy	Bulkhead - Rear Side Nut				Unshielded	G		Push-Pull	Anodized			Contacts Not Included; Insert Not Included	Black
LEMO EHG.1B.308.CLL	Metal	8	IP50 - Dust Protected	-55 C	250 °C	Panel Mount	5 A	UL94 V-0	Receptacle Female Sockets	1.5 Ám	59 Áin	Gold		Brass	Bulkhead - Rear Side Nut	Bronze		Polyetheretherketone (PEEK)	Shielded	G	Silver	Push-Pull	Chrome	308
