DRV8432 Series
Manufacturer: Texas Instruments
Beta
⌘K

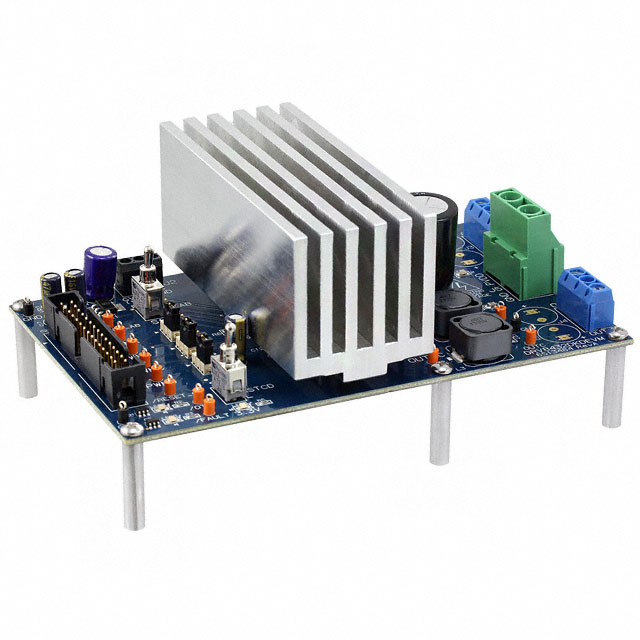

EVAL MODUOLE FOR DRV8432
| Part | Type | Secondary Attributes | Contents | Utilized IC / Part | Supplied Contents | Function | Applications | Fault Protection | Rds On (Typ) | Voltage - Load [Max] | Voltage - Load [Min] | Output Configuration | Features | Current - Peak Output | Load Type | Supplier Device Package | Technology | Interface | Current - Output / Channel | Package / Case | Package / Case | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Power Management | Short-Circuit Thermal Undervoltage Protection | Board(s) | DRV8432 | Board(s) | Motor Controller/Driver | ||||||||||||||||||||
 Texas Instruments | DC Motors Stepper Motors | Current Limiting Over Temperature Short Circuit UVLO | 110 mOhm 110 mOhm | 52.5 V | 0 V | Half Bridge (4) | Status Flag | 12 A | Inductive | 36-HSSOP | Power MOSFET | PWM | 7 A | 0.433 in 11 mm | 36-BSSOP Exposed Pad | Surface Mount | 13.2 V | 10.8 VDC | 150 °C | -40 °C |
