76350 Series

Catalog

CONN HEADER R/A 72POS 2.54MM

Part	Number of Positions	Number of Rows	Shrouding	Contact Length - Mating [x]	Contact Length - Mating	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Number of Positions Loaded	Material Flammability Rating	Contact Shape	Termination	Insulation Color	Fastening Type	Mounting Type	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Type	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Length - Mating

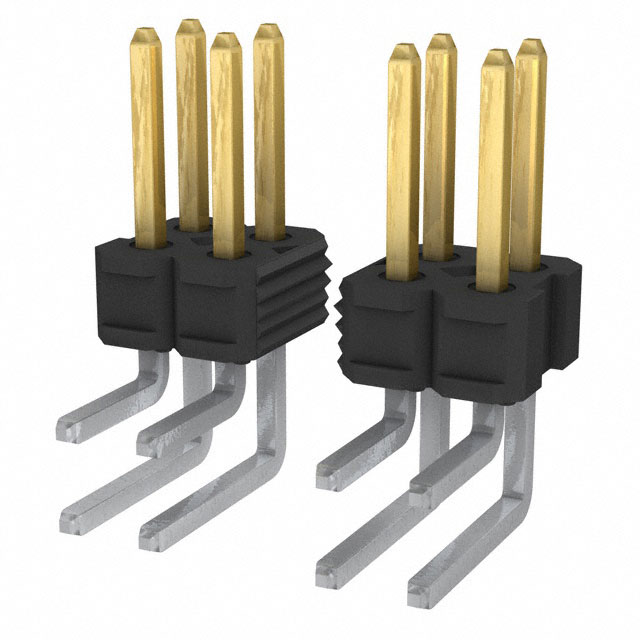

Amphenol ICC (FCI) 76350-104-72LF	72	2	Unshrouded	0.23 in	5.84 mm	Phosphor Bronze	0.12 in	3.05 mm	Thermoplastic	All	UL94 V-0	Square	Solder	Black	Push-Pull	Through Hole Right Angle	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold GXT™	Male Pin	Header	30 Áin	0.76 Ám
Amphenol ICC (FCI) 76350-304-08LF	8	2	Unshrouded	0.23 in	5.84 mm	Phosphor Bronze	0.12 in	3.05 mm	Thermoplastic	All	UL94 V-0	Square	Solder	Black	Push-Pull	Through Hole Right Angle	0.1 in	2.54 mm	2.54 mm	0.1 in		Male Pin	Header	78.7 µin	2 µm
Amphenol ICC (FCI) 76350-304-36LF	36	2	Unshrouded	0.23 in	5.84 mm	Phosphor Bronze	0.12 in	3.05 mm	Thermoplastic	All	UL94 V-0	Square	Solder	Black	Push-Pull	Through Hole Right Angle	0.1 in	2.54 mm	2.54 mm	0.1 in		Male Pin	Header	78.7 µin	2 µm
Amphenol ICC (FCI) 76350-120-26LF	26	2	Unshrouded		13 mm	Phosphor Bronze			Thermoplastic	All	UL94 V-0	Square	Solder	Black	Push-Pull	Through Hole Right Angle	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold GXT™	Male Pin	Header	30 Áin	0.76 Ám	3.23 mm	0.127 in	0.512 "

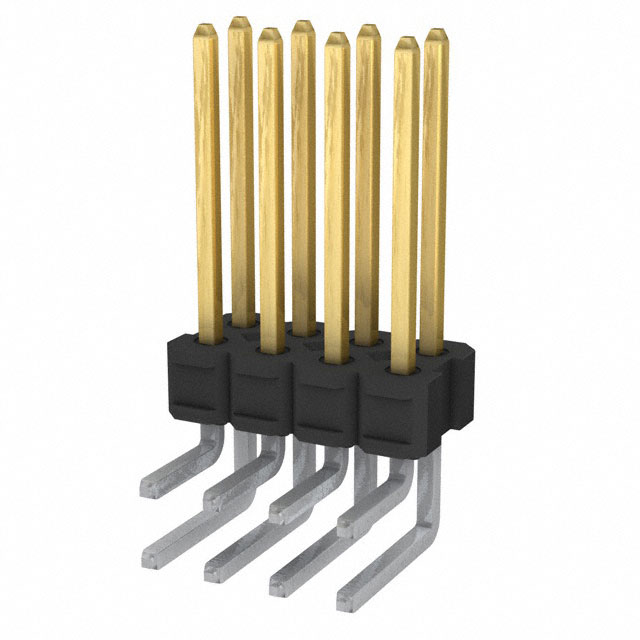

Amphenol ICC (FCI) 76350-110-08	8	2	Unshrouded		10.89 mm	Phosphor Bronze	0.12 in	3.05 mm	Thermoplastic	All	UL94 V-0	Square	Solder	Black	Push-Pull	Through Hole Right Angle	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold GXT™	Male Pin	Header	30 Áin	0.76 Ám			0.429 "
Amphenol ICC (FCI) 76350-104-10LF	10	2	Unshrouded	0.23 in	5.84 mm	Phosphor Bronze	0.12 in	3.05 mm	Thermoplastic	All	UL94 V-0	Square	Solder	Black	Push-Pull	Through Hole Right Angle	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold GXT™	Male Pin	Header	30 Áin	0.76 Ám

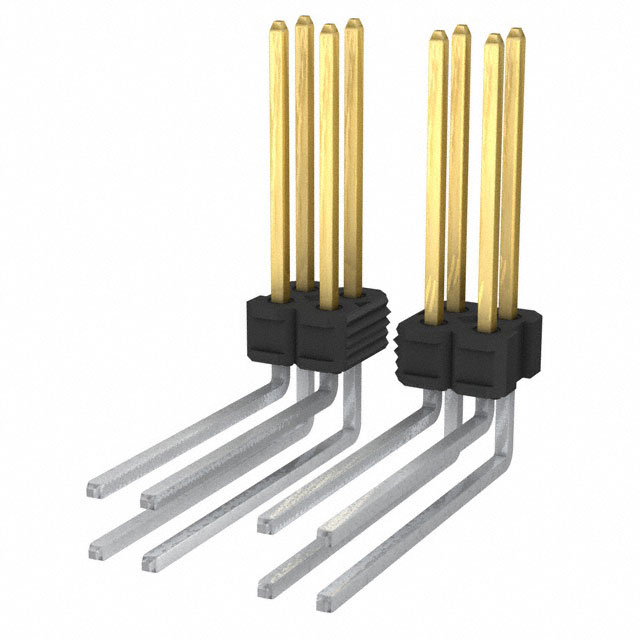

Amphenol ICC (FCI) 76350-107-72	72	2	Unshrouded		12.32 mm	Phosphor Bronze			Thermoplastic	All	UL94 V-0	Square	Solder	Black	Push-Pull	Through Hole Right Angle	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold GXT™	Male Pin	Header	30 Áin	0.76 Ám	13.39 mm	0.527 in	0.485 "
Amphenol ICC (FCI) 76350-304-10	10	2	Unshrouded	0.23 in	5.84 mm	Phosphor Bronze	0.12 in	3.05 mm	Thermoplastic	All	UL94 V-0	Square	Solder	Black	Push-Pull	Through Hole Right Angle	0.1 in	2.54 mm	2.54 mm	0.1 in		Male Pin	Header	150 Áin	3.81 Ám
Amphenol ICC (FCI) 76350-107-72LF	72	2	Unshrouded		12.32 mm	Phosphor Bronze			Thermoplastic	All	UL94 V-0	Square	Solder	Black	Push-Pull	Through Hole Right Angle	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold GXT™	Male Pin	Header	30 Áin	0.76 Ám	13.39 mm	0.527 in	0.485 "
Amphenol ICC (FCI) 76350-106-10LF	10	2	Unshrouded		10.72 mm	Phosphor Bronze			Thermoplastic	All	UL94 V-0	Square	Solder	Black	Push-Pull	Through Hole Right Angle	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold GXT™	Male Pin	Header	30 Áin	0.76 Ám	13.39 mm	0.527 in	0.422 in
