1079 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

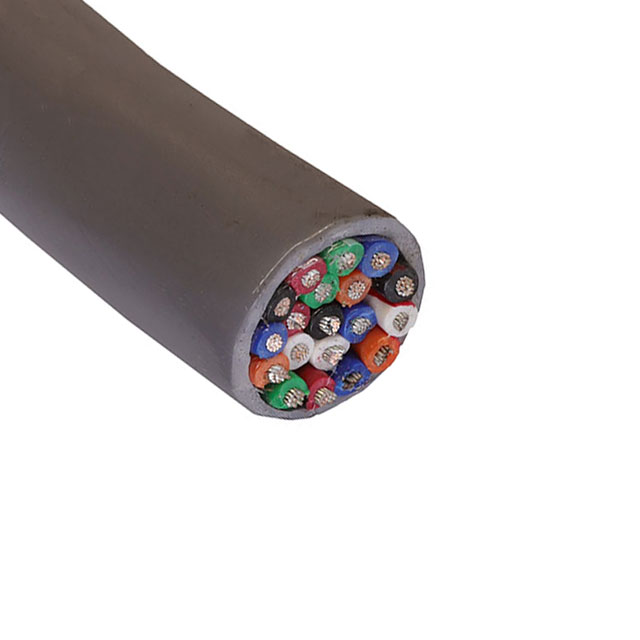

CABLE 19COND 16AWG SLATE
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Wire Gauge | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Usage | Length [x] | Length [x] | Jacket Color | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Conductor Strand [custom] | Conductor Strand [diameter] | Conductor Insulation | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 19.03 mm | 0.749 in | Poly-Vinyl Chloride (PVC) | 16 AWG | Copper Tinned | 80 °C | -20 ░C | 19 | Communication Control | 100 ft | 30.5 m | Slate | Multi-Conductor | 1.651 mm | 0.065 in | 19 | 0.0117 in | Poly-Vinyl Chloride (PVC) | 600 V |
