630-11W Series
Manufacturer: EDAC Inc.
Beta
⌘K

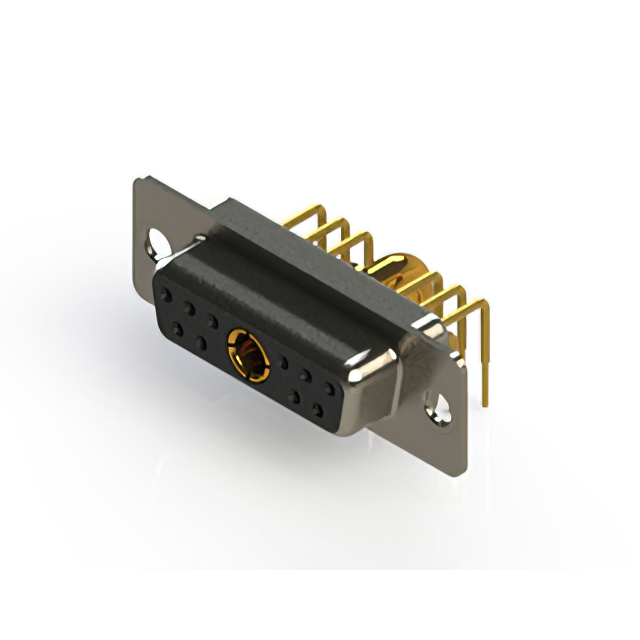

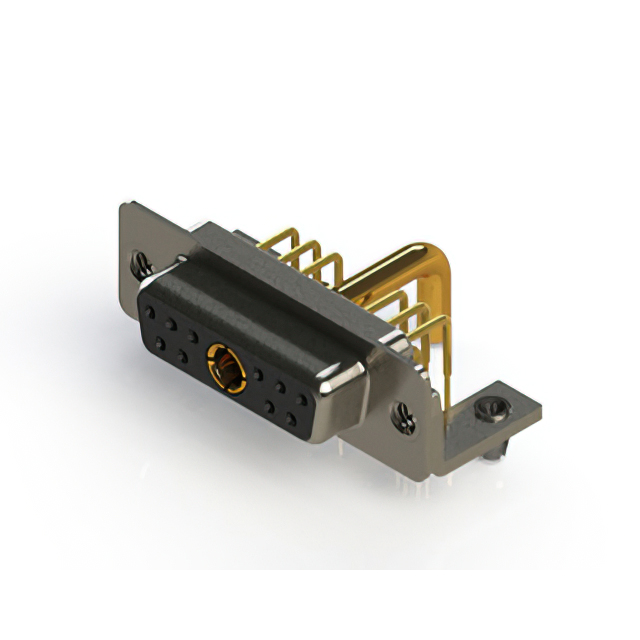

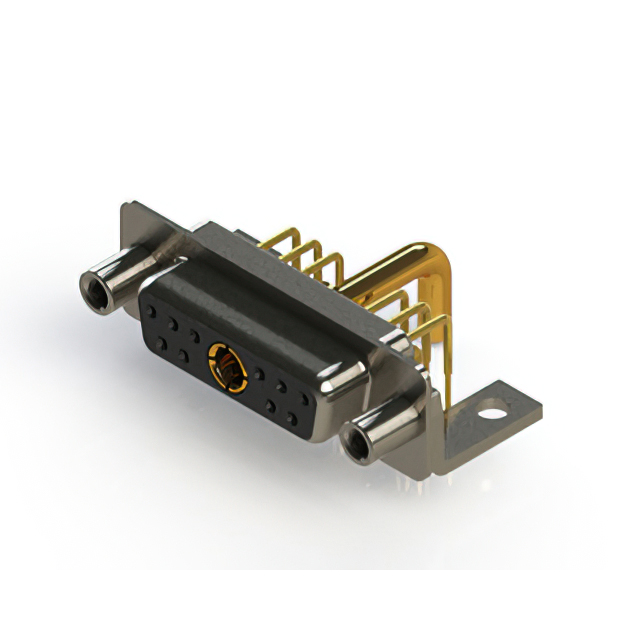

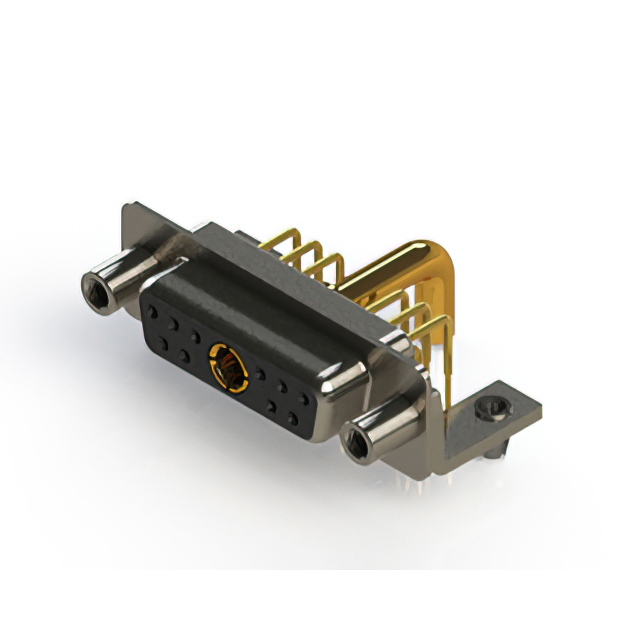

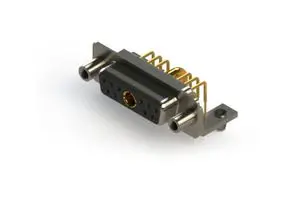

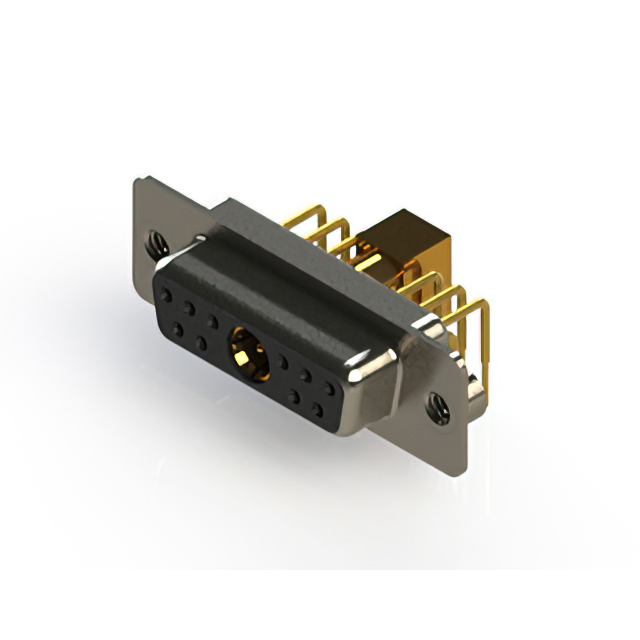

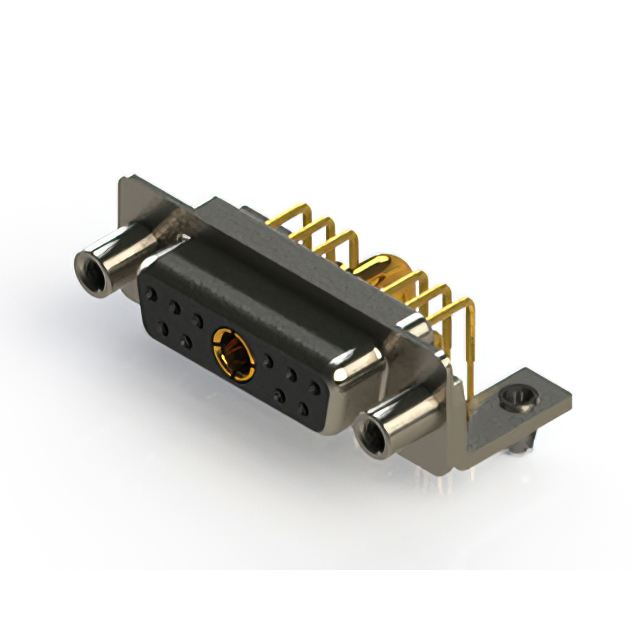

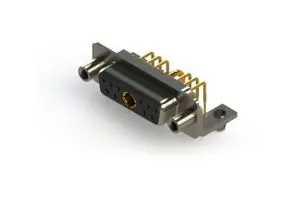

CONN D-SUB RCPT 11POS R/A SLDR
| Part | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Color | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Contact Type | Shell Size, Connector Layout | Termination | Connector Style | Features | Backset Spacing | Backset Spacing | Current Rating (Amps) | Number of Positions [custom] | Number of Positions [custom] | Material Flammability Rating | Connector Type | Contact Finish | Mounting Type | Contact Finish Thickness | Current Rating (Amps) | Shell Material, Finish | Flange Feature | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | 125 VDC | Black | 2 | 30 Áin | 0.76 Ám | M3 | Signal and Power | 2 (DA A) - 11C1 11W1 | Solder | Combo D-Sub | Board Lock Mounting Brackets | 9.4 mm | 0.37 in | 20A 5A | 10 | 1 | UL94 V-0 | Receptacle Female Sockets | Gold | Right Angle Through Hole | ||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | 125 VDC | Black | 2 | 4-40 | Signal and Power | 2 (DA A) - 11C1 11W1 | Solder | Combo D-Sub | Board Lock Mounting Brackets | 9.4 mm | 0.37 in | 10 | 1 | UL94 V-0 | Receptacle Female Sockets | Gold | Right Angle Through Hole | Flash | 5 A 40 A | Nickel Plated Steel | ||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | 125 VDC | Black | 2 | M3 | Signal and Power | 2 (DA A) - 11C1 11W1 | Solder | Combo D-Sub | Mounting Brackets | 9.4 mm | 0.37 in | 20A 5A | 10 | 1 | UL94 V-0 | Receptacle Female Sockets | Gold | Right Angle Through Hole | Flash | Nickel Plated Steel | ||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | 125 VDC | Black | 2 | 30 Áin | 0.76 Ám | Board Side (M3) | Signal and Power | 2 (DA A) - 11C1 11W1 | Solder | Combo D-Sub | 9.4 mm | 0.37 in | 10 | 1 | UL94 V-0 | Receptacle Female Sockets | Gold | Right Angle Through Hole | 5 A 40 A | |||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | 125 VDC | Black | 2 | 30 Áin | 0.76 Ám | Housing/Shell (Unthreaded) | Signal and Power | 2 (DA A) - 11C1 11W1 | Solder | Combo D-Sub | Shielded | 9.4 mm | 0.37 in | 10 | 1 | UL94 V-0 | Receptacle Female Sockets | Gold | Right Angle Through Hole | 5 A 30 A | ||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | 125 VDC | Black | 2 | Housing/Shell | Signal and Power | 2 (DA A) - 11C1 11W1 | Solder | Combo D-Sub | Board Lock Mounting Brackets | 9.4 mm | 0.37 in | 10 | 1 | UL94 V-0 | Receptacle Female Sockets | Gold | Right Angle Through Hole | Flash | 5 A 40 A | 4-40 | ||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | 125 VDC | Black | 2 | Housing/Shell | Coax Signal | 2 (DA A) - 11C1 11W1 | Solder | Combo D-Sub | 9.4 mm | 0.37 in | UL94 V-0 | Receptacle Female Sockets | Gold | Right Angle Through Hole | Flash | Nickel Plated Steel | 4-40 | 1 | 10 | |||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | 125 VDC | Black | 2 | M3 | Signal and Power | 2 (DA A) - 11C1 11W1 | Solder | Combo D-Sub | Board Lock Mounting Brackets | 9.4 mm | 0.37 in | 10A 5A | 10 | 1 | UL94 V-0 | Receptacle Female Sockets | Gold | Right Angle Through Hole | Flash | Nickel Plated Steel | ||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | 125 VDC | Black | 2 | 4-40 | Signal and Power | 2 (DA A) - 11C1 11W1 | Solder | Combo D-Sub | Board Lock | 9.4 mm | 0.37 in | 10 | 1 | UL94 V-0 | Receptacle Female Sockets | Gold | Right Angle Through Hole | Flash | 5 A 30 A | Nickel Plated Steel | ||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | 125 VDC | Black | 2 | 30 Áin | 0.76 Ám | Housing/Shell (M3) | Signal and Power | 2 (DA A) - 11C1 11W1 | Solder | Combo D-Sub | Mounting Brackets | 9.4 mm | 0.37 in | 10 | 1 | UL94 V-0 | Receptacle Female Sockets | Gold | Right Angle Through Hole | 5 A 40 A |
