DC12.4232 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Switch Features | Connector Style | Approval Agency | Features | Accomodates a Fuse | Current Rating - Appliance Inlet | Mounting Type | Current Rating - Filter | Panel Thickness [Max] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Min] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Filter Type | Voltage Rating - Appliance Inlet | Ingress Protection | Termination | Termination | Termination | Connector Type | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

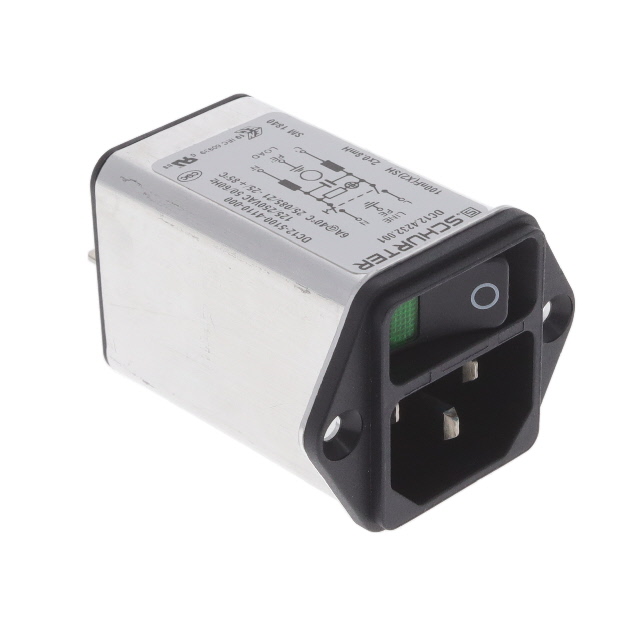

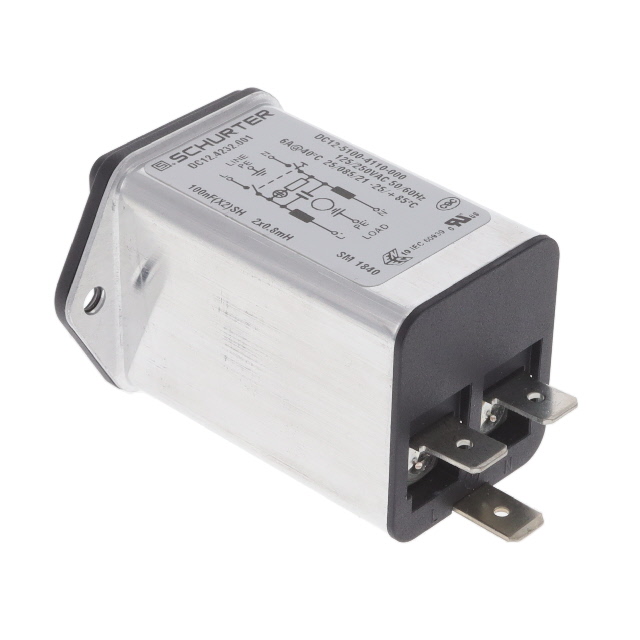

 SCHURTER Inc. | Illuminated Switch On-Off | IEC 320-C14 | CQC cULus ENEC | Shielded V-Lock Notch | 10 A | Panel Mount Snap-In | 6 A | 0.118 in | 3 mm | 1 mm | 0.039 in | 33.1 mm | 29.4 mm | Filtered (EMI RFI) - Commercial Medical | 250 VAC | IP40 | 6.3 mm | Quick Connect | 0.25 " | Receptacle Male Blades - Module | UL94 V-0 | |

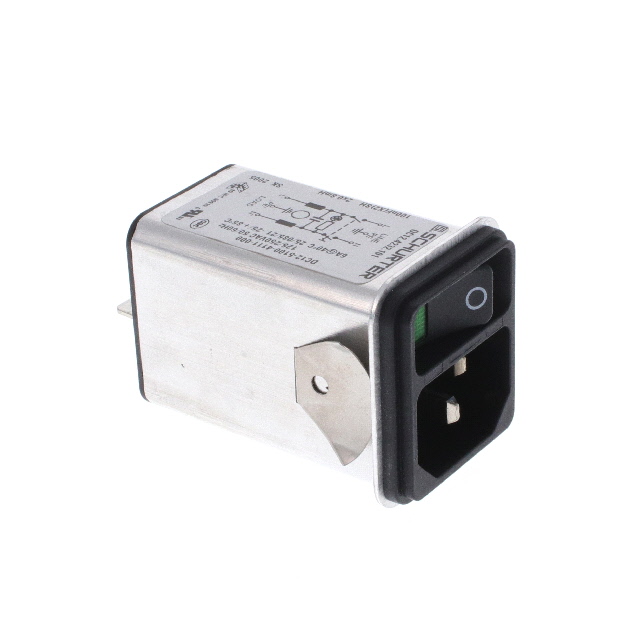

 SCHURTER Inc. | Shielded V-Lock Notch | Flange Panel Mount | 6.3 mm | Quick Connect | 0.25 " | Receptacle Male Pins - Module |
