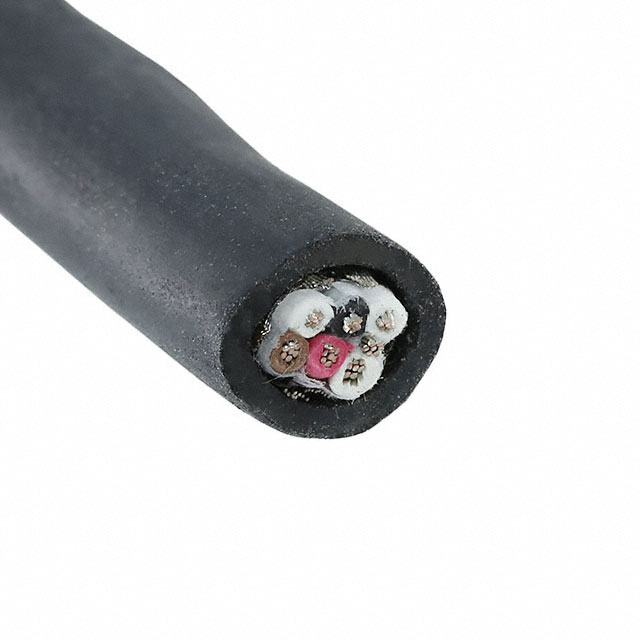

25123 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 6COND 22AWG 1000'
| Part | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Ratings | Jacket Color | Voltage | Conductor Insulation | Jacket (Insulation) Material | Length | Length | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Features | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned SuprashieldÛ | 90 °C | -30 ░C | 70 % 100 % | 6.93 mm | 0.273 " | Multi-Pair | 22 AWG | 30 AWG | 7 | Braid Foil | ISO 10993 UL Style 20668 | Orange | 300 VDC | Poly-Vinyl Chloride (PVC) | Polyurethane (PU) | 304.8 m | 1000 ft | Copper Tinned | 0.813 mm | 0.032 in | 6 | Biological Compatibility Drain Wire Rip Cord | ||
 ALPHA WIRE | Copper Tinned Suprashield® | 90 °C | -30 ░C | 70 % 100 % | 6.93 mm | 0.273 " | Multi-Pair | 22 AWG | 30 AWG | 7 | Braid Foil | ISO 10993 UL Style 20668 | Black | 300 VDC | Poly-Vinyl Chloride (PVC) | Polyurethane (PU) | Copper Tinned | 0.813 mm | 0.032 in | 6 | Biological Compatibility Drain Wire Rip Cord | 100 ft | 30.5 m |
