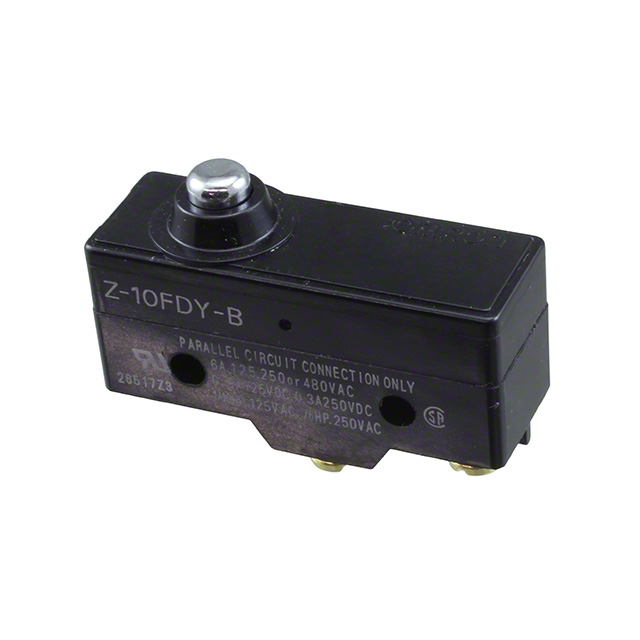

Z-10FDY Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACTION SPDT 10A 125V
| Part | Pretravel | Pretravel | Switch Function | Actuator Type | Differential Travel | Differential Travel | Release Force | Operating Position | Operating Position | Operating Force [Min] | Operating Force [Max] | Voltage Rating - DC | Current Rating (Amps) | Overtravel [custom] | Overtravel [custom] | Termination Style | Mounting Type | Mechanical Life | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Electrical Life | Circuit | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 0.8 mm | 0.03 " | On-Mom | Round (Pin Plunger) | 0.1 mm | 0.004 in | 114 gf | 21.5 mm | 0.846 in | 455 gf | 740 gf | 30 V | 10 A | 0.062 " | 1.6 mm | Screw Terminal | Chassis Mount | 500000 Cycles | -25 °C | 80 °C | IP00 | 100000 Cycles | SPDT (DB/DM) | 125 V |
