SBH41 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 80POS 1.27MM

Part	Contact Finish Thickness - Post	Material Flammability Rating	Contact Type	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Finish - Post	Mounting Type	Contact Finish - Mating	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Features	Style	Fastening Type	Connector Type	Number of Positions Loaded	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Finish Thickness - Mating	Contact Material	Insulation Color	Mated Stacking Heights	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions SBH41-NBPB-D40-RA-BK	Flash	UL94 V-0	Male Pin	0.323 in	8.2 mm	-40 C	105 ░C	2	Solder	0.1 in	2.54 mm	80	Gold	Right Angle Through Hole	Gold	Shrouded - 4 Wall	0.106 in	2.69 mm	Keying Slot	Board to Cable/Wire	Push-Pull	Header	All	Nylon 9T Polyamide (PA9T)	1.27 mm	0.05 in	Square	Flash	Brass	Black
Sullins Connector Solutions SBH41-NBPB-D30-RA-BK	Flash	UL94 V-0	Male Pin	0.323 in	8.2 mm	-40 C	105 ░C	2	Solder	0.1 in	2.54 mm	60	Gold	Right Angle Through Hole	Gold	Shrouded - 4 Wall	0.106 in	2.69 mm	Keying Slot	Board to Cable/Wire	Push-Pull	Header	All	Nylon 9T Polyamide (PA9T)	1.27 mm	0.05 in	Square	Flash	Brass	Black

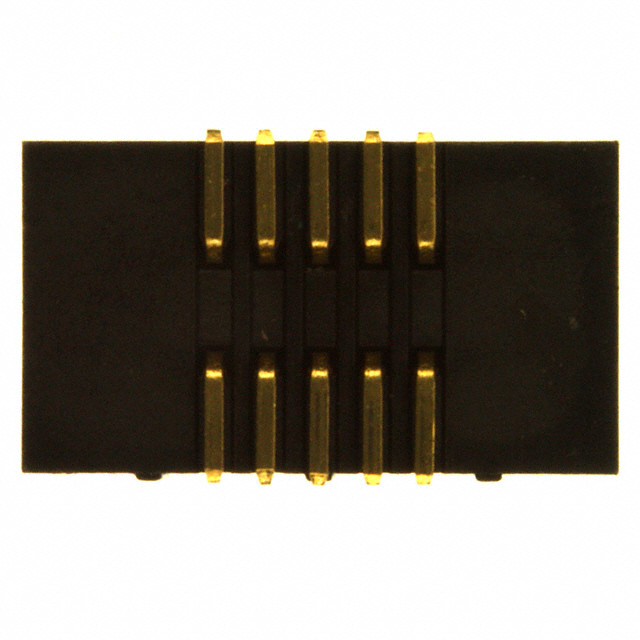

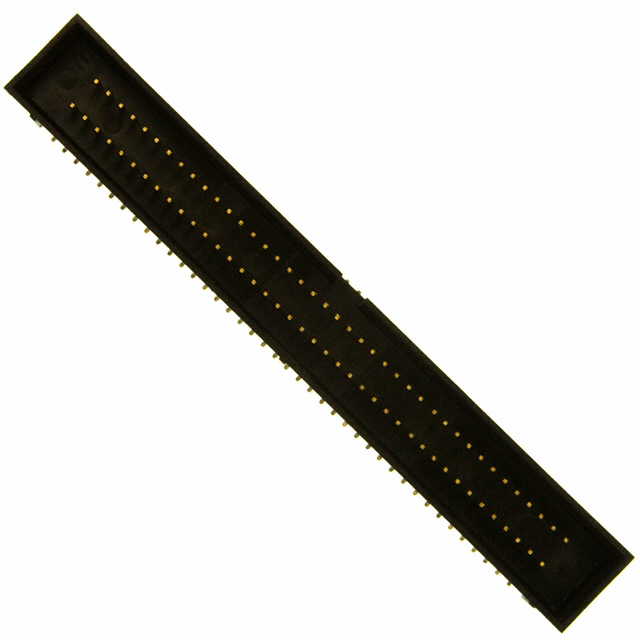

Sullins Connector Solutions SBH41-NBPB-D05-SM-BK	Flash	UL94 V-0	Male Pin			-40 C	105 ░C	2	Solder	0.1 in	2.54 mm	10	Gold	Surface Mount	Gold	Shrouded - 4 Wall			Keying Slot	Board to Cable/Wire	Push-Pull	Header	All	Nylon 9T Polyamide (PA9T)	1.27 mm	0.05 in	Square	Flash	Brass	Black	7.1 mm 10.4 mm 13.1 mm	0.228 "	5.8 mm

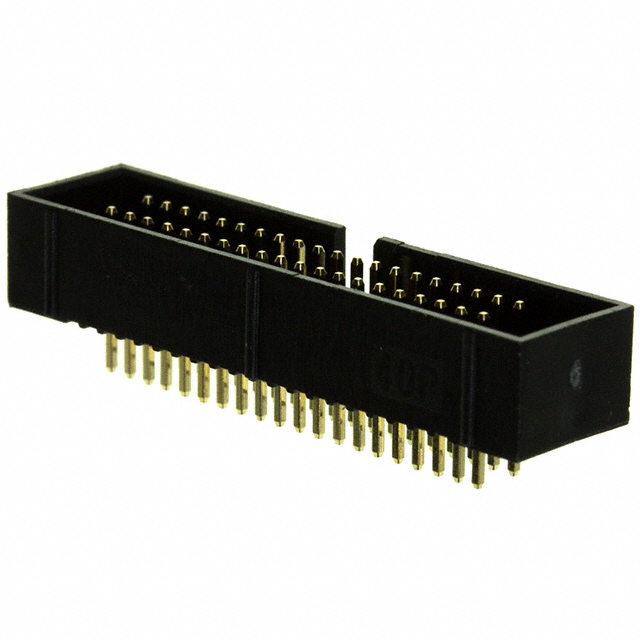

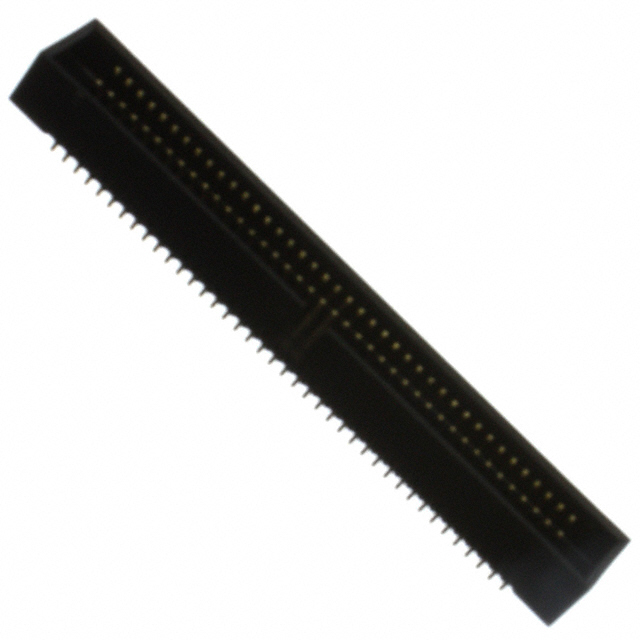

Sullins Connector Solutions SBH41-NBPB-D20-ST-BK	Flash	UL94 V-0	Male Pin			-40 C	105 ░C	2	Solder	0.1 in	2.54 mm	40	Gold	Through Hole	Gold	Shrouded - 4 Wall			Keying Slot	Board to Cable/Wire	Push-Pull	Header	All	Nylon 9T Polyamide (PA9T)	1.27 mm	0.05 in	Square	Flash	Brass	Black	7.1 mm 9.7 mm 12.4 mm	0.228 "	5.8 mm	0.118 in	3 mm
Sullins Connector Solutions SBH41-NBPB-D08-RA-BK	Flash	UL94 V-0	Male Pin	0.323 in	8.2 mm	-40 C	105 ░C	2	Solder	0.1 in	2.54 mm	16	Gold	Right Angle Through Hole	Gold	Shrouded - 4 Wall	0.106 in	2.69 mm	Keying Slot	Board to Cable/Wire	Push-Pull	Header	All	Nylon 9T Polyamide (PA9T)	1.27 mm	0.05 in	Square	Flash	Brass	Black
Sullins Connector Solutions SBH41-NBPB-D07-RA-BK	Flash	UL94 V-0	Male Pin	0.323 in	8.2 mm	-40 C	105 ░C	2	Solder	0.1 in	2.54 mm	14	Gold	Right Angle Through Hole	Gold	Shrouded - 4 Wall	0.106 in	2.69 mm	Keying Slot	Board to Cable/Wire	Push-Pull	Header	All	Nylon 9T Polyamide (PA9T)	1.27 mm	0.05 in	Square	Flash	Brass	Black

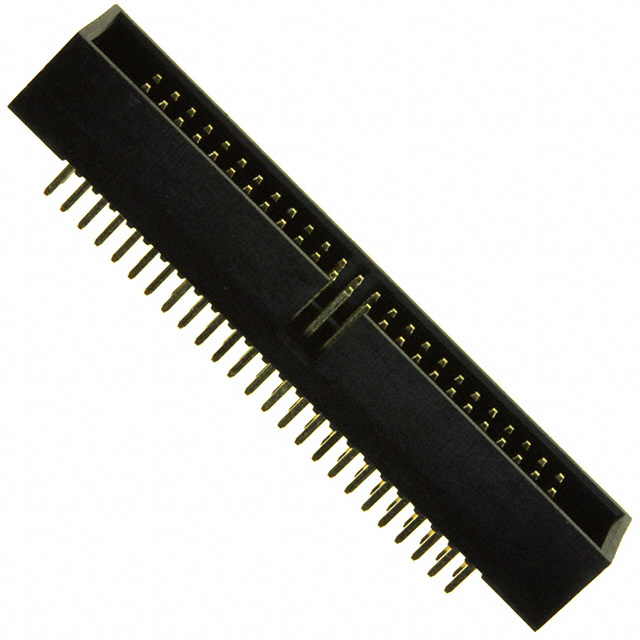

Sullins Connector Solutions SBH41-NBPB-D25-ST-BK	Flash	UL94 V-0	Male Pin			-40 C	105 ░C	2	Solder	0.1 in	2.54 mm	50	Gold	Through Hole	Gold	Shrouded - 4 Wall			Keying Slot	Board to Cable/Wire	Push-Pull	Header	All	Nylon 9T Polyamide (PA9T)	1.27 mm	0.05 in	Square	Flash	Brass	Black	7.1 mm 9.7 mm 12.4 mm	0.228 "	5.8 mm	0.118 in	3 mm

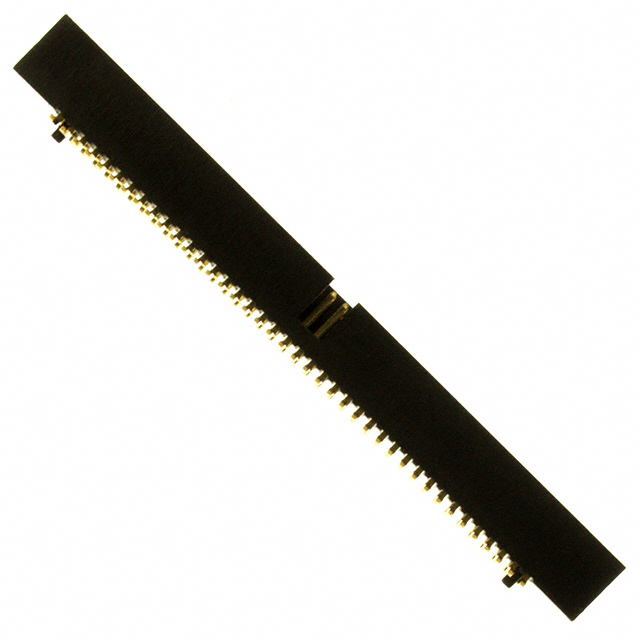

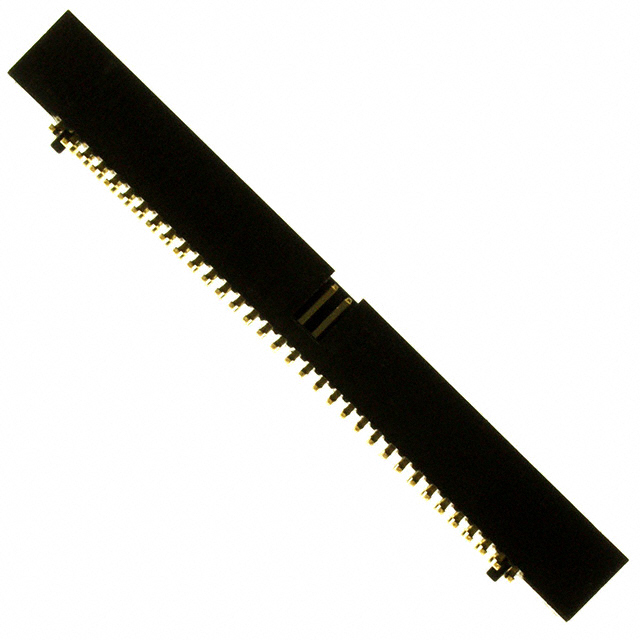

Sullins Connector Solutions SBH41-NBPB-D40-SP-BK	Flash	UL94 V-0	Male Pin			-40 C	105 ░C	2	Solder	0.1 in	2.54 mm	80	Gold	Surface Mount	Gold	Shrouded - 4 Wall			Board Guide Keying Slot	Board to Cable/Wire	Push-Pull	Header	All	Nylon 9T Polyamide (PA9T)	1.27 mm	0.05 in	Square	Flash	Brass	Black	7.1 mm 10.4 mm 13.1 mm	0.228 "	5.8 mm

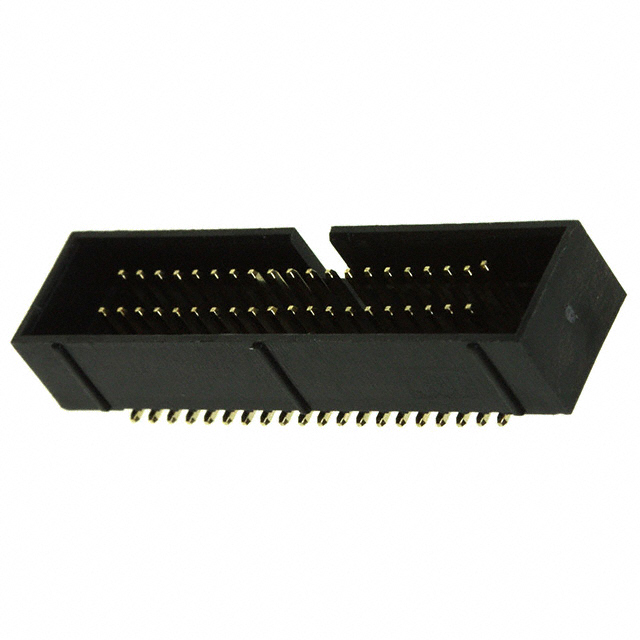

Sullins Connector Solutions SBH41-NBPB-D20-SP-BK	Flash	UL94 V-0	Male Pin			-40 C	105 ░C	2	Solder	0.1 in	2.54 mm	40	Gold	Surface Mount	Gold	Shrouded - 4 Wall			Board Guide Keying Slot	Board to Cable/Wire	Push-Pull	Header	All	Nylon 9T Polyamide (PA9T)	1.27 mm	0.05 in	Square	Flash	Brass	Black	7.1 mm 10.4 mm 13.1 mm	0.228 "	5.8 mm
Sullins Connector Solutions SBH41-NBPB-D15-ST-BK	Flash	UL94 V-0	Male Pin			-40 C	105 ░C	2	Solder	0.1 in	2.54 mm	30	Gold	Through Hole	Gold	Shrouded - 4 Wall			Keying Slot	Board to Cable/Wire	Push-Pull	Header	All	Nylon 9T Polyamide (PA9T)	1.27 mm	0.05 in	Square	Flash	Brass	Black	7.1 mm 9.7 mm 12.4 mm	0.228 "	5.8 mm	0.118 in	3 mm
