6609036 Series

Catalog

LINE FILTER 250VAC 40A CHASSIS

Part	Termination Style	Approval Agency	Frequency - Operating [Max]	Frequency - Operating [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Mounting Type	Filter Type	Configuration	Current	Voltage - Rated AC	Inductance

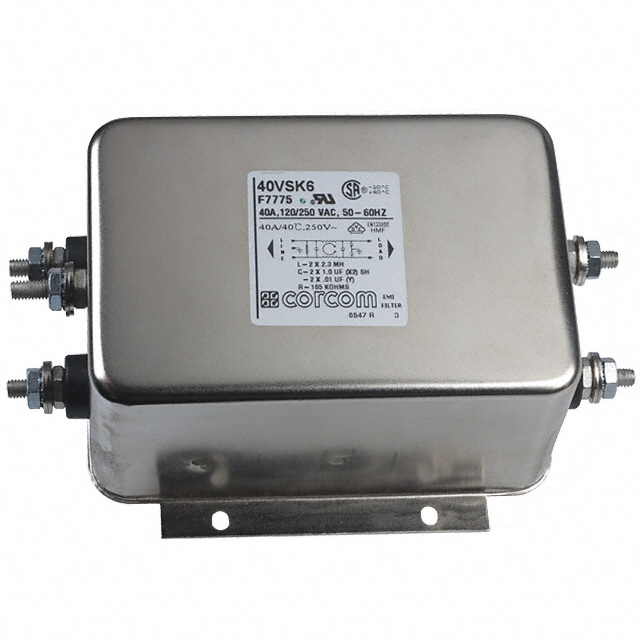

TE Connectivity Corcom Filters 1-6609036-6	Threaded Post (10-32)	CSA UR VDE	60 Hz	50 Hz	40 °C	-10 °C	General Purpose	Chassis Mount	Single Phase	Single Stage	40 A	250 V	2.3 mH
TE Connectivity Corcom Filters 6609036-9	Quick Connect	CSA UR VDE	60 Hz	50 Hz	40 °C	-10 °C	General Purpose	Chassis Mount	Single Phase	Single Stage	10 A	250 V	7.13 mH
TE Connectivity Corcom Filters 1-6609036-4	Threaded Post (10-32)	CSA UR VDE	60 Hz	50 Hz	40 °C	-10 °C	General Purpose	Chassis Mount	Single Phase	Single Stage	30 A	250 V	1.73 mH
TE Connectivity Corcom Filters 6609036-7	IEC 320-C14 Quick Connect	CSA UR VDE	60 Hz	50 Hz	40 °C	-10 °C	General Purpose	Chassis Mount	Single Phase	Single Stage	6 A	250 V	8.73 mH
TE Connectivity Corcom Filters 6609036-3	IEC 320-C14 Quick Connect	CSA UR VDE	60 Hz	50 Hz	40 °C	-10 °C	General Purpose	Chassis Mount	Single Phase	Single Stage	3 A	250 V
