FMS.2M Series
Manufacturer: LEMO
Beta
⌘K

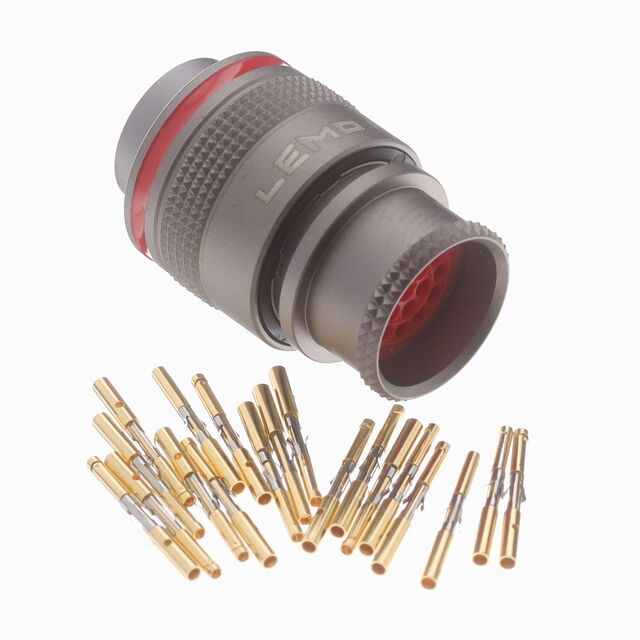

CONN PLUG FMALE 19POS GOLD CRIMP
| Part | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Connector Type | Mounting Type | Shell Material | Cable Opening | Cable Opening | Contact Finish - Mating | Features | Ingress Protection | Shielding | Contact Material | Orientation | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Finish | Shell Size - Insert | Primary Material | Number of Positions | Color | Current Rating (Amps) | Insert Material | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | Crimp | 200 °C | -55 C | Threaded | Plug Female Sockets | Free Hanging (In-Line) | Aluminum Alloy | 13 mm | 0.512 in | Gold | Coupling Nut | IP68 - Dust Tight Waterproof | Shielded | Bronze | S | 1.5 Ám | 59 Áin | Nickel | 319 | Metal | 19 | Gray | 4 A | Polyetheretherketone (PEEK) | Aerospace Automotive Aviation Military |
