FI-JW50 Series
Manufacturer: JAE Electronics
Beta
⌘K

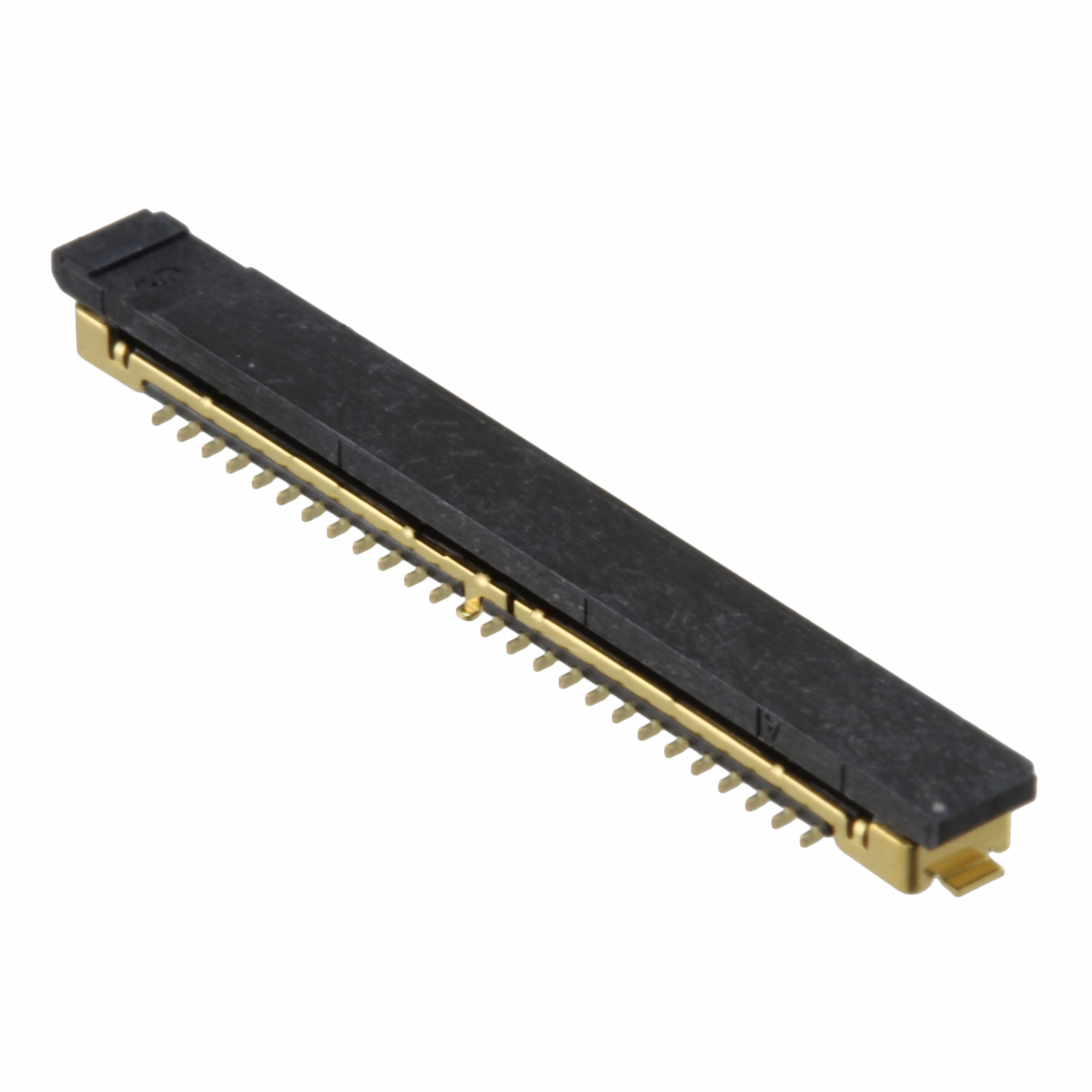

CONN RCPT 50POS 0.012 GOLD SMD
| Part | Contact Material | Insulation Material | Contact Finish Thickness - Post | Current Rating (Amps) | Contact Finish - Post | Connector Type | Insulation Color | Contact Finish - Mating | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Fastening Type | Features | Style | Contact Type | Mated Stacking Heights | Number of Positions | Insulation Height | Insulation Height | Number of Rows | Number of Positions Loaded | Termination | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Accessory Type | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Copper Alloy | Plastic | Flash | 0.25 A | Gold | Receptacle | Black | Gold | Surface Mount | 0.012 in | 0.3 mm | 3.9 µin | 0.099 µm | 50 V | Friction Lock | Grounding Pins Pick and Place Solder Retention | Board to Cable/Wire | Non-Gendered | 1.65 mm | 50 | 1.6 mm | 0.063 in | 1 | All | Solder | UL94 V-0 | 85 °C | -40 C | ||

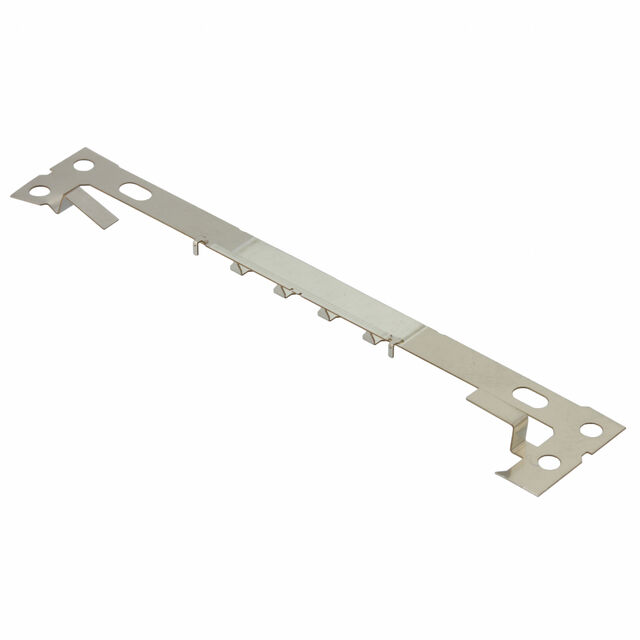

 JAE Electronics | 50 | Base Ground Bar | FI-JW Series | |||||||||||||||||||||||||||

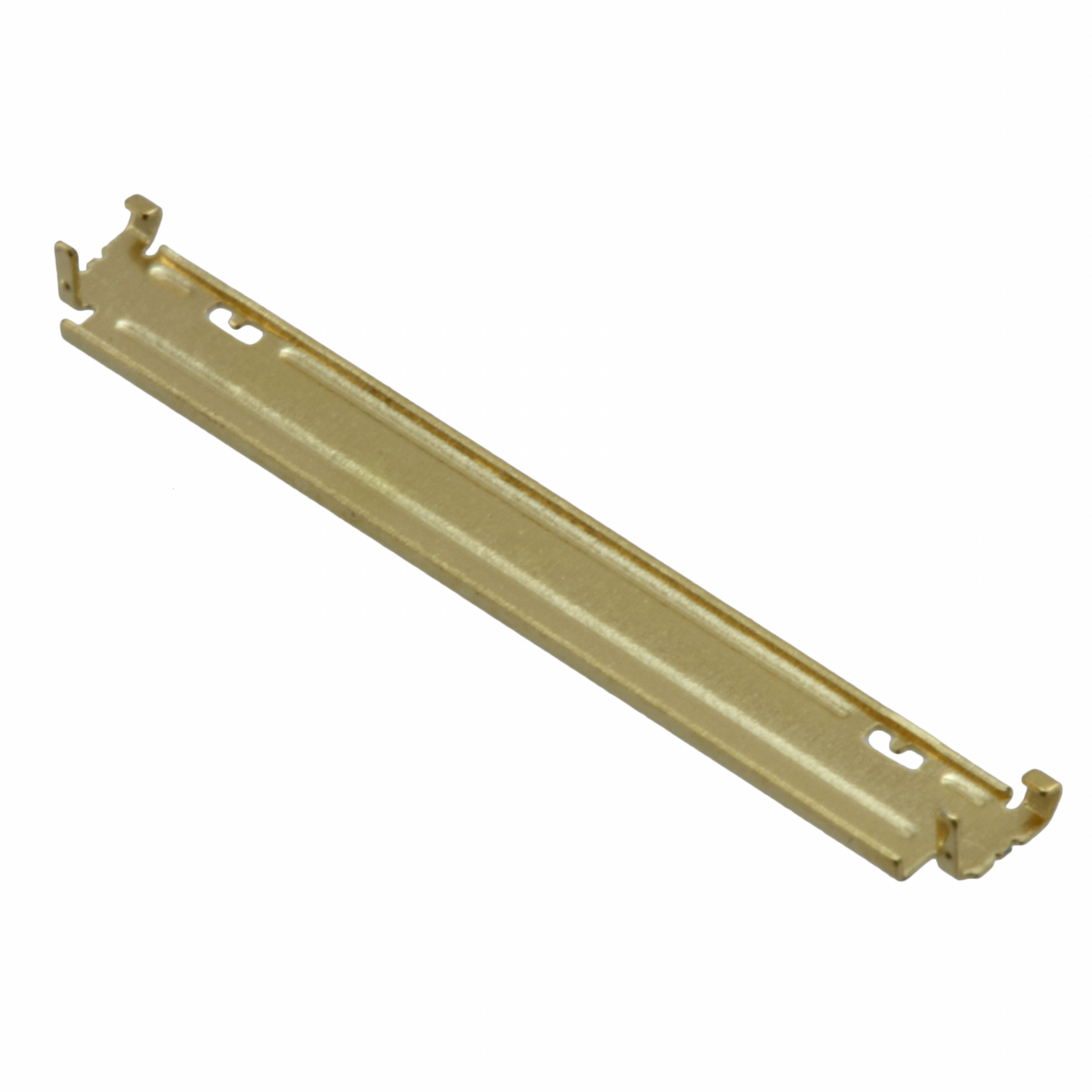

 JAE Electronics | 50 | Shell | FI-JW Series |
