103311 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER R/A 20POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Contact Finish - Mating	Contact Material	Current Rating (Amps)	Contact Finish - Post	Number of Positions	Fastening Type	Contact Length - Post [custom]	Contact Length - Post [custom]	Insulation Color	Connector Type	Termination	Style	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Material Flammability Rating	Contact Shape	Mounting Type

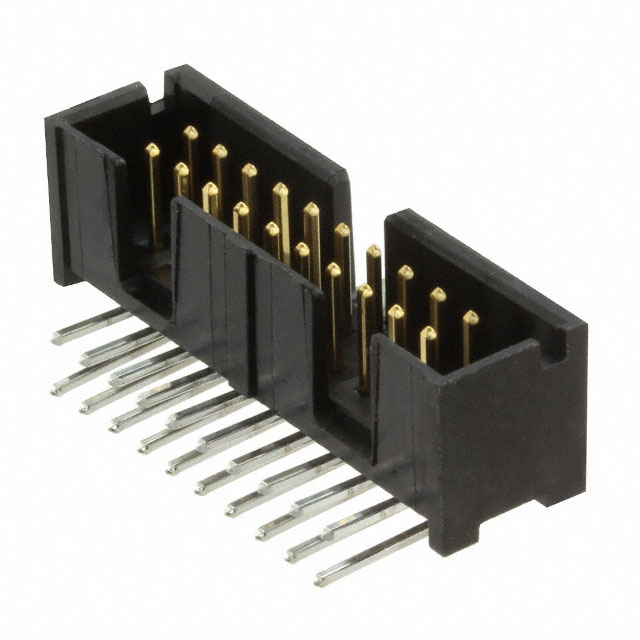

TE Connectivity AMP Connectors 103311-5	2.54 µm	100 µin	Keying Slot	Gold or Gold-Palladium	Brass	1 A	Tin-Lead	20	Push-Pull	0.135 in	3.43 mm	Black	Header	Solder	Board to Cable/Wire	105 ░C	-65 ░C	All	Shrouded - 4 Wall	0.76 Ám	30 Áin	0.1 "	2.54 mm	9.14 mm	0.36 in	Male Pin	0.24 in	6.1 mm	0.1 in	2.54 mm	2	UL94 V-0	Square	Right Angle Through Hole

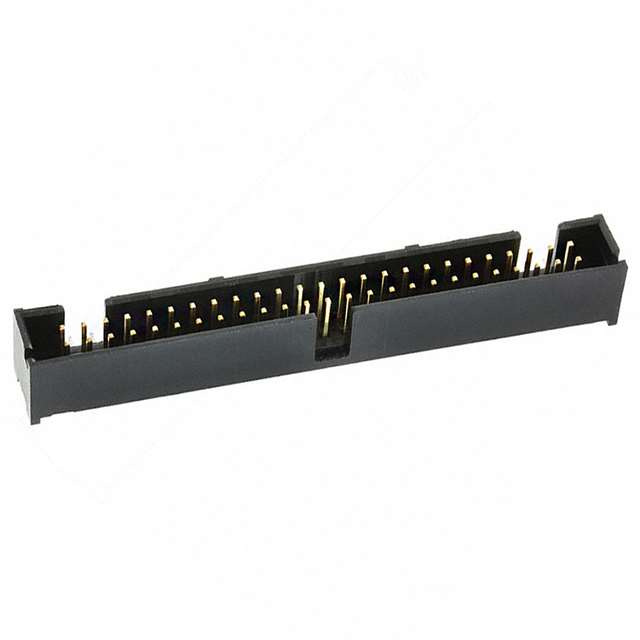

TE Connectivity AMP Connectors 1-103311-0	2.54 µm	100 µin	Keying Slot	Gold or Gold-Palladium	Brass	1 A	Tin-Lead	50	Push-Pull	0.135 in	3.43 mm	Black	Header	Solder	Board to Cable/Wire	105 ░C	-65 ░C	All	Shrouded - 4 Wall	0.76 Ám	30 Áin	0.1 "	2.54 mm	9.14 mm	0.36 in	Male Pin	0.24 in	6.1 mm	0.1 in	2.54 mm	2	UL94 V-0	Square	Right Angle Through Hole

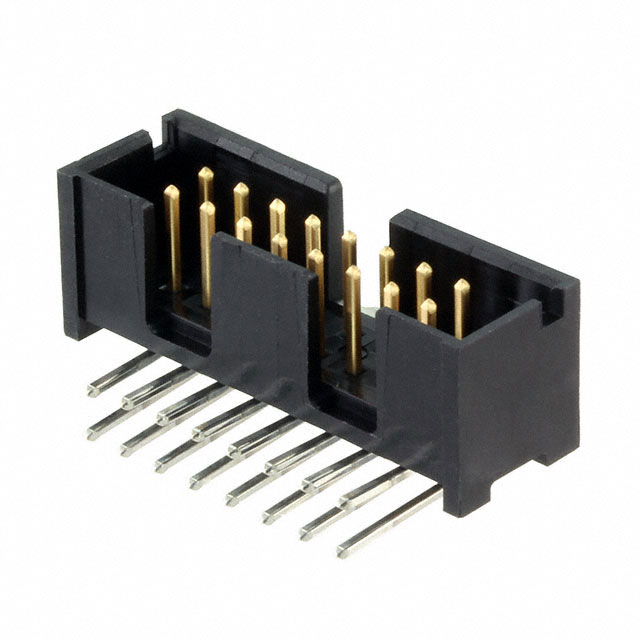

TE Connectivity AMP Connectors 103311-3	2.54 µm	100 µin	Keying Slot	Gold or Gold-Palladium	Brass	1 A	Tin-Lead	16	Push-Pull	0.135 in	3.43 mm	Black	Header	Solder	Board to Cable/Wire	105 ░C	-65 ░C	All	Shrouded - 4 Wall	0.76 Ám	30 Áin	0.1 "	2.54 mm	9.14 mm	0.36 in	Male Pin	0.24 in	6.1 mm	0.1 in	2.54 mm	2	UL94 V-0	Square	Right Angle Through Hole

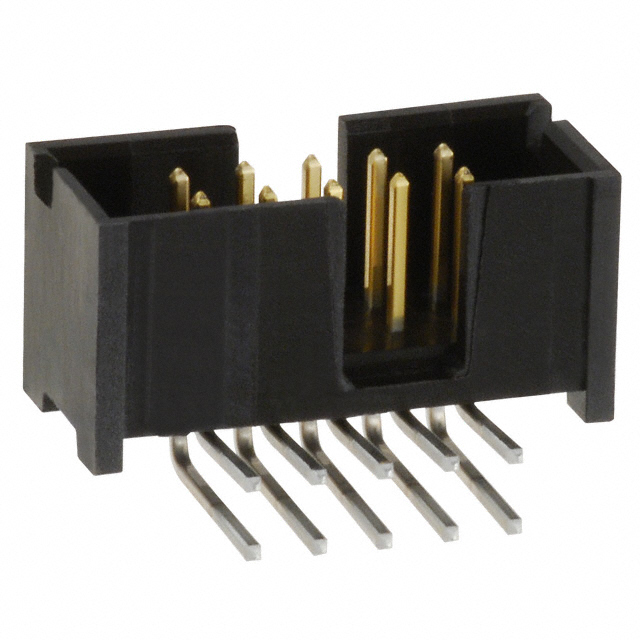

TE Connectivity AMP Connectors 103311-1	2.54 µm	100 µin		Gold or Gold-Palladium	Brass	1 A	Tin-Lead	10	Push-Pull	0.135 in	3.43 mm	Black	Header	Solder	Board to Cable/Wire	105 ░C	-65 ░C	All	Shrouded - 4 Wall	0.76 Ám	30 Áin	0.1 "	2.54 mm	9.14 mm	0.36 in	Male Pin	0.24 in	6.1 mm	0.1 in	2.54 mm	2	UL94 V-0	Square	Right Angle Through Hole
