AP10-331 Series
Manufacturer: Sifam Tinsley Instrumentation Inc
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

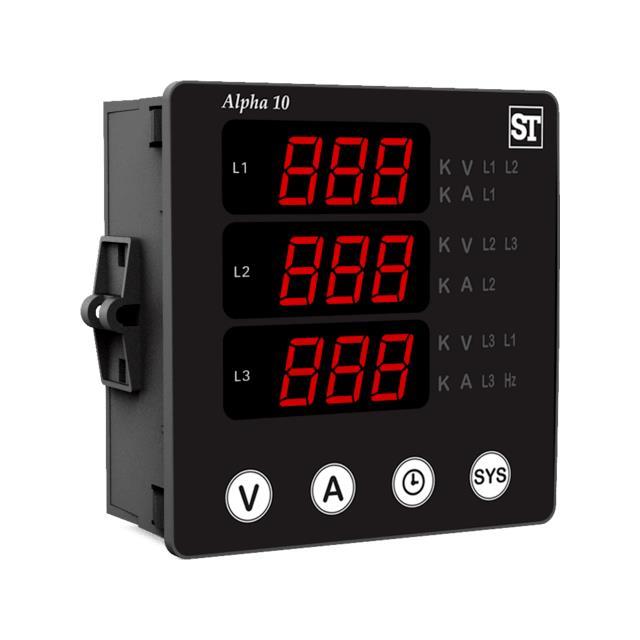

MULT METER 1-5A/100-500V LED PNL
| Part | Display Characters - Height | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Features | Termination Style | Measuring Range (Voltage) Maximum | Measuring Range (Voltage) Minimum | Measuring Range (Current) Minimum | Measuring Range (Current) Maximum | Type | Panel Cutout Width | Panel Cutout Shape | Panel Cutout Length | Output Type | Display Type | Mounting Type | Number of Characters Per Row (Row 2) | Number of Characters Per Row (Row 3) | Number of Characters Per Row (Row 1) | Ingress Protection IP Rating | Ingress Protection Description | Measuring Type | Operating Temperature (Max) | Operating Temperature (Min) | Ingress Protection (Front) | Ingress Protection (Rear) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sifam Tinsley Instrumentation Inc | 0.713 in | 40 VAC 300 VAC/DC | 30 V 40 V | Alpha 10 Multifunction Power Meter with Pulse Option | Screw Terminal | 500 VAC | 0 V 100 V | 1 A | 5 A | Ammeter Frequency Multifunction Meter (Current Power) Voltage Voltmeter | 92.8 mm | Square | 92.8 mm | Relay | LCD - Red Characters LED - Red Characters | Panel Mount | 3 characters 4 characters | 3 characters 4 characters | 3 characters 4 characters | IP54 | Dust Protected Water Resistant | Current (3-Phase) Voltage Wattage | 70 °C | -20 °C | IP65 | IP20 |
