HCME04 Series

Catalog

HARNESS CLIP EDGE MOUNT, .16" - .35" (4. ROHS COMPLIANT: YES

Part	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Type	Opening Size [Max]	Opening Size [Min]	Opening Size [Max]	Opening Size [Min]	Type Attributes	Material	Features	Color	Mounting Type	Panel Hole Size [y]	Panel Hole Size	Panel Hole Size [x]	Panel Hole Size [x]	Panel Hole Size [y]	Height [z]	Height [z]	Length	Length	Width [x]	Width [x]
Panduit Corp HCME04Y09-M30	3.99 mm	0.157 in	0.79 mm	0.031 "	Clip Wire Saddle	9 mm	0.157 in	0.354 in	4 mm	Webbed	Polyamide (PA66) Nylon 6/6	Heat Stabilized	Black	Clip On Edge Mount	11 mm	Rectangular	0.138 in	3.5 mm	0.433 in	19.2 mm	0.756 "	0.913 in	23.2 mm	10 mm	0.394 "

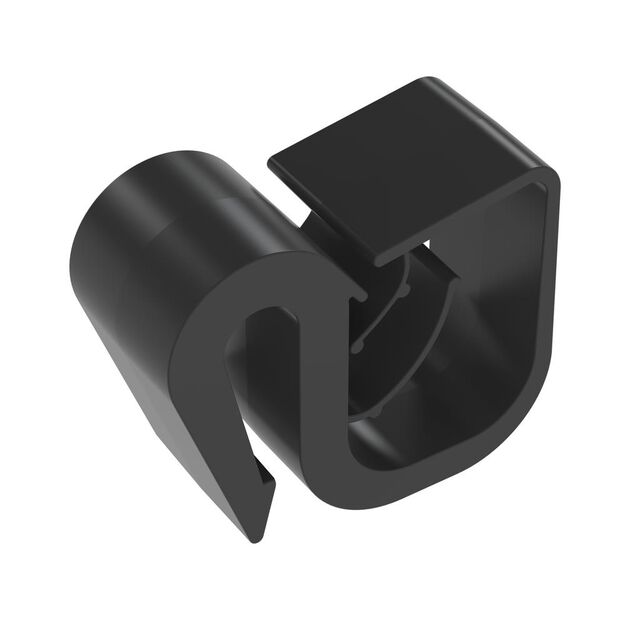

Panduit Corp HCME04Y09-M130					Clip Wire Saddle					Side Entry	Acetal	Weather Resistant	Black	Clip On Edge Mount						19.56 mm	0.77 "	0.87 in	22.1 mm	10 mm	0.394 "
