83609 Series
Manufacturer: Belden Inc.
Beta
⌘K

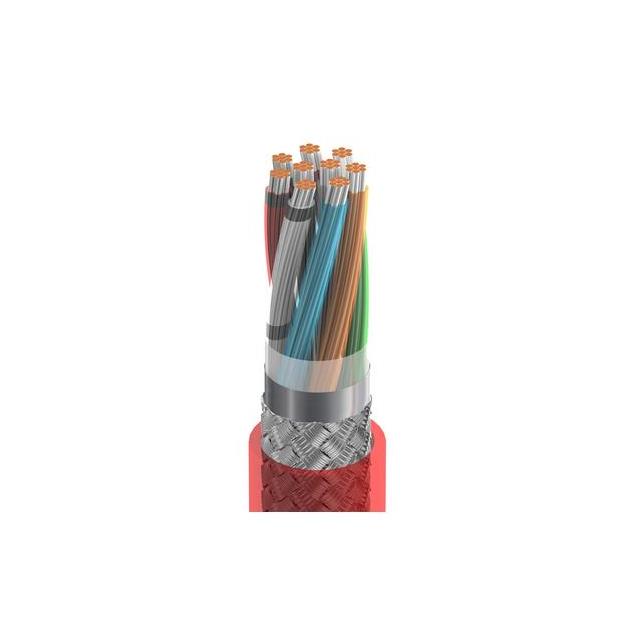

CABLE 9COND 20AWG RED SHLD
| Part | Shield Coverage | Shield Material | Conductor Insulation | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Voltage | Usage | Length [x] | Length [x] | Jacket (Insulation) Material | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Jacket Color | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | Fluorinated Ethylene-Propylene (FEP) | UL Style CMP | -70 °C | 200 °C | 20 AWG | 300 VDC | Audio Control Instrumentation | 100 ft | 30.5 m | Fluorinated Ethylene-Propylene (FEP) Plenum | Multi-Conductor | 0.014 in | 0.356 mm | 9 | 0.238 " | 6.05 mm | Braid Foil | Red | Copper Tinned | 28 AWG | 7 | ||
Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | Fluorinated Ethylene-Propylene (FEP) | UL Style CMP | -70 °C | 200 °C | 20 AWG | 300 VDC | Audio Control Instrumentation | Fluorinated Ethylene-Propylene (FEP) Plenum | Multi-Conductor | 0.014 in | 0.356 mm | 9 | 0.238 " | 6.05 mm | Braid Foil | Red | Copper Tinned | 28 AWG | 7 | 304.8 m | 1000 ft |
