MURTA300 Series

Catalog

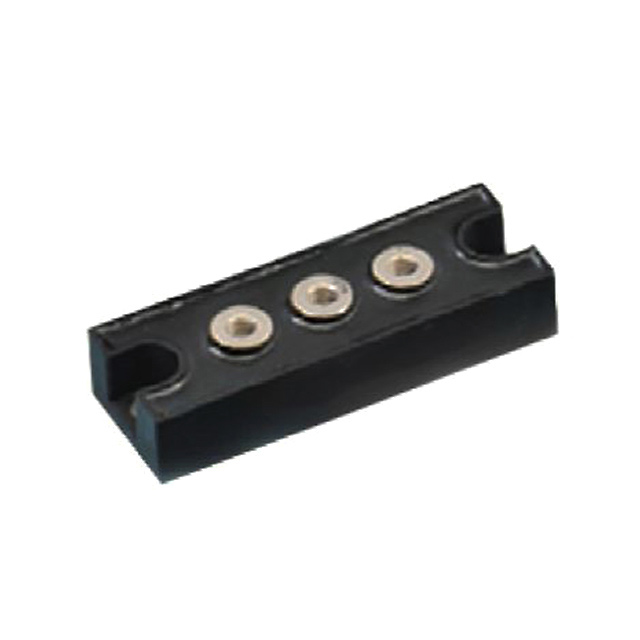

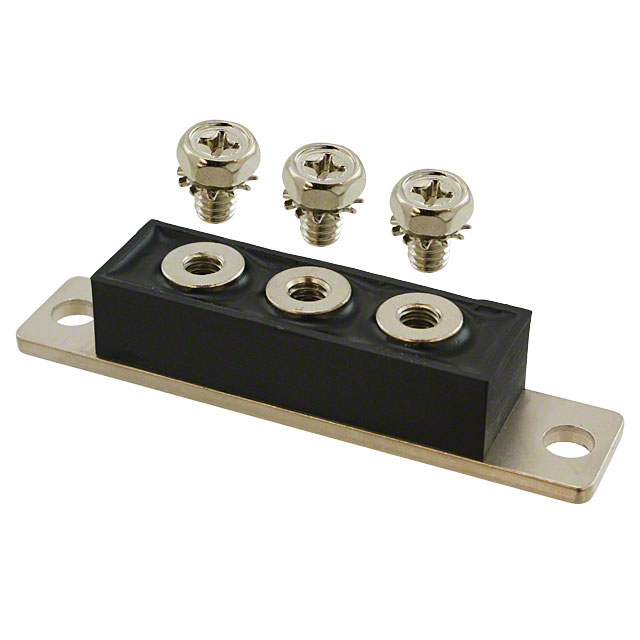

DIODE MODULE GP 600V 150A 3TOWER

Part	Diode Configuration	Supplier Device Package	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Voltage - Forward (Vf) (Max) @ If [Max]	Voltage - Forward (Vf) (Max) @ If	Technology	Mounting Type	Current - Average Rectified (Io) (per Diode)	Speed [Min]	Current - Reverse Leakage @ Vr
GeneSiC Semiconductor MURTA300120	1 Pair Common Cathode	Three Tower	-55 °C	150 °C	600 V	Three Tower	2.6 V	150 A	Standard	Chassis Mount	150 A	200 mA 500 ns	25 µA
GeneSiC Semiconductor MURTA30020R	1 Pair Common Anode	Three Tower	-55 °C	150 °C	200 V	Three Tower		1 V 150 A	Standard	Chassis Mount	150 A	200 mA 500 ns	25 µA
GeneSiC Semiconductor MURTA30060	1 Pair Common Cathode	Three Tower	-55 °C	150 °C	600 V	Three Tower	1.7 V		Standard	Chassis Mount	150 A	200 mA 500 ns	25 µA
GeneSiC Semiconductor MURTA30040R	1 Pair Common Anode	Three Tower	-55 °C	150 °C	400 V	Three Tower	1.3 V		Standard	Chassis Mount	150 A	200 mA 500 ns	25 µA
GeneSiC Semiconductor MURTA30040	1 Pair Common Cathode	Three Tower	-55 °C	150 °C	400 V	Three Tower	1.3 V		Standard	Chassis Mount	150 A	200 mA 500 ns	25 µA
GeneSiC Semiconductor MURTA30020	1 Pair Common Cathode	Three Tower	-55 °C	150 °C	200 V	Three Tower		1 V 150 A	Standard	Chassis Mount	150 A	200 mA 500 ns	25 µA
GeneSiC Semiconductor MURTA30060R	1 Pair Common Anode	Three Tower	-55 °C	150 °C	600 V	Three Tower	1.7 V		Standard	Chassis Mount	150 A	200 mA 500 ns	25 µA
