BHR-10 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER VERT 10POS 2.54MM

Part	Contact Finish Thickness - Post	Connector Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Style	Contact Material	Contact Type	Contact Finish - Post	Number of Positions	Contact Finish - Mating	Insulation Color	Features	Fastening Type	Termination	Number of Positions Loaded	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Insulation Material	Material Flammability Rating	Voltage Rating	Contact Shape	Mounting Type	Insulation Height	Insulation Height	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]

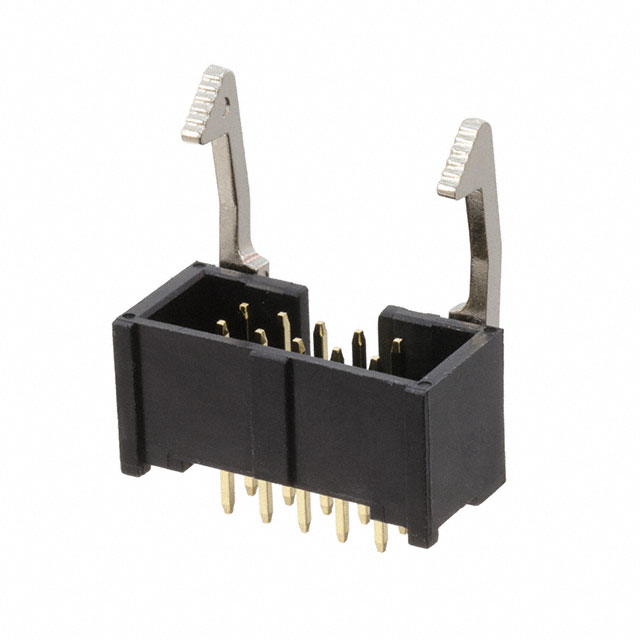

Adam Tech BHR-10-VUA-ML	Flash	Header	0.1 "	2.54 mm	-40 C	105 ░C	Flash	Board to Board Cable	Brass	Male Pin	Gold	10	Gold	Black	Keying Slot	Push-Pull	Solder	All	Shrouded - 4 Wall	0.1 in	2.54 mm	3 A	2	0.13 "	3.3 mm	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	250 VAC	Square	Through Hole	0.358 "	9.1 mm

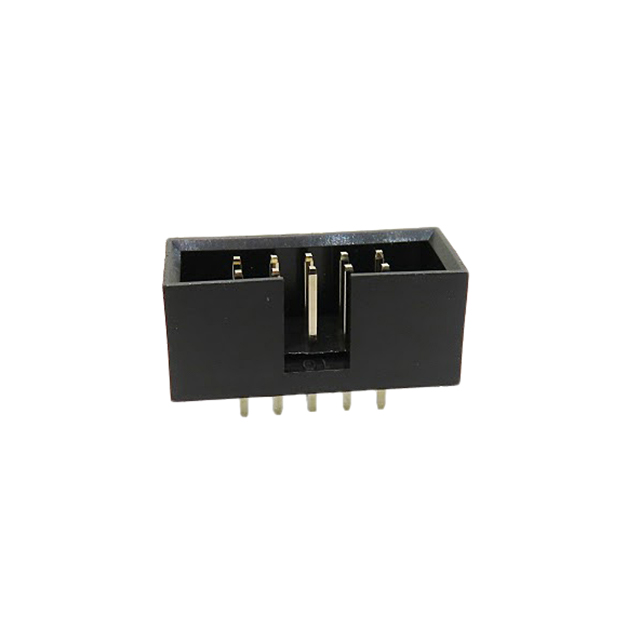

Adam Tech BHR-10-VUA	Flash	Header	0.1 "	2.54 mm	-55 C	105 ░C	Flash	Board to Board Cable	Brass	Male Pin	Gold	10	Gold	Black	Keying Slot Polarizing Key	Push-Pull	Solder	All	Shrouded - 4 Wall	0.1 in	2.54 mm	3 A	2	0.13 "	3.3 mm	Polybutylene Terephthalate (PBT)	UL94 V-0	250 VAC	Square	Through Hole	0.358 "	9.1 mm	8.8 mm	0.346 in

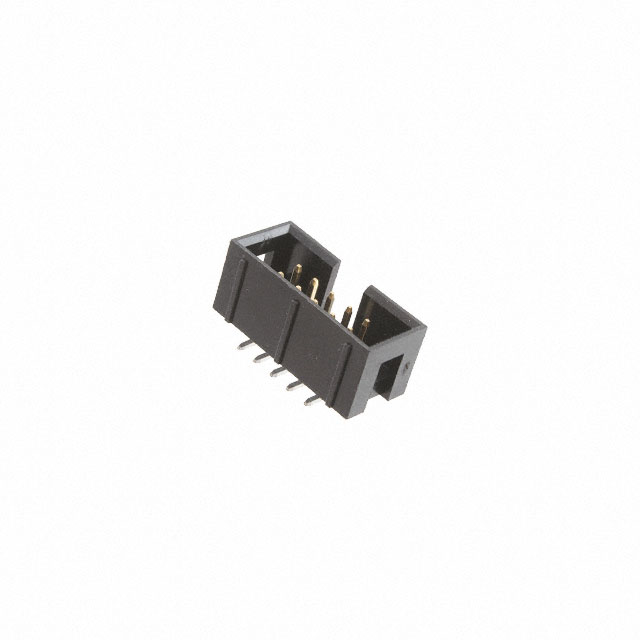

Adam Tech BHR-10-VSG-SMT		Header	0.1 "	2.54 mm	-40 C	105 ░C	Flash	Board to Board Cable	Brass	Male Pin	Tin	10	Gold	Black	Keying Slot	Push-Pull	Solder	All	Shrouded - 4 Wall	0.1 in	2.54 mm	3 A	2			Thermoplastic	UL94 V-0	250 VAC	Square	Surface Mount	0.413 in	10.49 mm

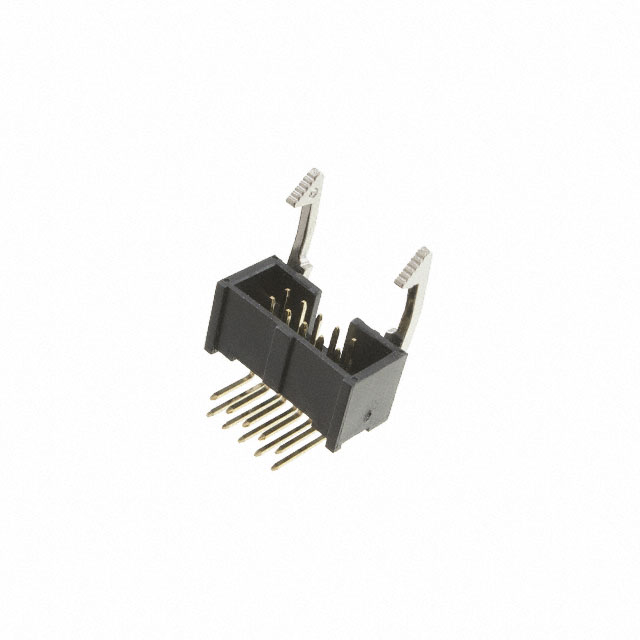

Adam Tech BHR-10-HUA-ML	Flash	Header	0.1 "	2.54 mm	-40 C	105 ░C	Flash	Board to Board Cable	Brass	Male Pin	Gold	10	Gold	Black	Keying Slot	Latch Lock/Eject Hooks Long	Solder	All	Shrouded - 4 Wall	0.1 in	2.54 mm	3 A	2			Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	350 VAC	Square	Right Angle Through Hole	0.354 in	9 mm			0.126 "	3.2 mm
