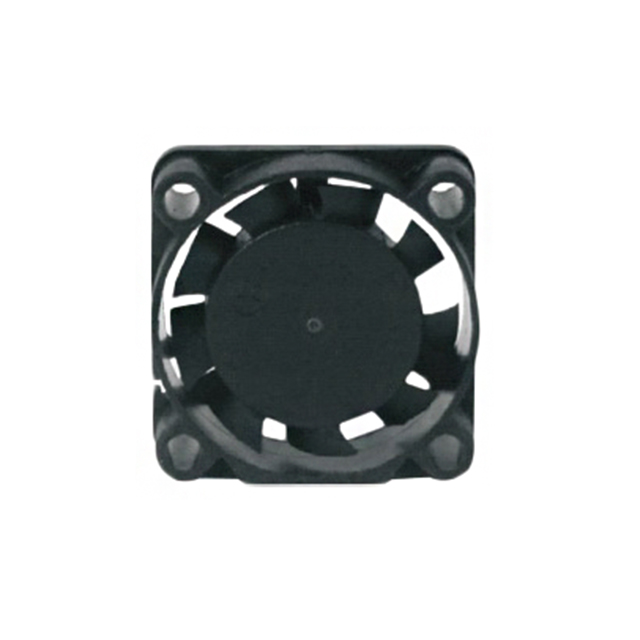

MS2507 Series

Catalog

FAN AXIAL 25X7.4MM SLEEVE 5VDC

Part	Material - Frame	Current Rating (Amps)	Material - Blade	Air Flow	Air Flow	Noise	Fan Type	Static Pressure	Static Pressure	Width [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Rated	Weight [custom]	Weight [custom]	Approval Agency	RPM	Bearing Type	Static Pressure	Features	Termination
Mechatronics Fan Group MS2507L05D-RSR	Plastic	110 mA	Plastic	1.2 CFM	0.034 m³/min	20 dB	Tubeaxial	0.09 in H2O	22.4 Pa	7.4 mm	25 mm	25 mm	5 V	4.99 g	0.011 lb	CE cUL TUV UL	7000 RPM	Sleeve
Mechatronics Fan Group MS2507H12D-RSR	Plastic	100 mA	Plastic	1.9 CFM	0.053 mł/min	28 dB	Tubeaxial		0.15 in H2O	7.4 mm	25 mm	25 mm	12 VDC	4.99 g	0.011 lb	CE cUL TUV UL	14000 RPM	Sleeve	37.4 Pa
Mechatronics Fan Group MS2507L05D1-RSR	Plastic	110 mA	Plastic	1.2 CFM	0.034 m³/min	20 dB	Tubeaxial	0.09 in H2O	22.4 Pa	7.4 mm	25 mm	25 mm	5 V	4.99 g	0.011 lb	CE cUL TUV UL	7000 RPM	Sleeve		Speed Sensor (Tach)	3 Wire Leads
Mechatronics Fan Group MS2507M12D-RSR	Plastic		Plastic			24 dB	Tubeaxial	0.12 in H2O	29.9 Pa	7.4 mm	25 mm	25 mm	12 VDC	4.99 g	0.011 lb	CE cUL TUV UL	10000 RPM	Sleeve
Mechatronics Fan Group MS2507H05D-RSR	Plastic	0.23 A	Plastic	1.9 CFM	0.053 mł/min	28 dB	Tubeaxial		0.15 in H2O	7.4 mm	25 mm	25 mm	5 V	4.99 g	0.011 lb	CE cUL TUV UL	14000 RPM	Sleeve	37.4 Pa
Mechatronics Fan Group MS2507M05D1+6-RSR	Plastic	0.17 A	Plastic			24 dB	Tubeaxial	0.12 in H2O	29.9 Pa	7.4 mm	25 mm	25 mm	5 V	4.99 g	0.011 lb	CE cUL TUV UL	10000 RPM	Sleeve		PWM Control Speed Sensor (Tach)	4 Wire Leads
Mechatronics Fan Group MS2507E12D1-RSR	Plastic		Plastic	2.8 CFM	0.078 mł/min	31 dB(A)	Tubeaxial	0.18 in H2O	44.8 Pa	7.4 mm	25 mm	25 mm	12 VDC	4.99 g	0.011 lb	CE cUL TUV UL	17000 RPM	Sleeve		Speed Sensor (Tach)	3 Wire Leads
Mechatronics Fan Group MS2507M05B2-RSR	Plastic	0.17 A	Plastic			24 dB	Tubeaxial	0.12 in H2O	29.9 Pa	7.4 mm	25 mm	25 mm	5 V	4.99 g	0.011 lb	CE cUL TUV UL	10000 RPM	Ball		Locked Rotor Sensor	3 Wire Leads
Mechatronics Fan Group MS2507M12B2-RSR	Plastic		Plastic			24 dB	Tubeaxial	0.12 in H2O	29.9 Pa	7.4 mm	25 mm	25 mm	12 VDC	4.99 g	0.011 lb	CE cUL TUV UL	10000 RPM	Ball		Locked Rotor Sensor	3 Wire Leads
Mechatronics Fan Group MS2507H05B2-RSR	Plastic	0.23 A	Plastic	1.9 CFM	0.053 mł/min	28 dB	Tubeaxial			7.4 mm	25 mm	25 mm	5 V	4.99 g	0.011 lb	CE cUL TUV UL	14000 RPM	Ball		Locked Rotor Sensor	3 Wire Leads
