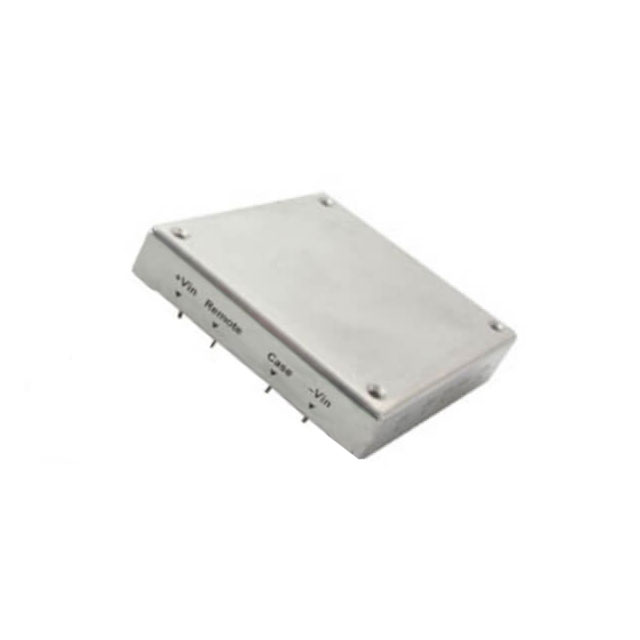

VHB75 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 48V 75W

Part	Voltage - Isolation	Type	Number of Outputs	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Approval Agency	Standard Number	Control Features	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Features	Applications	Voltage - Output 1	Mounting Type	Current - Output (Max) [Max]	Power (Watts)	Current - Output (Max)	Supplier Device Package
CUI Inc. VHB75W-Q48-S48	1.5 kV	Isolated Module	1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	75 V	18 V	EN UL	55032 Class A 60950-1 61000-3-2 61000-6-1 61000-6-2 61000-6-3	Active High Enable	9-DIP Module 1/2 Brick	-40 C	100 °C	84 %	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	48 V	Through Hole	1.56 A	75 W
CUI Inc. VHB75-D24-S24	1.5 kV	Isolated Module	1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	36 V	18 V	EN UL	55032 Class A 60950-1 61000-3-2 61000-6-1 61000-6-2 61000-6-3	Active High Enable	9-DIP Module 1/2 Brick	-40 C	100 °C	86 %	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	24 V	Through Hole	3.13 A	75 W
CUI Inc. VHB75-D12-S15	1.5 kV	Isolated Module	1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	18 V	9 V	EN UL	55032 Class A 60950-1 61000-3-2 61000-6-1 61000-6-2 61000-6-3	Active High Enable	9-DIP Module 1/2 Brick	-40 C	100 °C	84 %	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	15 V	Through Hole		75 W	5 A
CUI Inc. VHB75-D12-S3R3	1.5 kV	Isolated Module	1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	18 V	9 V	EN UL	55032 Class A 60950-1 61000-3-2 61000-6-1 61000-6-2 61000-6-3	Active High Enable	9-DIP Module 1/2 Brick	-40 C	100 °C	78 %	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	3.3 V	Through Hole	15 A	75 W
CUI Inc. VHB75-D24-S15	1.5 kV	Isolated Module	1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	36 V	18 V	EN UL	55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3	Active High Enable	9-DIP Module 1/2 Brick	-40 C	100 °C	85 %	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	15 V	Through Hole		75 W	5 A
CUI Inc. VHB75-D48-S2R5	1.5 kV	Isolated Module	1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	75 V	36 V	EN UL	55032 Class A 60950-1 61000-3-2 61000-6-1 61000-6-2 61000-6-3	Active High Enable	9-DIP Module	-40 C	100 °C	77 %	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	2.5 V	Through Hole	15 A	38 Watts		Half Brick
CUI Inc. VHB75-D24-S2R5	1.5 kV	Isolated Module	1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	36 V	18 V	EN UL	55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3	Active High Enable	9-DIP Module 1/2 Brick	-40 C	100 °C	77 %	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	2.5 V	Through Hole	15 A	75 W
CUI Inc. VHB75-D48-S12	1.5 kV	Isolated Module	1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	75 V	36 V	EN UL	55032 Class A 60950-1 61000-3-2 61000-6-1 61000-6-2 61000-6-3	Active High Enable	9-DIP Module	-40 C	100 °C	85 %	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	12 V	Through Hole	6.25 A	75 W		Half Brick
CUI Inc. VHB75W-Q24-S5	1.5 kV	Isolated Module	1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	36 V	9 V	EN UL	55032 Class A 60950-1 61000-3-2 61000-6-1 61000-6-2 61000-6-3	Active High Enable	9-DIP Module 1/2 Brick	-40 C	100 °C		OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	5 V	Through Hole	15 A	75 W
CUI Inc. VHB75-D12-S12	1.5 kV	Isolated Module	1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	18 V	9 V	EN UL	55032 Class A 60950-1 61000-3-2 61000-6-1 61000-6-2 61000-6-3	Active High Enable	9-DIP Module 1/2 Brick	-40 C	100 °C	84 %	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	12 V	Through Hole	6.25 A	75 W
