6135.0140 Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Current Rating - Circuit Breaker	Connector Type	Termination	Termination	Termination	Current Rating - Appliance Inlet	Ingress Protection	Connector Style	Voltage Rating - Appliance Inlet	Mounting Type	Filter Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Material Flammability Rating	Switch Features	Panel Thickness	Panel Thickness
SCHURTER Inc. 6135.0140.0410	10 A	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "	10 A	IP40	IEC 320-C14	250 VAC	Panel Mount Snap-In	Unfiltered - Commercial	27.4 mm	59 mm	CCC cULus ENEC	UL94 V-0	Circuit Breaker Illuminated Switch On-Off	0.098 in	2.5 mm

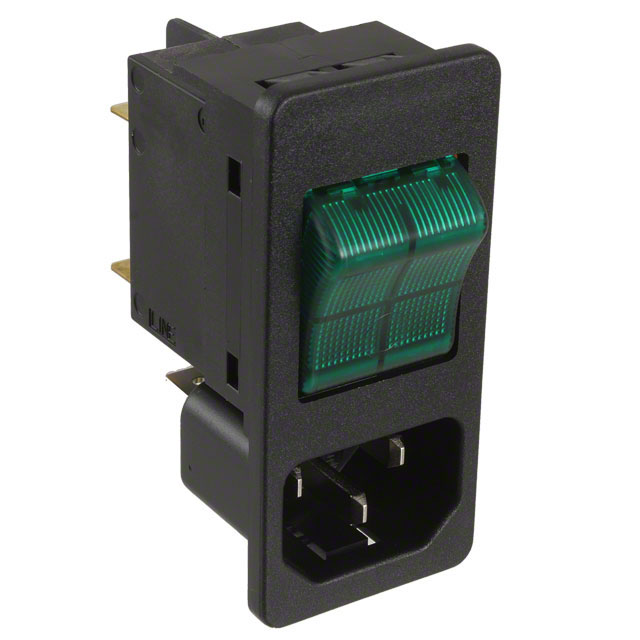

SCHURTER Inc. 6135.0140.0210	10 A	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "	10 A	IP40	IEC 320-C14	250 VAC	Panel Mount Snap-In	Unfiltered - Commercial	27.4 mm	59 mm	CCC cULus ENEC	UL94 V-0	Circuit Breaker Illuminated Switch On-Off	0.059 in	1.5 mm
SCHURTER Inc. 6135.0140.0310	10 A	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "	10 A	IP40	IEC 320-C14	250 VAC	Panel Mount Snap-In	Unfiltered - Commercial	27.4 mm	59 mm	CCC cULus ENEC	UL94 V-0	Circuit Breaker Illuminated Switch On-Off	0.079 in	2 mm
